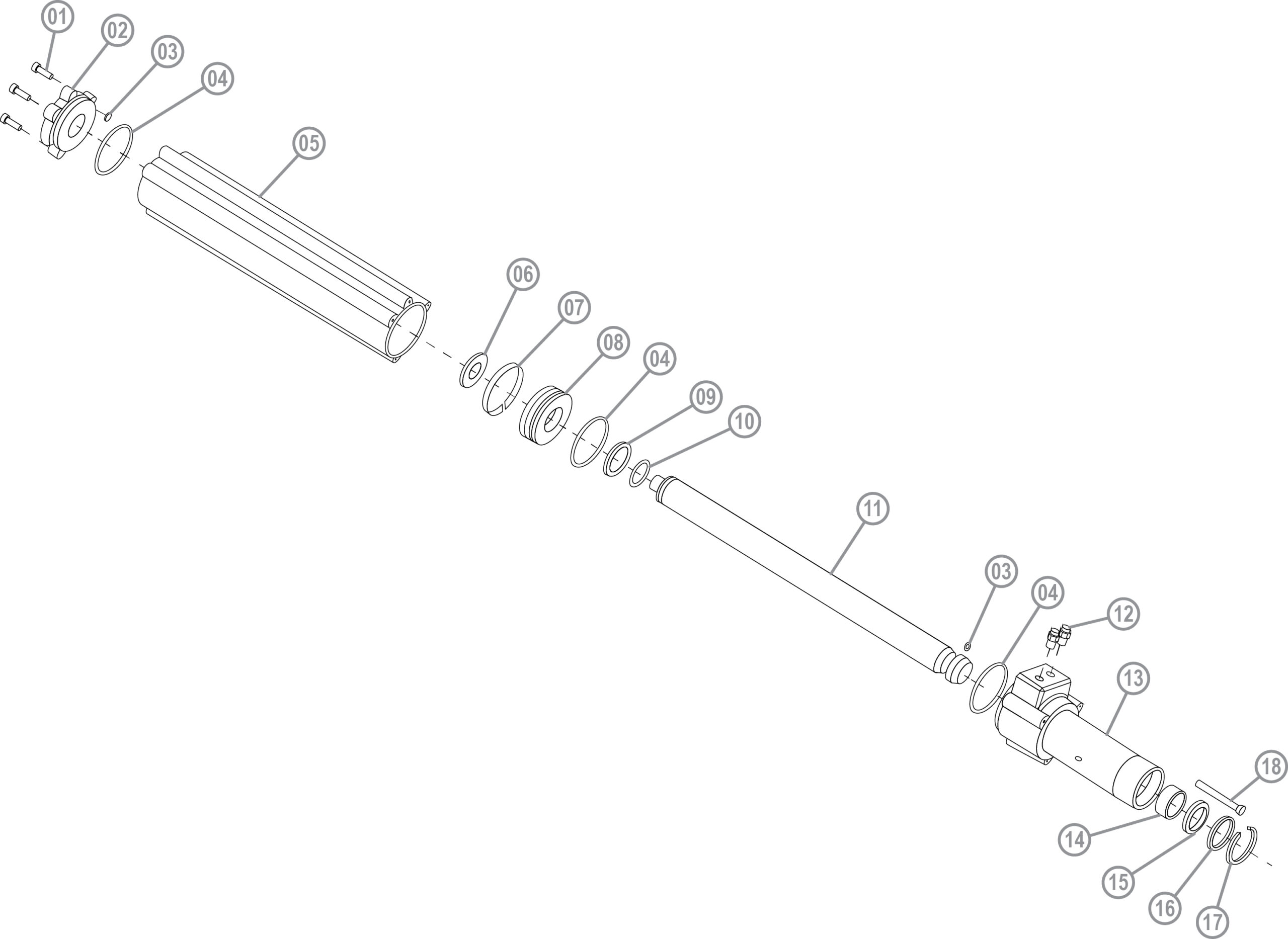

Parts for Coats® Model 80/90C Center Clamp® Tire Changer (Robo-Arm Cylinder Assembly)
Add toQuote
Add toOrder
Item
SVI Part #
OEM #
Description
QTY
1
BW-2582-54
85608254
Socket Head Cap Screw, M6-1 x 20mm
1
2
BW-2581-26
85608126
2.5” Cylinder Top Cap
1
3
BW-2581-41
85608141
6mm (2-010) Seal-O-Ring
1
4
BW-2581-42
85608142
56mm Seal-O-Ring
1
5
BW-2551-02
8560845102
2.5” Cylinder Sleeve
1
6
BW-2576-61
85607661
Robo-Arm Cushion
1
7
BW-2581-48
85608148
63mm Nylinder Sleeve
1
8
BW-2591-67
85609185
2.5-inch Piston O-Ring
1
9
BW-2576-58
85607658
Robo-Arm Cushion
1
10
BW-2584-38
85608438
32mm O-Ring
1
11
BW-2547-02
8560814702
32mm Piston Shaft
1
13
BW-2588-55
85608855
2.5” Cylinder Bottom Cap
1
14
BW-2583-96
85608396
1.25 x 0.625 Nylinder Sleeve
1
15
BW-2584-19
85608419
1.25” Wiper Seal
1
16
BW-2589-08
85608908
Spacer
1
17
BW-2589-07
85608907
Snap Ring
1
18
BW-2582-56
85608256
Socket Head Cap Screw, M6-1 x 60mm
1
