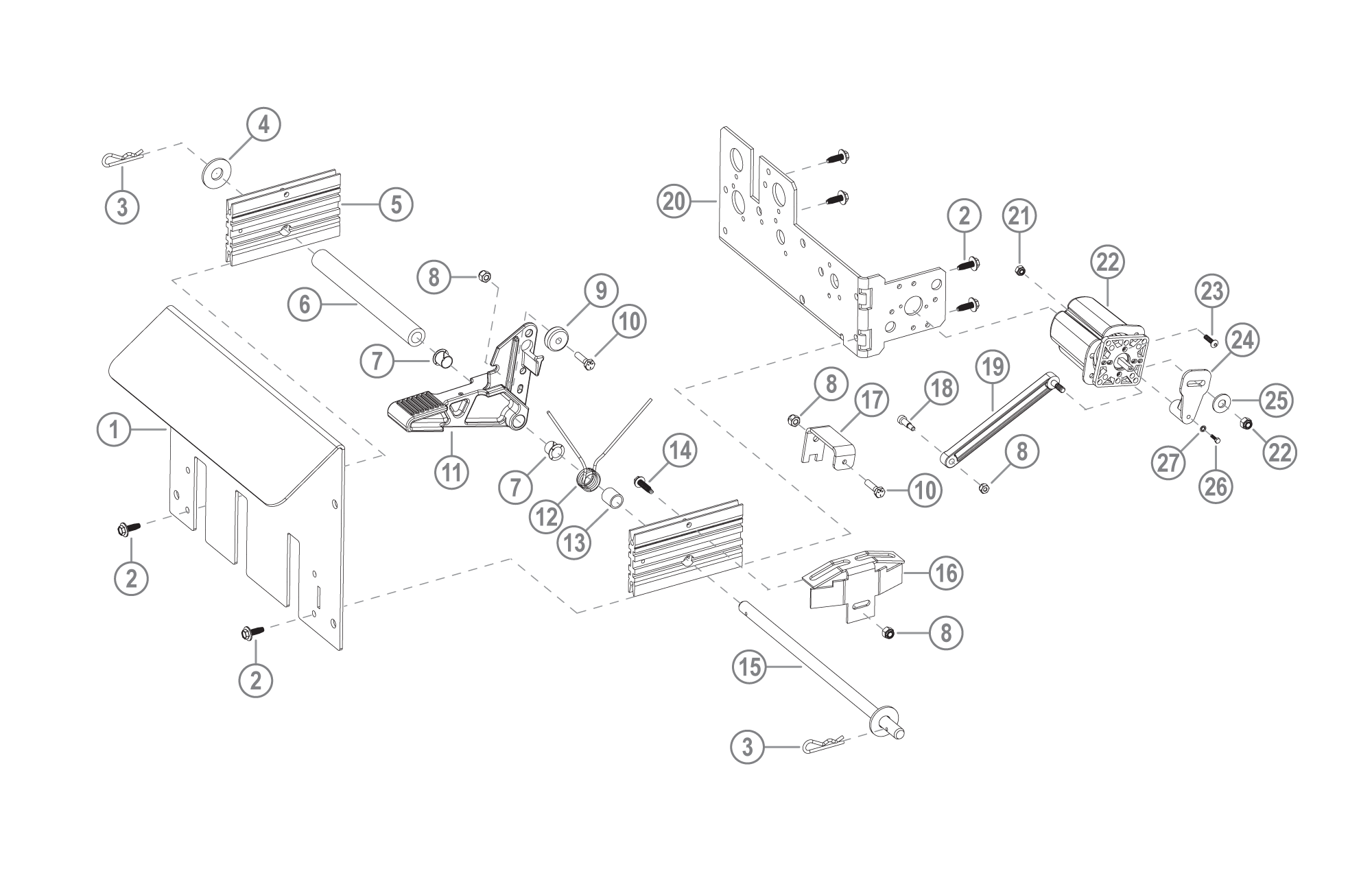

Parts for Coats® Model 80/90C Center Clamp® Tire Changer (Electric Foot Pedal Assembly)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
BW-1223-32
8182332
Guard-Foot Pedal
1
View
2
F-PH-0250-20-1000
8106301
1/4” Hex Head Self Tap Screw
3
View
3
BW-1674-19
8107419
Hair Pin Cotter
2
View
4
BW-2011-21
8301121
Washer
1
5
BW-1219-18
8181918
Valve Bracket Spacer Bar
1
View
6
BW-2900-56
85611913
Pedal Spacer
1
7
BW-1219-48
8181948
1/2” Nylinder Bearing
2
View
8
BW-1213-69
8181369
Lock Nut, 1/4-20
3
View
9
BW-1219-23
8181923
Stop Washer
1
View
10
BW-1219-84
8181984
Hex Head Cap Screw, 1/4-20 x 1”
1
View
11
BW-1216-75
8181675
Foot Pedal
1
View
12
BW-1217-07
8181707
TD208:D210orsion Spring
1
View
13
BW-1218-72
8181872
Torsion Spring Sleeve
1
View
14
BW-1649-45
8104945
Fastener,1/4 x 1
1
View
15
BW-1233-98
8183398
Pedal Shaft
1
View
16
BW-2900-57
818267004
Spring Stop Bracket
1
17
BW-2900-58
818236302
Spacer - Sw Pedal Lever-Red
1
18
BW-1227-43
8182743
Shoulder Screw - 5/16
1
View
19
BW-1216-99
8181699
Lever-Switch
1
View
20
BW-2599-85
85009985
Valve Mounting Bracket
1
21
BW-1226-82
8182682
10-24 Nylon Insert Lock Nut
2
View
22A
BW-2900-59
85610895
Switch
1
22B
BW-2900-60
81837331
Switch, 110V
1
23
BW-1219-83
8181983
Button Head Socket Cap Screw 10-24 x 5/8
1
View
24
BW-1217-28
8181728
Switch Actuator Lever
1
View
25
BW-1676-35
8107635
5/16” Flat Washer
1
View
26
BW-1219-82
8181982
Hex Head Cap Screw, 3mm x 0.5 x 12mm
1
View
27
BW-2010-72
8301072
#6 Internal Tooth Lk Washer
1
