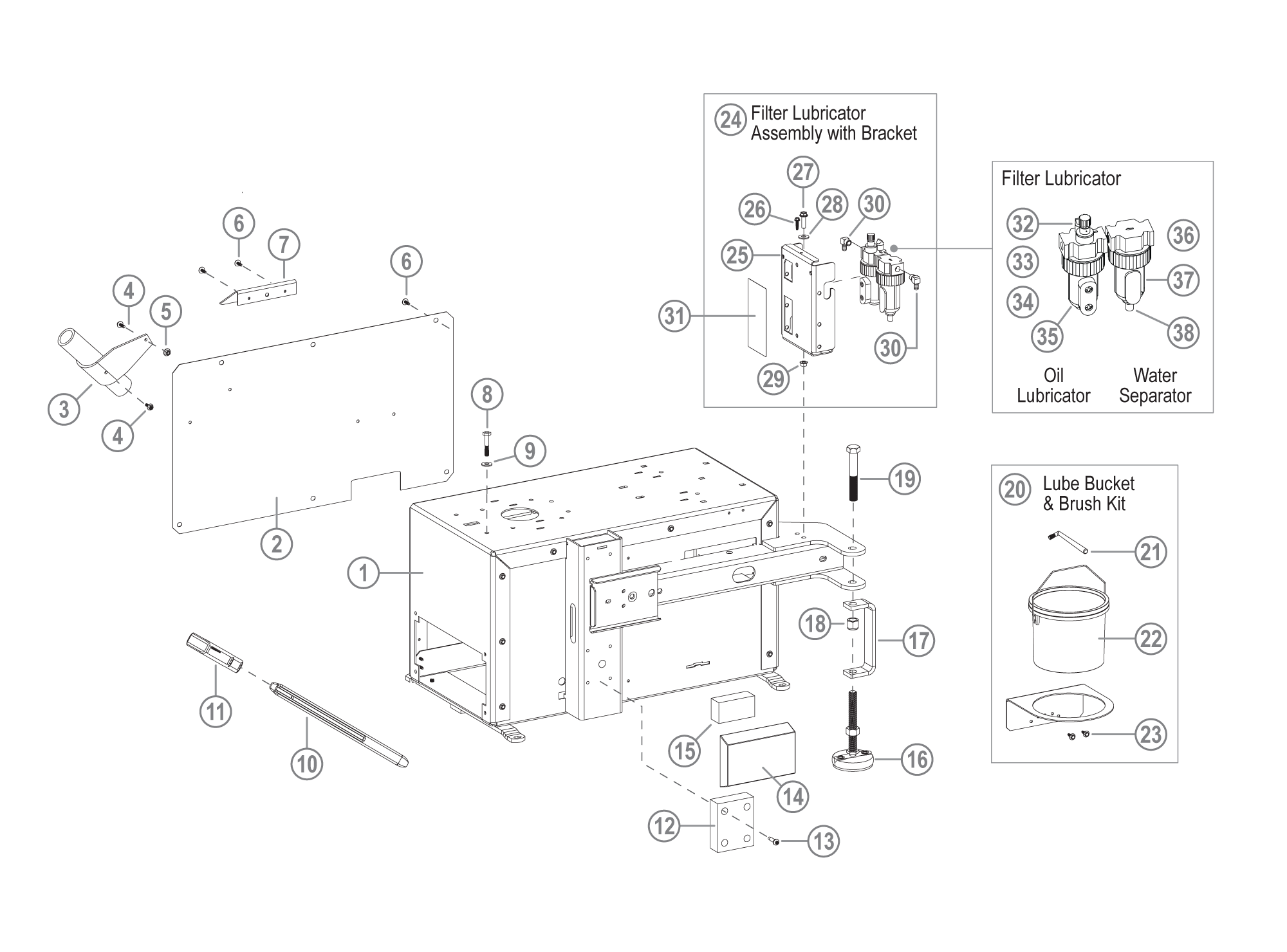

Parts for Coats® Model 80/90C Center Clamp® Tire Changer (Chassis System)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
BW-2900-38
85611901
Chassis
1

2
8182807
Metal Side Panel
1

3
BW-2900-39
85611934
Tool Holder Bracket
1

4
8143168
Whiz Lock Screw, 1/4-20 x 3/4
1

5
8143169
Whiz Lock Nut, 1/4-20
1

6
8106301
1/4” Hex Head Self Tap Screw
1

7
8182811
Inflation Pedal Cover
1

8
8182040
Hex Head Cap Screw, M10-1.5 x 55mm
1

9
BW-2010-32
8301032
3/8" Flat Washer, Zinc Plate
1

10
8181354
Bead Lifting Tool
1

11
85000783
Bootie Tool
1

12
8181851
Bead Breaker Pad
1

13
8182088
Button Head Screw, 5/16-18 x 1-1/4
1

14
8181855
Large Center Rubber Pad
1

15
BW-2900-40
85611898
Bead Breaker Pad
1

16
BW-2900-41
85609979
3/4-10 THD Swivel Leveling
1

17
BW-2900-42
85609978
Foot Bracket
1

18
8182016
Nylon Insert Lock Nut, 3/4”-10
1

19
8182579
Hex Head Cap Screw
1

20
BW-2590-48
85009048
Lube Bucket Bracket & Brush Kit
1

21
85000850
Tire Paste Brush
1

23
BW-2900-43
81837101
Universal Mounting Paste
1

24
8183938
Filter/Lubricator Assembly w/Bracket
1

25
8183770
Filter/Lube Bracket
1

26
BW-2900-44
85608367
Self Tap Hex Washer Head Screw, 1/4-20 x 1
1

28
BW-2900-45
7110070
Whiz Bolt, 3/8-16 x 0.250
1

29
8106303
Whiz Lock Nut, 3/8"-16
1

31
8184256
Fitting 1/4 NPT
1

31
BW-2900-46
85610370
Maintenance Decal
1

32
BW-2900-47
8183940
Sight Dome and Fill Cap
1

33
8183939
Sight Dome w/Bracket
1

34
BW-2900-48
8183358
Micro Mist Kit w/O-ring
1

35
8183361
Oiler Bowl for Lubricator
1

36
BW-2900-49
8183359
Filter Element
1

37
BW-2900-50
8183360
Water Bowl with Twist Drain
1

38
BW-2900-51
8183315
Auto Drain w/Nut
1
