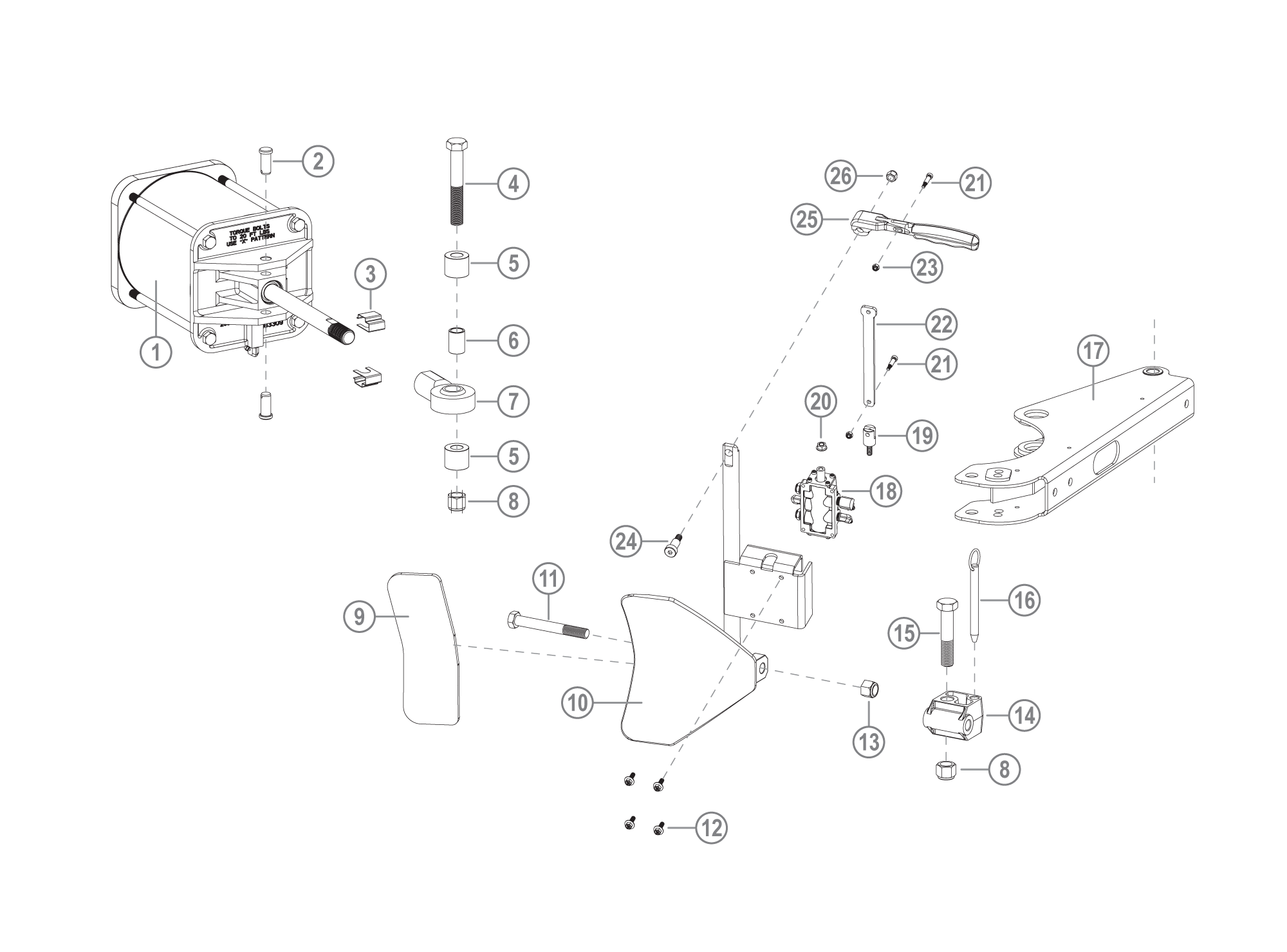

Parts for Coats® Model 80/90C Center Clamp® Tire Changer (BL Arm Assembly)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY
Notes

1
BW-2900-52
8183312-5
Bead Breaker Cylinder, 3/8” Fitting
1

2
8181949
Clevis Pin, 5/8 x 1-3/8
1

3
8181912
Clevis Clip
1

4
8182579
Hex Head Cap Screw
1

5
BW-2585-67
85608567
Spacer
2

6
BW-2585-66
85608566
Spacer
1

7
BW-2585-69
85608569
Heim Joint
1

8
8182016
Nylon Insert Lock Nut, 3/4”-10
2

9
8183606
Bead Breaker Shoe Sock (2 Pk)
1

10
BW-2580-38
85608038
Bead Breaker Shoe, Handle & Pivot
1

11
8182011
Hex Head Cap Screw, 5/8-11 x 5”
1

12
8143168
Whiz Lock Screw, 1/4-20 x 3/4
1

13
8182043
Nylon Insert Lock Nut, 5/8-11
1

14
8181951
Bead Breaker Shoe Bracket
1

15
8182009
Hex Head Cap Screw, 3/4-10 x 3 3/4”
1

16
8120326
1/2” Hitch Pin
1

17
8182002
Bead Breaker Arm
1

18
85608033
Bead Breaker Arm Valve Assembly
1

19
BW-2900-53
85611516
Bead Breaker Coupling-Handle
1

20
818217
Hex. Whiz Lock Nut, 8 5/16-18
1

21
925757
Hex Head Cap Screw, 10/24 x 1”
2

22
BW-2900-54
85611517
Bead Breaker Lever Link
1

23
8182682
Nylon Insert Lock Nut, 10-24
1

24
BW-1255-58
8185558
Shoulder Screw
1

25
85610228
Bead Breaker Lever Assembly
1

26
BW-2900-55
830103
5 3/8-16 Hex Nyloc Nut
1
