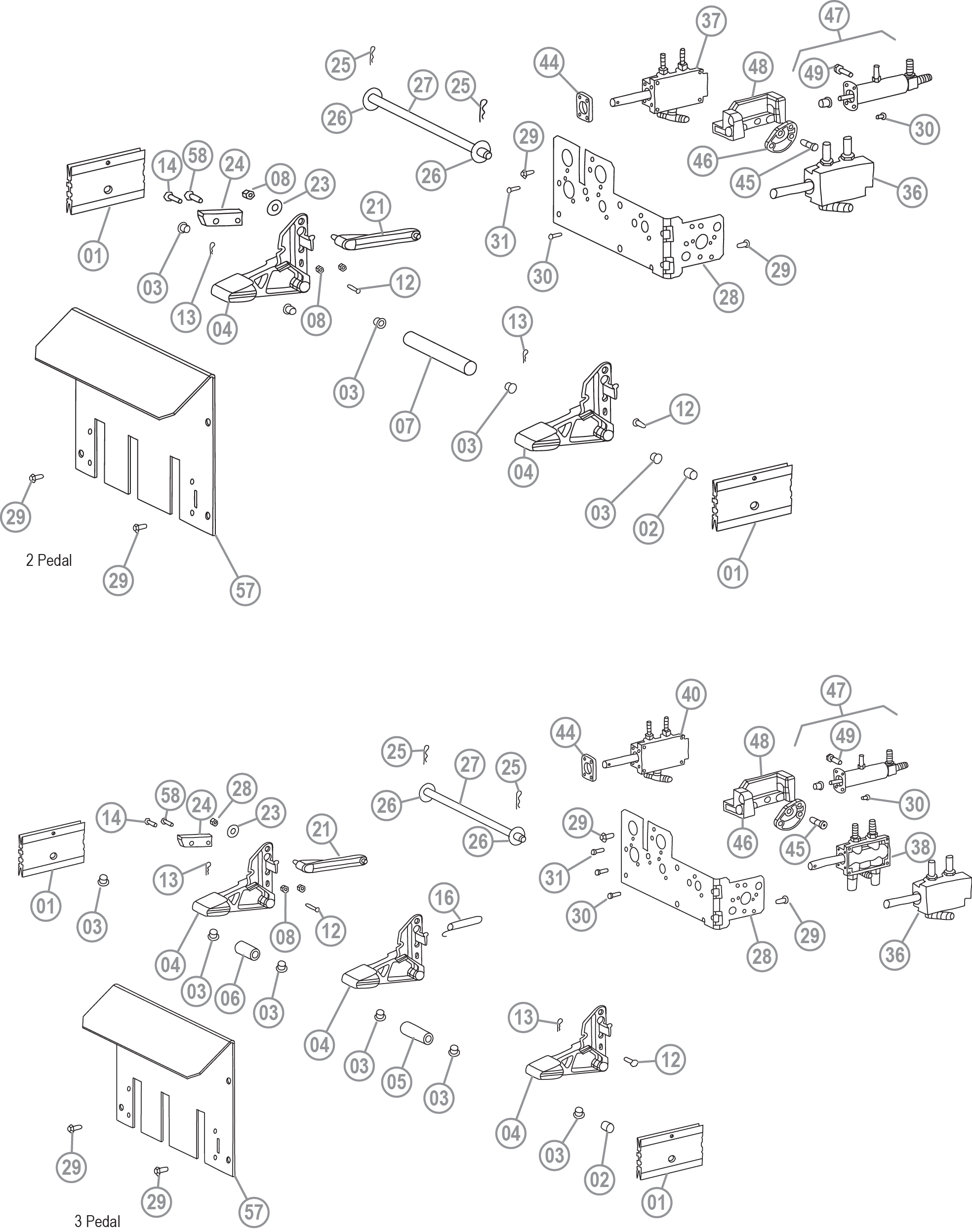

Parts for Coats® 50/60/70/80/90 X-Model Series (Foot Pedal Assembly – Air)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BW-1219-18
8181918
Bar-Valve Brkt. Spacer
View
2
BW-1218-72
8181872
Torsion Spring Sleeve
View
3
BW-1219-48
8181948
1/2” Nylinder Bearing
View
4
BW-1216-75
8181675
Standard Pedal
View
5
BW-1223-27
8182327
Pedal Spacer
View
6
BW-1219-11
8181911
Pedal Spacer
View
7
BW-1223-58
8182358
Pedal Spacer
View
8
BW-1213-69
8181369
1/4-20 Lock Nut, Nyl. Ins. Gr.5
View
12
BW-1219-77
8181977
3/16” x 1-1/2” Clevis Pin
View
13
BW-2504-69
8120469
Hair Pin Cotter
View
14
BW-1219-84
8181984
1/4-20 x 1” Hx.Hd.Cp.Scr., Gr.5
View
16
BW-1217-08
8181708
Pedal Extension Spring
View
21
BW-2500-38
85010038
Cam Lever Follower
23
BW-1676-35
8107635
5/16” Flat Washer
View
24
BW-2581-97
85608197
Stop-Pedal
25
BW-1674-19
8107419
Hair Pin Cotter
View
26
BW-2011-21
8301121
Washer
27
BW-1233-98
8183398
Pedal Shaft
View
28
BW-2599-85
85009985
Valve Mounting Bracket
29
BW-1663-01
8106301
1/4” Hex Hd Self Tap Screw, Gr.5
View
30
BW-1219-89
8181989
10-24 x 3/8 SHCS, Gr.8
View
31
BW-1220-01
8182001
10-24 x 3/4 SHCS
View
36
BW-1220-66
8182066
Valve Assembly
37
BW-1236-91
85600262
Valve Assembly
View
38
BW-1225-88
8182588
Valve Assembly
40
BW-2502-63
85600263
Valve Assembly
44
BW-2599-82
85009982
Spacer-Valve, Clamp, TT
45
BW-2053-71
83015371
5/16-18 x 1/2 SHSHS Screw
46
BW-2581-95
85608195
Pivot Link
47
BW-1246-75
8184675
Oil Injector Assembly
View
48
BW-2585-60
85608560
Block-Lower Stop Pedal
49
BW-1637-37
8103737
Release Valve
View
57
BW-1223-32
8182332
Foot Pedal Guard
View
58
BW-1664-55
8106455
Clevis Pin
View
