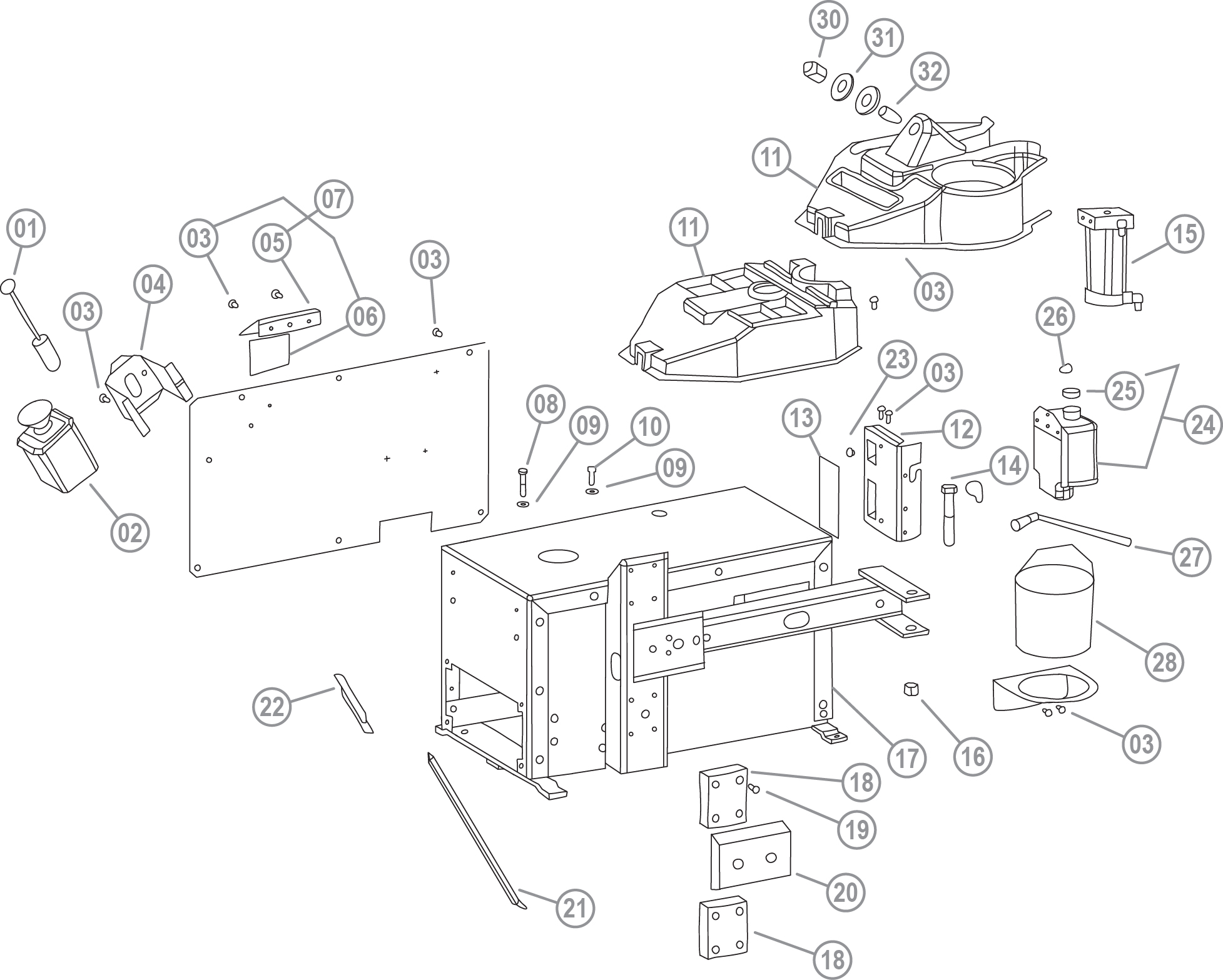

Parts for Coats® 50/60/70/80/90 X-Model Series (Chassis System)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
8000491
Swab for All Cntr Posts & Rim Clmps

2
8106259
Straight Mouth Lube Bucket

3
8106301
Screw HWHST 1/4-20 x 3/4

4
8182809
Lube Bottle Bracket

5
8182811
Inflation Pedal Cover

6
8181285
Decal - Inflation Pedal

7
BW-2575-85
85607585
Metal Side Panel

8
8182040
M10-1.5 x 55MM Hex Hd.Cap Scr, Gr.8.8

9
BW-2010-32
8301032
3/8 Flat Washer, Zinc Plate

10
8107715
HHCS 3/8-16 x 1-1/4”

11
8181964
Plastic Accessory Tray

12
8183770
Lubricator Bracket

13
8183778
Lubrication Notice Decal

14
BW-2585-82
85608582
3/4 x 3-1/2 SHSHS Screw

15
BW-2597-66
85609766
Water Separator Assy (Air Motor Machines Only)

16
BW-2500-55
8120055
5/8-11 Hex Nut

17
8182041
Chassis

18
8181851
Pad for Bead Breaker

19
8182088
5/16 x 1 Button Head Screw

20
8181855
Large Center Rubber Pad

21
8181354
Bead Lifting Tool for Rim Clamps

22
85000783
Lift Tool Sock 10 Pk RC TC

23
BW-2547-24
924724
312-18 Hex Flange Nut

24
8185629
Tank Reservoir

25
BW-1263-01
81856301
Tank Reservoir Cap

26
8183452
Screw

27
85000850
Angled Applicator Brush

28
8183710
Universal Mounting Paste

29
BW-2590-48
85009048
Lube Bucket Bracket & Brush Kit

30
BW-2588-94
85608894
Inflation Nozzle Cone

31
BW-2506-93
85610693
Washer

32
8104573
3/4” Straight Fitting

Plastic Accessory Tray for Air Nozzle

Bootie Tool
