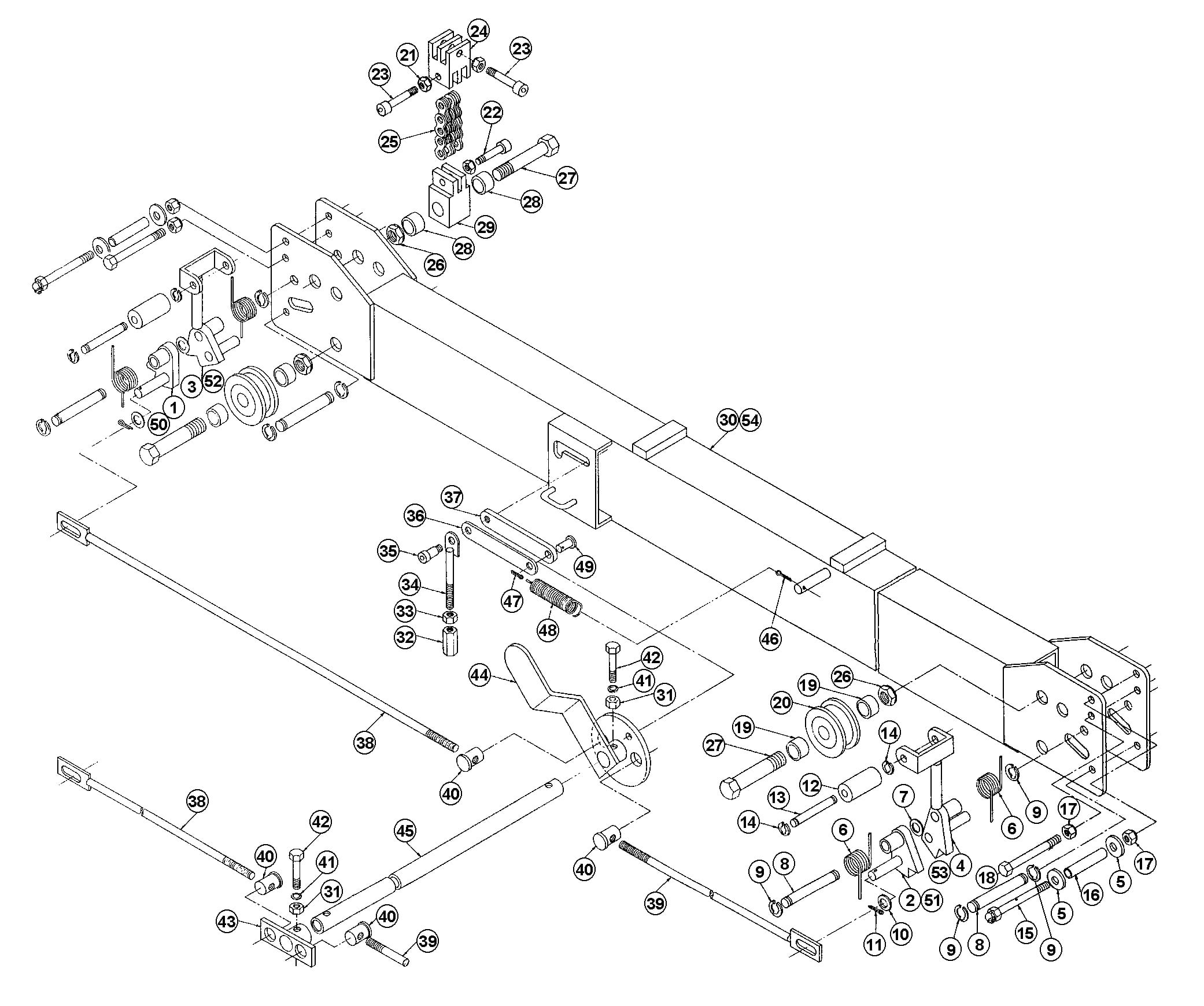

Parts for Challenger 24009 Front Cross Tube Assembly

Above Ground / Surface Mount 4-Post Lifts – Challenger – 24009

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Also see these additional breakdowns for Challenger Lifts 24009:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
81068
1
Latch Catch LH

2
81069
1
Latch Catch RH

3
81074
1
Slack Cable Latch LH

4
81075
1
Slack Cable Latch RH

5
81206
4
Washer

6
81072
4
Safety Latch Spring

7
CP-1597
2
Flat Washer 13 Ga. 5/8"

8
81073
4
Shaft

9
81250
8
Retaining Ring 5/8

10
CP-8515
2
Flat Washer 16 Ga. 1/2"

11
CP-2563
2
Cotter Pin 1/8 x 3/4

12
81079
2
Roller

13
81080
2
Shaft

14
80683
4
Retaining Ring

15
81479
2
4" Greaseable Bolt

16
81176
2
Tube Spacer

17
81082
4
Nylock Nut

18
81081
2
HHCS 3/8-16x4"

19
81067
4
Spacer

20
80028
2
2-3/4" Chain Roller 3/4" Bore

21
80064
3
Nylock Nut

22
81185
1
5/16-18NC x 1-3/4 Socket Head

23
80756
2
5/16-18 NC x 2 Socket Head

24
81086
1
Upper Chain Retainer

25
81085
1
Chain Extension

26
80034
3
Nylock Nut

27
80033
3
Pin

28
81084
2
Spacer

29
81083
1
Lower Chain Retainer

30
81122
1
Front Cross Tube Structure

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
