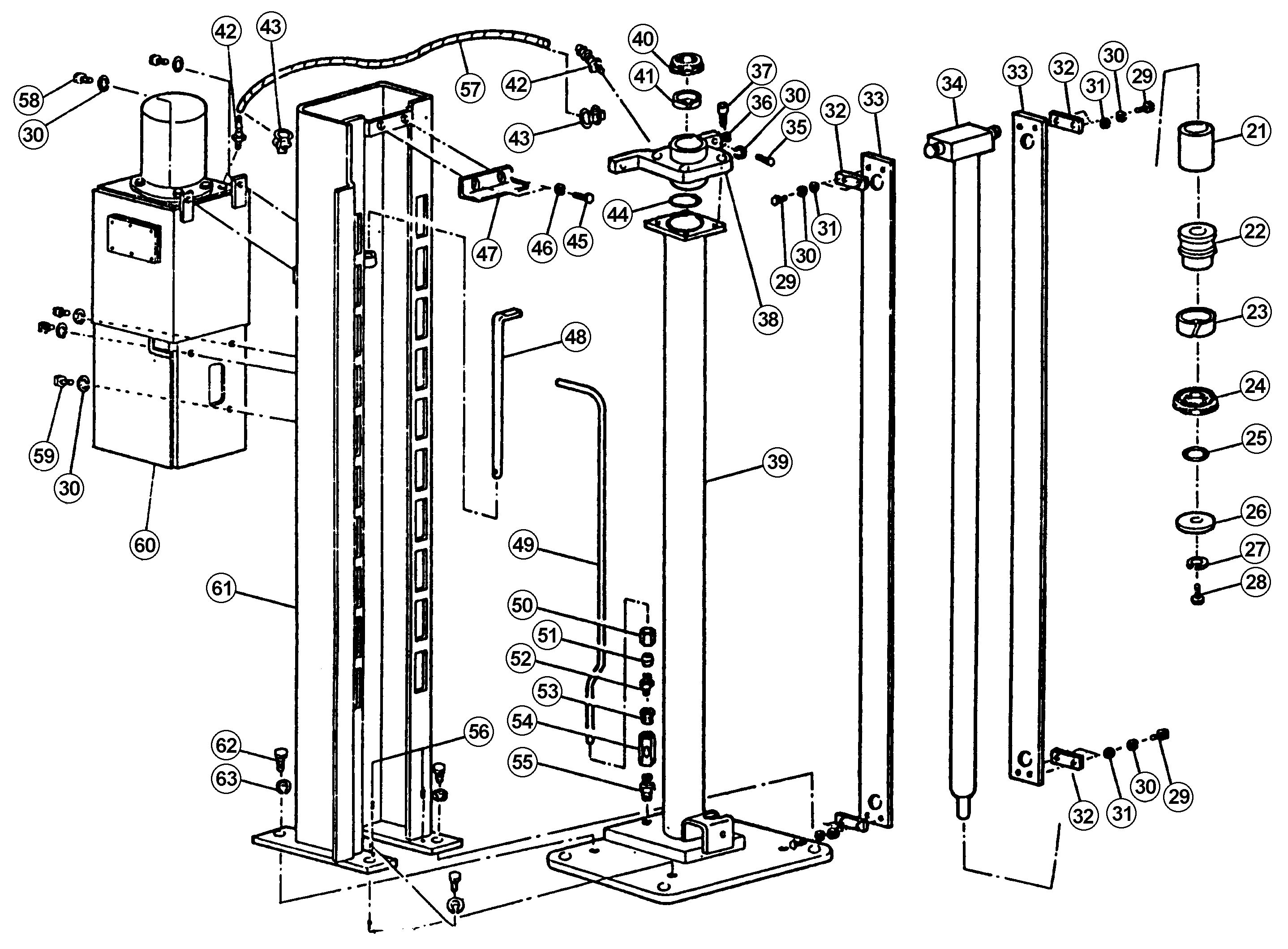

Parts for Benwil FP-7XS Column and Cylinder Assembly

Above Ground / Surface Mount 4-Post Lifts – Benwil – FP-7XS

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

21
Request Details
10210382
1
Piston Rod Spacer
22
BH-7212-029
10210361
1
Piston
View
23
BH-7212-030
80804064
1
Wearing
View
24
BH-7212-031
50610361
1
Cylinder Packing
View
25
BH-7212-032
80800024
1
O-Ring
View
26
BH-7212-033
10210391
1
Piston Washer
View
27
BH-7224-59
90930412
1
Spring Washer
28
Request Details
90901225
1
Hex Bolt
29
BH-7215-53
90910812
8
Hex Bolt
View
30
BH-7215-74
90930508
15
Spring Washer
View
31
BH-7224-100
90930708
8
Plain Washer
32
BH-7212-039
10210401
4
Key Plate
View
33
BH-7212-040
10210371
2
Lift Plate
View
34
BH-7212-041
00070061
1
Piston Rod
View
35
BH-7224-44
90910830
2
Hex Bolt
36
Request Details
90930410
4
Spring Washer
37
Request Details
90921040
4
Socket Head Cap Bolt
38
BH-7212-047
10210352
1
Cylinder Cover
View
39
BH-7212-048
00070041
1
Cylinder
View
40
BH-7212-042
80807050
1
Wiper Ring
View
41
BH-7212-043
80804050
1
Wearing
View
42
BH-7212-064
80812102
2
Joint
View
43
Request Details
80825112
2
Wire Hose Band
44
Request Details
80800131
1
O-Ring
45
BH-7204-053
90911015
2
Hex Bolt
View
46
Request Details
90930710
2
Plain Washer
47
Request Details
10210061
1
Releasing Angle
48
BH-7212-053
10210721
1
Limit Bar
View
49
BH-7212-052
10215011
1
Pressure Pipe A
View
50
BH-7212-054
80813610
1
Nut
View
51
BH-7212-055
80814710
1
Sleeve
View
52
BH-7212-056
80814910
1
Connector
View
53
Request Details
80814423
1
Bushing
54
BH-7211-61
80818540
1
In-Line Chk. Valve
View
55
Request Details
80814501
1
Nipple
56
Request Details
90961015
4
Socket Head Cap Bolt
57
Request Details
50618011
1
Flex. Hose
58
Request Details
90910820
2
Hex Bolt
59
BH-7224-104
90910815
3
Hex Bolt
60
N/A
1
Hydraulic Unit Assembly
61
Request Details
00070022
1
Driver Post
62
Request Details
90911225
4
Hex Bolt
63
Request Details
90930512
4
Spring Washer
