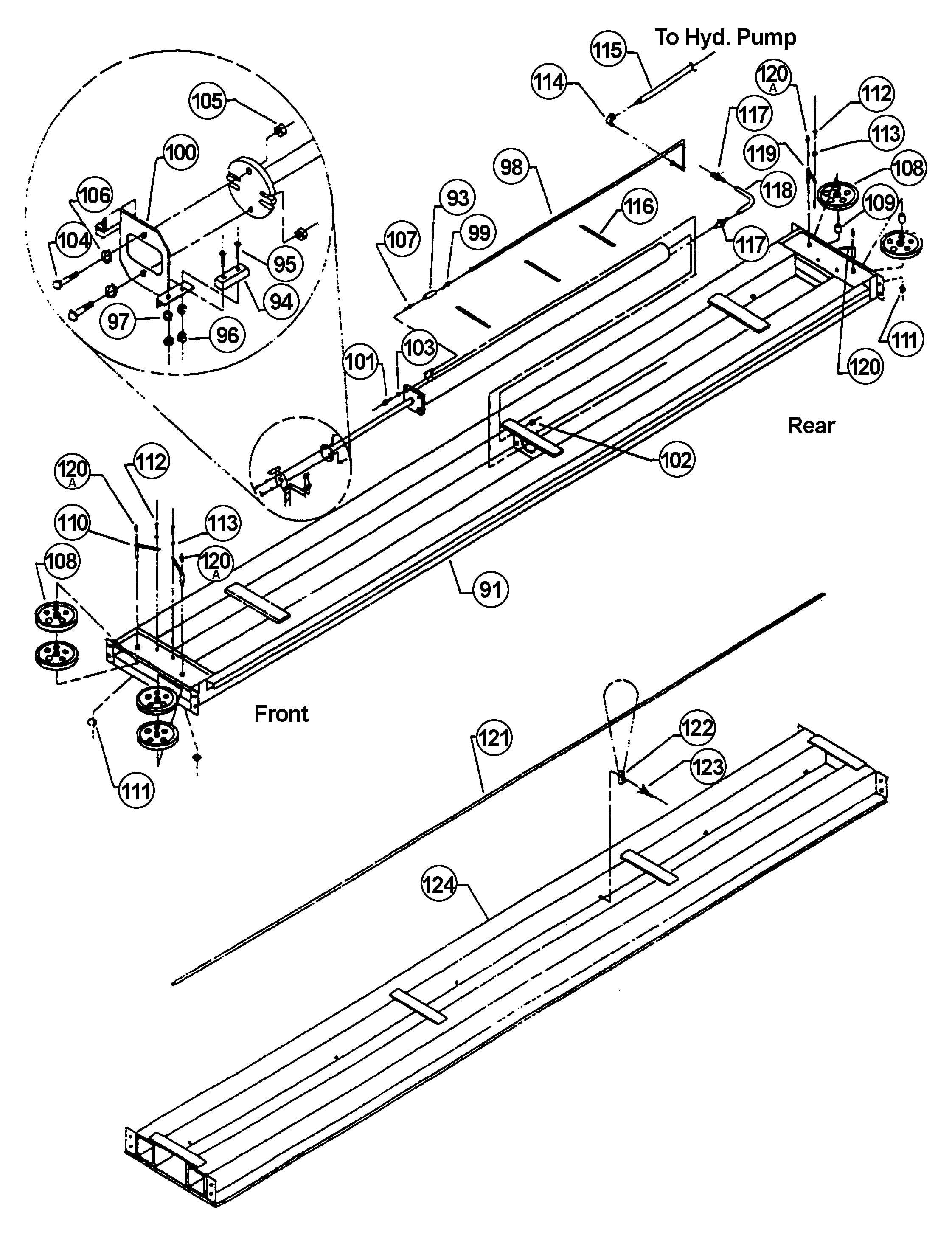

Parts for Benwil FP-12G Runway Assembly

Above Ground / Surface Mount 4-Post Lifts – Benwil – FP-12G

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

91
Request Details
500020
1
Runway Assembly

92
500214
1
Hydraulic Cylinder

93
500354
1
Flow Control

94
500191
2
Plastic Slide

95
4
10-24 x 3/4" Phil. Flat Hd. Screw

96
4
10-24 Hex Head Nut

97
4
3/16" Split Lock Washer

98
Request Details
500055
1
Hydraulic Line

99
500390
1
Male Connector

100
500193
1
Plate Assembly

101
4
3/8"-16 x 1-3/4" Hex Head Bolt

102
4
3/8"-16 Hex Nut

103
4
3/8" Split Lock Washer

104
2
5/16"-18 x 1-3/4" Hex Head Bolt

105
2
5/16"-18 Hex Nut

106
2
5/16" Split Lock Washer

107
500389
1
Pipe Nipple

108
500333
6
Sheave

109
500161-2
2
Spacer

110
500942
2
Axle-Sheave

111
300218-3
4
Snap Ring

112
4
1/4"-20 x 1/2"Hex Head Bolt

113
4
1/4" Split Lock Washer

114
500391
1
90° Elbow

115
500063
1
Hydraulic Hose, 88"

116
Request Details
3
8" Cable Ties

117
500928
2
Male Pipe

118
Request Details
500399-17
1
Rubber Hose

119
500941
1
Axle-Sheave

120
500943
1
Axle-Sheave

120A
1102K11
4
Grease Fitting

121*
See Tube Book
500415-5
1
Polyethylene Tube

122
Request Details
500402
6
Nylon Clamp Cable

123
Request Details
500401
6
Push Rivet

124
Request Details
500023
1
Runway Assembly

* See SVI's Air Line Tubing & Push-On Fittings Book

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
