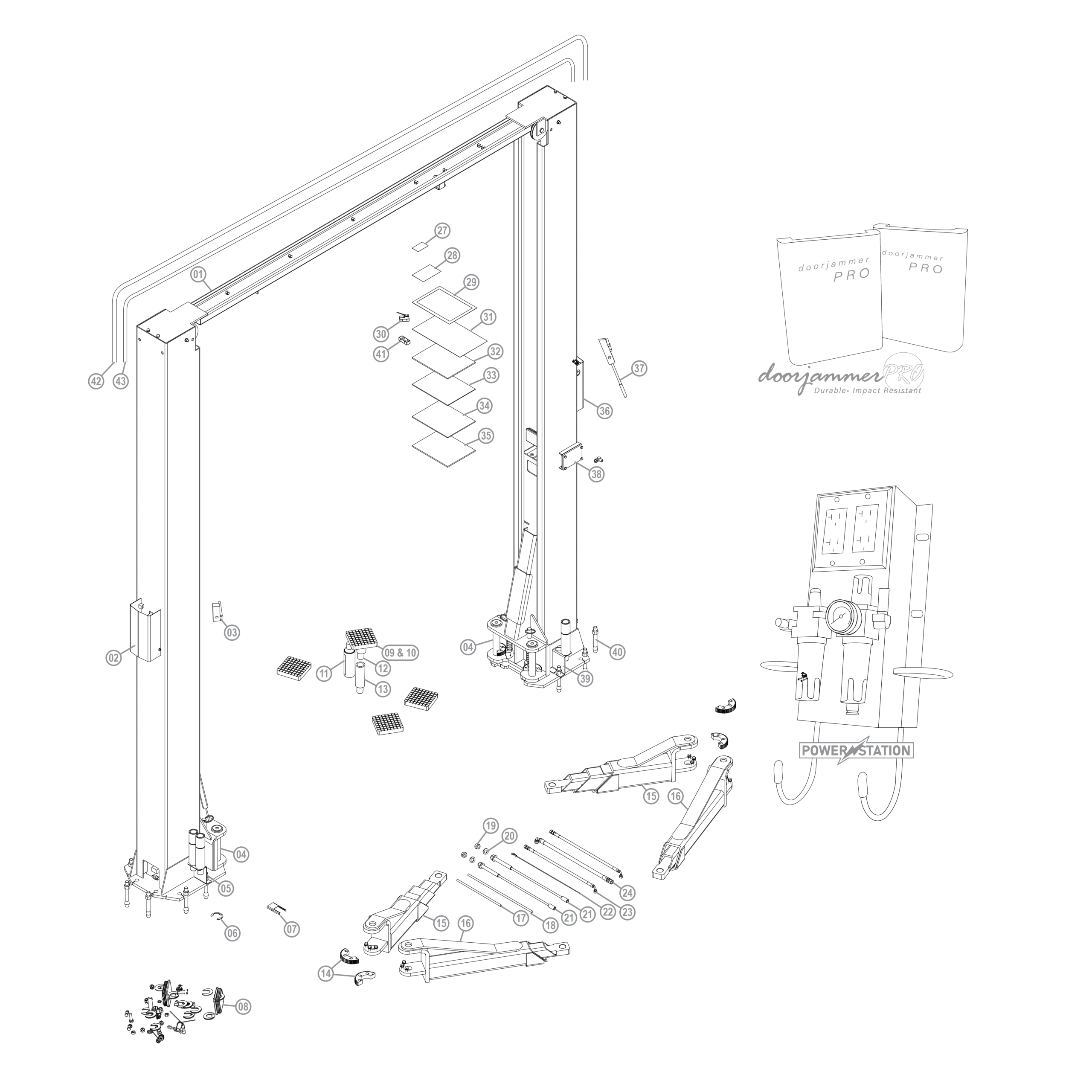

Parts for BendPak XPR-10C

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
5245133
1
Lift Superstructure – XPR-10C

2
5210009
1
Safety Cover – Offside

3
5210010
1
Safety Weldment – Offside

4
5505116
4
Lift Head Pin Weldment

5
5730664
2
Post Assembly – Lift Head Foot Guard (Left)

6
5540129
4
E Ring (Ø38mm OD)

7
5700400
1
Microswitch Cover Plate

8
5174518
1
Parts Bag

9
5250233
1
Parts Box – XPR-10C

10
5215250
4
Lift Pad Assembly – Slip On

11
5910132
1
Spray Paint – Blue (#A-4108-E076)

12
5746390
4
Lift Pad Extension – Short (113mm)

13
5746395
4
Lift Pad Extension – Long (182mm)

14
5736171
4
Arm Restraint Gear – Bolt On

15
5210170
2
Arm Assembly – Low Profile Triple Telescoping

16
5215195
2
Arm Assembly – Low Profile Medium

17
5746167
2
Double Threaded Rod (M10 x 1.5 x 275)

18
5520116
Cable – 14-4 SJO UL 62 (300VAC)

19
5535358
2
Nylon Insert Lock Nut (M18 x 2.5)

20
5545342
2
Flat Washer (M18)

21
5595016
2
Cable Assembly (Ø10 x 9036mm ST)

22
5595110
1
Safety Cable (Ø2.4 x 7518)

23
5570832
1
Hydraulic Hose Assembly (Ø6.35 x 2299mm SB)

24
5570017
1
Hydraulic Hose Assembly (Ø10 x 1219mm SB)

27
5900153
1
Safety Instructions Sticker – ALI

28
5900151
1
Warranty Card – BENDPAK #90

29
5905151
1
Safety Tips Card – ALI-ST 90

30
5525110
1
Microswitch – DZ-10GV-1B

31
5905109
1
Caution Label – ALI/WL 101C

32
5900280
1
Frame Engaging Lifts Guide – ALI/LP

33
5900152
1
Operation Inspection & Maintenance – ALIGN OIM

34
5900147
1
Safety Manual – ALI / SM 93-1

35
5900043
1
Installation Manual

36
5600163
1
Safety Cover – Power Side

37
5210007
1
Safety Assembly – Power Side

38
5715003
1
Power Unit Vibration Dampener

39
5730663
2
Post Assembly – Lift Head Foot Guard (Right)

40
5530307
12
Anchor Bolt (3/4" x 5")

41
5525112
1
Microswitch Cover – 5PA2

41
Microswitch Cover

42
5570038
1
Hydraulic Hose Assembly (Ø6.35 x 8040 SB)

43
Cable – Lift
