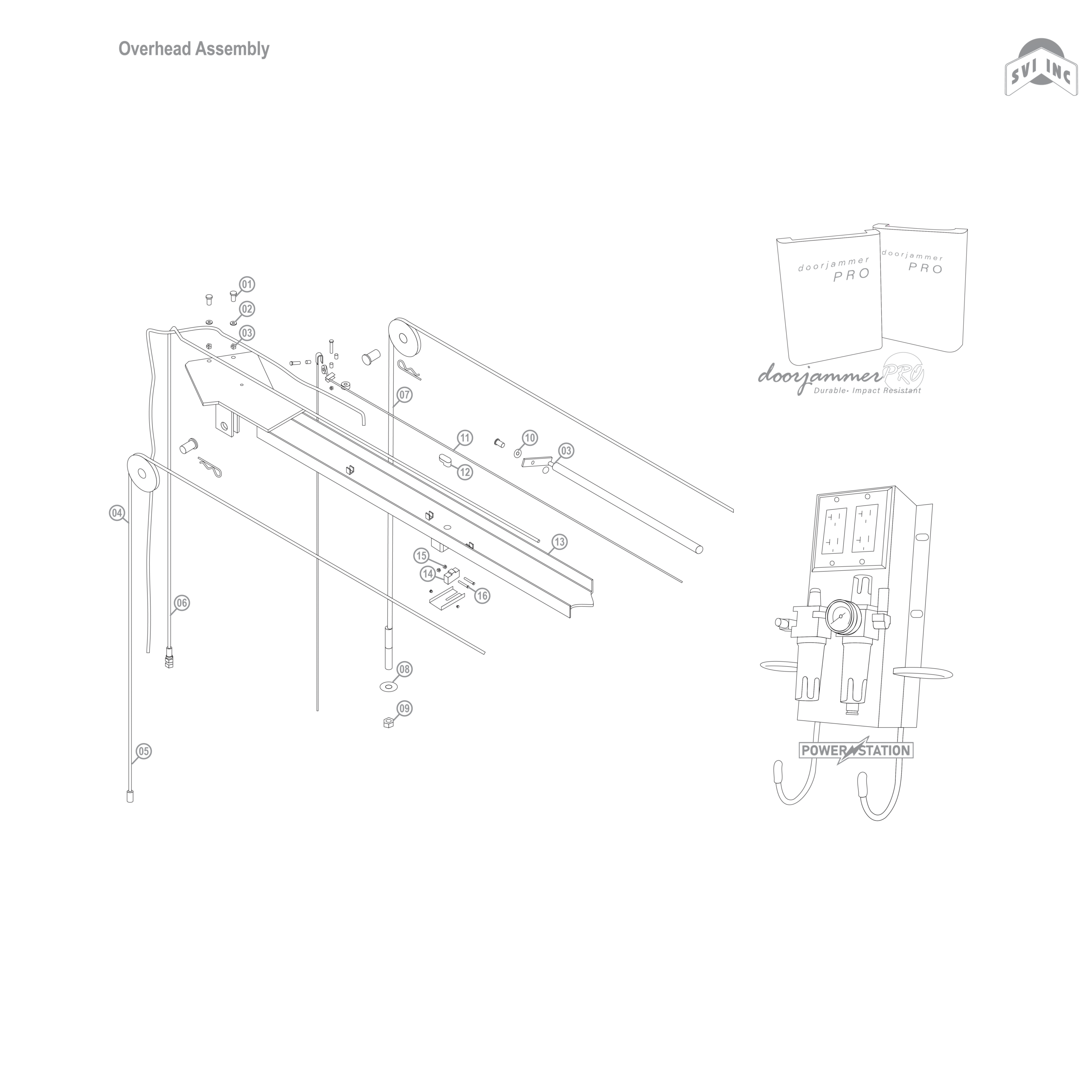

Parts for BendPak XP-10ACX (Overhead Assembly)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
5530751
4
Hex Head Bolt (M10)

2
5545251
4
Washer

3
5535350
4
Nylon Insert Lock Nut (M10)

4
5525215
1
Microswitch Cable (120")

5
5595117
1
Equalizer Cable (3/8" x 369-3/4")

6
5570106
1
Crossover Hose (1/4" x 329")

7
5595118
1
Equalizer Cable (3/8" x 364-1/2")

8
5545253
2
Flat Washer (3/4")

9
5535353
2
Nylon Insert Lock Nut (3/4-12)

10
5545250
4
Washer

11
5595113
1
Safety Cable (3/21" x 300")

12
5520142
2
Romex Connectors (3/8")

13
5210112
1
Top Trough

14
5525110
1
Microswitch – Overhead

15
5535190
2
Hex Nut (6-32)

16
5530117
2
Slotted Head Bolt (6-32)
