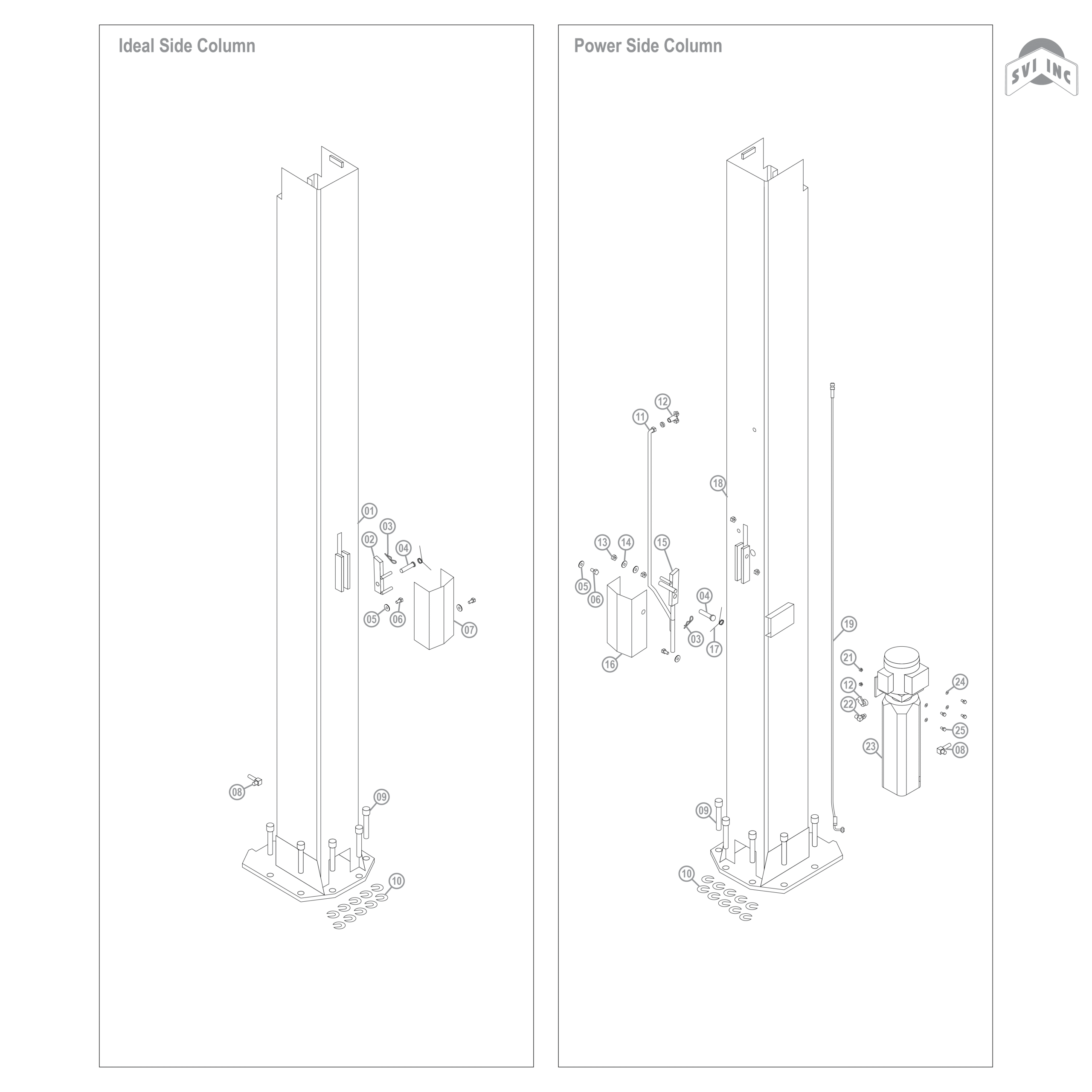

Parts for BendPak XP-10ACX (Columns)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
5210011
1
Column – Offside

2
5210010
1
Safety Weldment – Offside

3
5505112
2
Clevis Hair Pin – Safety

4
5505113
2
Clevis Pin – Safety

5
5545250
4
Washer

6
5530755
4
Hex Head Bolt (M10)

7
5210009
1
Cover – Offside Safety

8
5550113
2
Cylinder Fittings (1/4")

9
5530450
12
Anchor Bolts (3/4" x 5")

10
5545535
24
C-Shims

11
5570102
1
Hydraulic Hose (3/8" x 48")

12
5550185
1
Bulkhead Fitting (1/4" x 3/8")

13
5535355
2
Hex Nut (M12)

14
5545255
2
Washer

15
5210007
1
Safety Weldment – Power Side

16
5210006
1
Cover – Power Side

17
5540001
2
Torsion Spring – Safety

18
5210008
1
Column – Power Side

19
5570832
1
Hydraulic Hose (1/4" x 90-1/2")

21
5535356
4
Hex Nut (M8)

22
5550183
1
Power Unit Fitting (3/8")

23
5585079
1
Power Unit – AB-1466

24
5545254
4
Lock Washers

25
5530753
4
Hex Head Bolts (M8)
