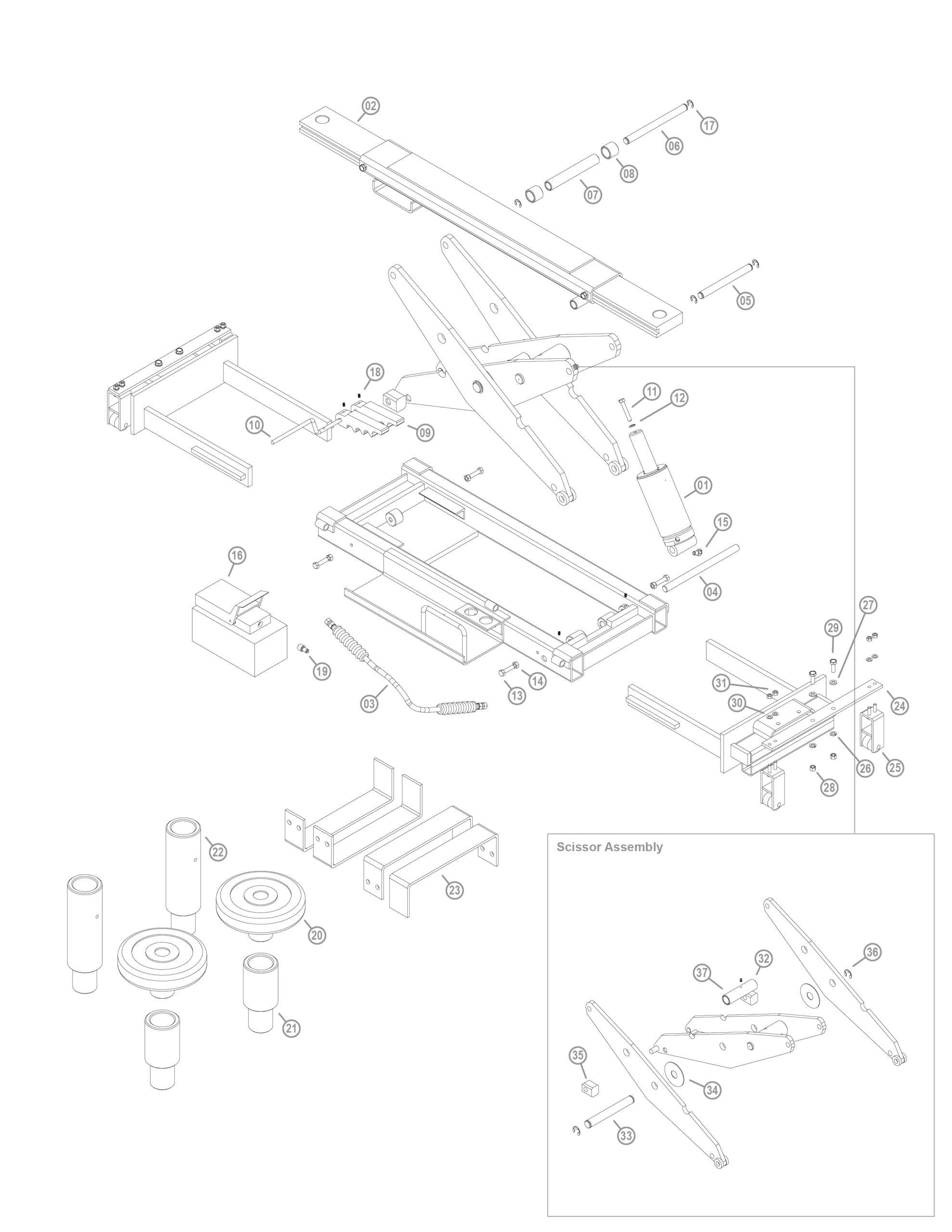

Parts for BendPak RJ9W

Rolling Jack Lifts – BendPak Lift – RJ9W

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your Rolling Jack BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5502012
Cylinder Assembly
1

2
5210138
Arm Tube Assembly
1

3
5570806
Hose for Rolling Jacks
1

4
5746374
Cylinder Hinge Rod
1

5
5746375
Scissor Pin
1

6
5746376
Scissor Pin
1

7
5746377
Scissor Pin Roller Tube
1

8
5746378
Scissor Channel Spacer
2

9
5731039
Safety Latch
2

10
5701136
Safety Handle
1

11
5530132
Hex Bolt 3/8-16 x 2-1/4"
1

12
5545130
Washer 3/8"
1

13
5530302
Restraint Gear Bolt M10 x 1.5 x 40mm
4

14
5535998
Nut M10 x 1.5
4

15
5550038
Elbow Fitting
1

16
5585734
Air Hydraulic Pump - Yellow PSI:7000
1

17
5540109
E-Clip Retaining Ring
4

18
5530790
Screw
4

19
5550493
Fitting 3/8" NPT -04 JIC
1

20
5215507
Round Lift Pad Adapter 1-3/8" pin
2

21
5746390
3" Nesting Extension
2

22
5746395
6" Nesting Extension
2

23
5701555
Spring Plate Safety Bracket
4

24
5737086
Spring Plate
2

25
5601292
Roller Bracket Assembly Weldment
4

26
5545023
Washer
4

27
5545341
Flatwasher M10
4

28
5535013
Nylock Hex Nut M10
4

29
5530021
Hex Bolt, M10 x 1.5 x 30
4

30
5545012
Washer
8

31
5535001
Nut, M8 x 1.25 NL
8

32
5746379
Scissor Spacer
1

33
5746187
Large Scissor Pin
1

34
5736074
Scissor Arm Spacer
2

35
5716030
Slider Block
2

36
5540275
Retaining Ring 25mm OD
2

37
5550025
Grease Fitting M6 x 1
1

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part or product listed is the actual product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
