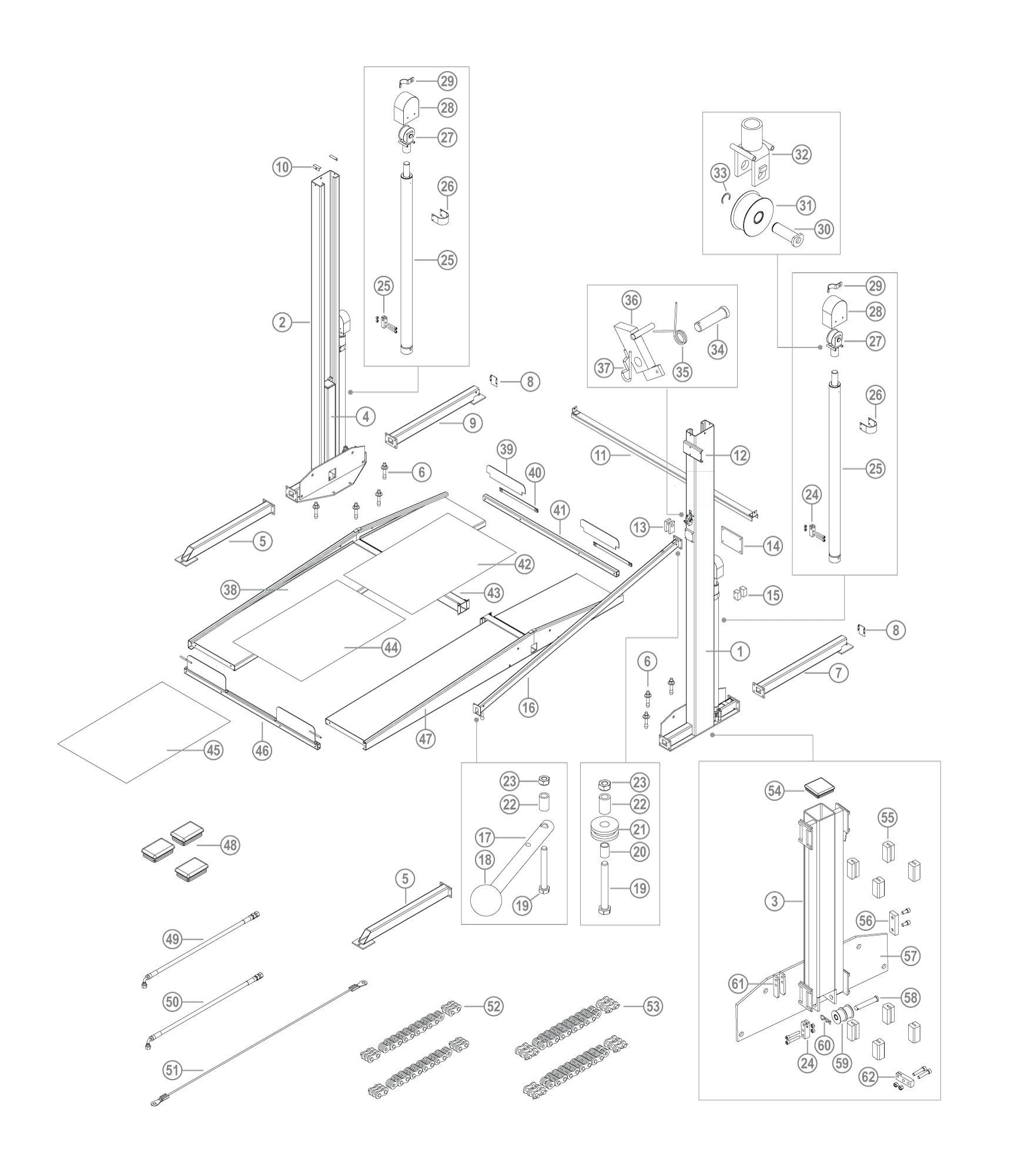

Parts for BendPak PL-7000XR Parking Lift

Above Ground Parking Lifts – BendPak Lift – PL-7000XR Parking

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day. Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5215212
Column Assembly (Power)
1

2
5215211
Column Assembly (Offside)
1

3
5215324
Lift Head Assembly, Right
1

4
5215325
Lift Head Assembly, Left
1

5
5620254
Tapered Foot
2

6
5530456
Anchor Bolts 3/4" X 4-3/4"
8

7
5620250
Column Base Extension (Power Side)
1

8
5701083
Tube Extension Cover, Left
2

9
5620251
ColumnTube Extension (Offside)
1

10
5620266
Column Top Plate
2

11
5600635
Floor Crosstube
1

12
5701077
Mounting Bracket
1

13
5736034
Safety Release Plate
2

14
5715003
Power Unit Vibration Dampener
1

15
5736036
Tie Strap Block
4

16
5215517
Control Arm Assembly

17
5746110
Safety Control Handle
1

18
5715014
32mm dia Plastic Ball (M12 X 1.75)
1

19
5530097
Hex Head Bolt M6 X 1.0 X 50
2

20
5565350
Safety Sheave Spacer
1

21
5575112
Safety Sheave
1

22
5746109
Safety Control Spacer
2

23
5535357
Nut M6 X 1.0 NL
2

24
5761003
Chain Connector
2

25
5502325
Cylinder Assembly 2.5 dia X 43
2

26
5700040
Cylinder Tie Strap
2

27
5215082
Roller Assembly
2

28
5600111
Roller Cover
2

29
5505026
1/2" Pipe Strap (20.6mm dia)
4

30
5600082
Chain Roller Pin
1

31
5215073
Chain Roller Assembly
1

32
5600081
Roller Housing
1

33
5540006
Snap Ring Truarc 5103-100
1

34
5505035
Safety Clevis Pin
1

35
5540001
Carriage Lock Safety Spring
1

36
5620268
Safety Latch
1

37
5505350
Model #211 Large Hair Pin
1

38
5600402
Runway, Left
1

39
5730002
Tire Stop Plate
2

40
5600016
Tire Stop Bar
1

41
5766175
Drive-On and Tire Stop Tube (Front)
1

42
5600631
Front Deck
1

43
5600634
Equalizer Chain Tube
2

44
5600630
Center Deck
1

45
5600632
Rear Deck
1

46
5600633
Drive-On And Tire Stop Tube (Rear)
1

47
5600403
Runway, Right
1

48
5715360
Polyethylene Tube Cover 2 X 3 in
3

49
5570183
Hose Assembly 6.4 dia X 248.5"
1

50
5570182
Hose Assembly 6.4 dia X 97.5"
2

51
5595384
Safety Control Cable (2.4 dia X 104.5")
1

52
5510101
Lift Head Chain
2

53
5510115
Equalizer Chain
2

54
5715005
Polyethylene Cover Block 95 X 95
2

55
5716001
Slider Block
16

56
5736051
Safety Stop Block
1

57
5731037
Lift Head Face Plate
2

58
5505682
Clevis Pin
2

59
5215074
Equalizer Roller Assembly
2

60
5505350
Model#211 Hair Pin/ Large
2

61
5736233
Lift Head Chain Connector Plate
4

62
5736049
Lift Head Connector
2

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
