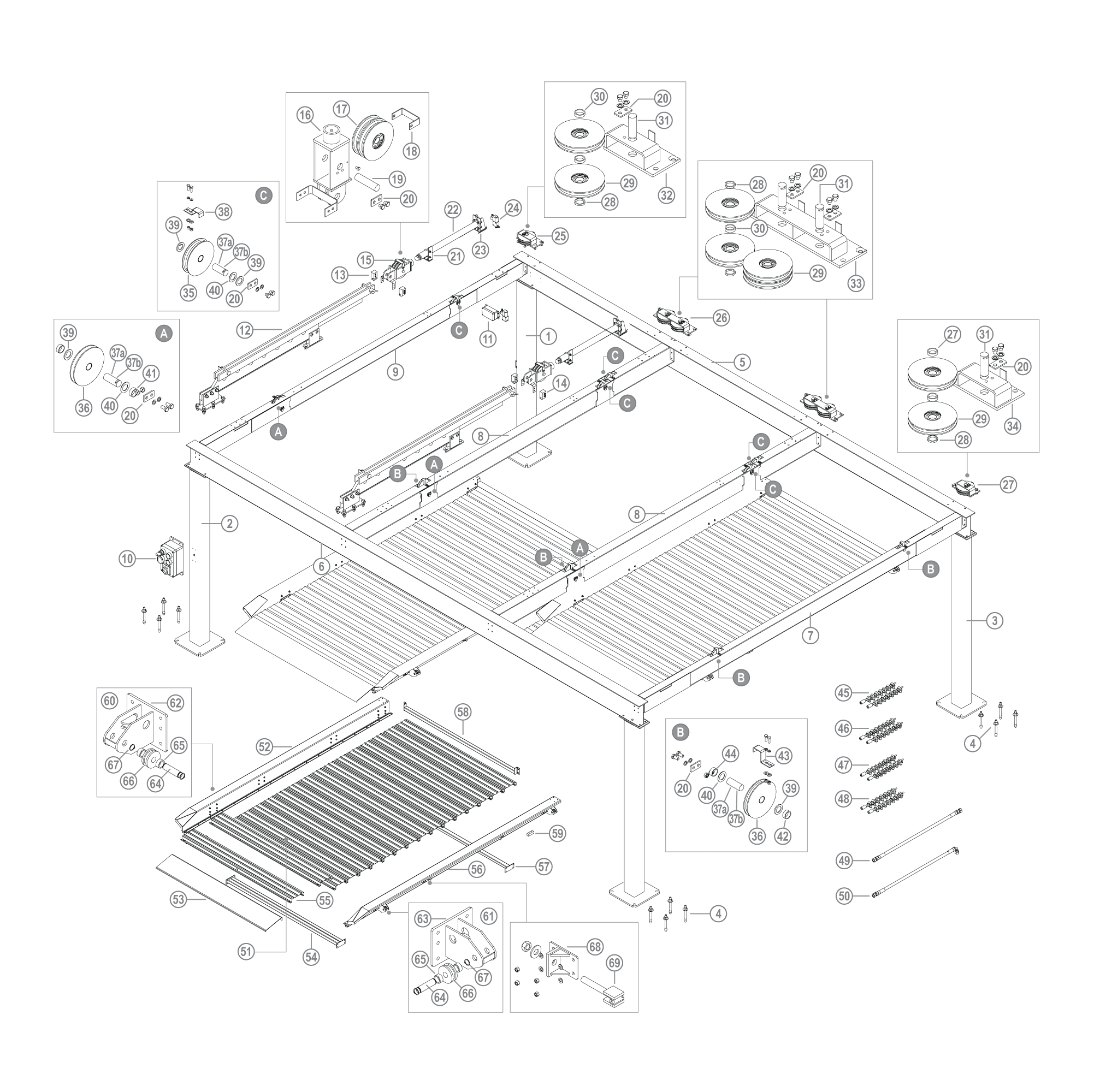

Parts for BendPak PL-6KT Parking Lift

Above Ground Parking Lifts – BendPak Lift – PL-6KT Parking

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day. Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601204
Column Assembly (Power Post Front)
1

2
5601205
Column Assembly (Control Rear)
1

3
5601206
Column Assembly (Closeout)
2

4
5530337
AB 3/4" x 6.3"
16

5
5770121
Front Beam
1

6
5770122
Rear Beam
1

7
5215683
Crossbeam Assembly (Closeout)
1

8
5216012
Crossbeam Assembly (Center)
2

9
5216013
Crossbeam Assembly (Power)
1

10
5215710
Control Box Assembly
1

11
5520028
Control Box
1

12
5216010
Multi Safety Latch Bar Assembly
3

13
5716067
Polyethylene Slide Block, Wide
4

14
5716068
Polyethylene Slide Block, Narrow
2

15
5216011
Cylinder Sheave Mount Assembly, Slide
3

16
5601604
Cylinder Sheave Mount
1

17
5215696
Quad Sheave Assembly
1

18
5701174
Quad Sheave Mount Bracket
1

19
5746679
Quad Sheave Pin
1

20
5736865
Sheave Pin Bolt Plate
13

21
5601606
Cylinder Support
3

22
5502048
Cylinder Assembly 3.250 X 47.635, Fast
3

23
5601605
Cylinder/Cable Mount
3

24
5590245
2 Way D.B. Valve 24V AC/DC Coil
3

25
5215672
2-Sheave Mount Assembly, Left
1

26
5215674
4-Sheave Mount Assembly
2

27
5215671
2-Sheave Mount Assembly, Right
1

28
5755148
Small Sheave Spacer
6

29
5215673
Sheave Assembly
8

30
5755147
Large Sheave Spacer
6

31
5746691
Sheave Pin
4

32
5600939
2-Sheave Mount, Left Side
1

33
5600940
4-Sheave Mount
1

34
5600938
2-Sheave Mount, Right Side
1

35
5215695
Double Sheave Assembly
2

36
5215694
Single Sheave Assembly
6

37A
5746688
Crossbeam Closeout Sheave Pin
4

37B
5746685
Crossbeam Sheave Pin
4

38
5701187
Crossbeam Cable Retainer, Small
4

39
5746686
Crossbeam Sheave Washer, Large
7

40
5746687
Crossbeam Sheave Washer
11

41
5755150
Crossbeam Sheave Spacer
3

42
5755151
Crossbeam Sheave Spacer, Small
4

43
5701186
Crossbeam Cable Retainer
2

44
5755152
Crossbeam Sheave Spacer
3

45
5595637
Cable Assembly 12 dia X 297"
3

46
5595685
Cable Assembly 12 dia X 415"
3

47
5595686
Cable Assembly 12 dia X 482.5"
3

48
5595687
Cable Assembly 12 dia X 603.5"
3

49
5570146
Hydraulic Hose Assembly 6.35 dia X 93" DS
2

50
5570102
Hydraulic Hose Assembly 6.35 x 109.5" SB
3

51
5215684
Runway Assembly
3

52
5215677
Runway Side Rail Assembly, Left
1

53
5601132
Runway Approach Ramp
1

54
5601131
Runway Lower Double Strut
1

55
5701170
Runway Section
17

56
5215678
Runwayp Side Rail Assembly, Right
1

57
5600958
Runway Lower Strut
1

58
5600957
Runway Upper Strut
1

59
5716040
Runway Plastic Foot Block
4

60
5215680
Runway Sheave Mount Assembly, Left
2

61
5215679
Runway Sheave Mount Assembly, Right
2

62
5600950
Runway Sheave Mount, Left
1

63
5600949
Runway Sheave Mount, Right
1

64
5746684
Runway Sheave Pin
2

65
5755149
Runway Sheave Spacer
4

66
5575020
Runway Sheave
2

67
5540022
A R Ring OD 20 TRUARC N5100-78
4

68
5600948
Cable Anchor Weldment
4

69
5601253
Cable Anchor Socket
4
