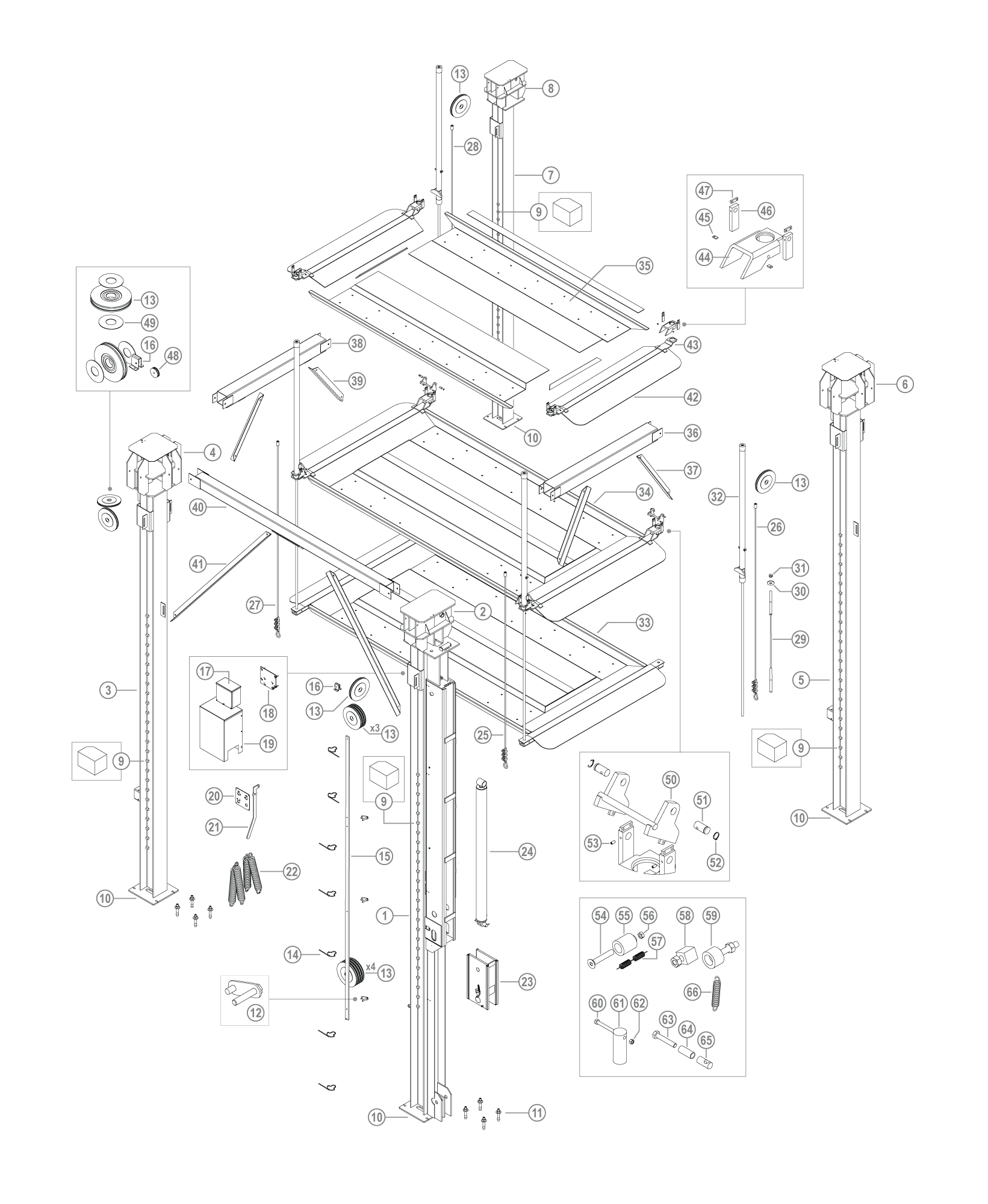

Parts for BendPak PL-18000 Parking Lift

Above Ground Parking Lifts – BendPak Lift – PL-18000 Parking

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day. Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601060
Column Assembly (Power Rear)
1

2
5620332
Sheave Box (Power Front)
1

3
5600830
Column Assembly (Control Front)
1

4
5620705
Sheave Box (Control Front)
1

5
5600828
Column Assembly (Close Out Rear)
1

6
5620712
Sheave Box (Close Out Rear)
1

7
5600827
Column Assembly (Close Out Front)
1

8
5620711
Sheave Box (Close Out Front)
1

9
5761091
Safety Stop Blocks
390

10
5736489
Column Base Plate
4

11
5530308
Anchor Bolt 3/4" x 7"
16

12
5600580
Post Linkage
3

13
5215646
Sheave Assembly
12

14
5505615
14" Cable Ties
4

15
5736397
Safety Handle
1

16
5701360
Safety Sheave Bracket
2

17
5735767
Power Unit Adapter Plate
1

18
5520406
Electrical Box 10 x 10 x 6mm
1

19
5215443
Power Unit Cover Assembly
1

20
5736398
Control Plate
1

21
5736484
Post Safety Bar
1

22
5540111
Spring 25mm x 178mm
16

23
5215643
Pullbox Assembly
1

24
5502510
Pull Cylinder Assembly 5.5 Dia X 120mm
1

25
5595157
Cable, Lifting PL-18000 (410")
1

26
5595158
Cable, Lifting PL-18000 (522.5")
1

27
5595159
Cable, Lifting PL-18000 (571")
1

28
5595162
Cable, Lifting PL-18000 (669.5")
1

29
5595386
Safety Cable Dt PL-18000 (538.5")
1

30
5545027
Washer M12 x 37 x 3mm
1

31
5535012
Nut M12 x 1.75 NL
1

32
5215644
Ramp Lifting Rod Assembly
4

33
5600815
Bottom Runway
1

34
5600820
Middle Runway
1

35
5620701
Top Runway
1

36
5600854
Crossbeam Assembly, Short Rear
1

37
5721375
Rear Angle
2

38
5600855
Crossbeam Assembly, Short Front
1

39
5721376
Front Angle
2

40
5600579
Crossbeam Assembly, Long Side
1

41
5721377
Side Angle
2

42
5701723
Approach Ramp
1

43
5701718
Top Ramp Stiffener
2

44
5701726
Top Ramp Connector Channel
2

45
5545169
Safety Spring Retainer
4

46
5736800
Cable Break Safety Adapter Plate
4

47
5736782
Cable Break Safety Spring Clip
4

48
5746223
Safety Cable Sheave
2

49
5735518
Sheave Bearing Spacer
14

50
5600814
Cable Break Safety Latch Bar
4

51
5746667
Cable Break Safety Clevis Pin
8

52
5540300
Retaining Ring, TRUARC 5100-75
8

53
5530099
Socket Set Screw M6 x 1.0 x 12mm
8

54
5530289
Flat Head Socket Screw M12 x 1.75 x 70
24

55
5716194
Ramp Guide Bumper
16

56
5535012
Nut M12 x 1.75 NL
24

57
5540087
Pull Spring 12.7 x 51mm
8

58
5736806
Bottom Ramp Bumper Spacer
8

59
5716193
Middle Ramp Guide Bumper
8

60
5530748
Hex Bolt M10 x 1.5 x 100mmL
5

61
5505054
Single Sheave Pin
5

62
5535013
Nut M10 x 1.5 NL
11

63
5530217
Hex Bolt M10 x 1.5 x 58
1

64
5736458
Safety Cable Spacer
1

65
5746253
Safety Cable Connector
1

66
5540003
Spring 16mm x 90mm
1

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
