Parts for BendPak HDSO-14LSX
Above Ground Alignment Lift – BendPak Lift – HDSO-14LSX
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your Rolling Jack BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.
Looking for a specific model breakdown or part? Contact SVI today!
1
5600930
Radius Turnplate Galvantized STD Bottom Plate Weldment
1
2
5600932
Radius Turnplate Galvantized STD Top Plate Weldment
1
3
5711302
Radius Turnplate Ball Retainer
1
4
5736065
Radius Turnplate Spring Washer
1
5
5505707
Radious Turnplate Locking Pin
2
9
5580215
9/16" Delrin Balls for Turnplates / Ea.
27
10
5530054
Set Screw M10 x 1.5 x 12
1
11
5530045
BHPS M5 x 0.8 x 10
2
12
5736309
Radius Turnplate Sandwhich Plate
1
13
5530203
PHPS M10 x 1.5 x 16
1
14
5545200
Washer, M10 x Ø18 SL
1
15
5905582
Turnplate Label
1
16
5700031
Mounting Bracket
1
17
5590175
Lock Release Air Valve
1
18
5550087
Elbow Fitting -04 Comp to -02 NPT
1
19
5550486
Nipple Fitting -02 NPT x -04 NPT
1
20
5600138
Drive Up Ramp Weldment
2
21
5716149
Ramp Roller HD12
4
22
5530097
Hex Bolt, M6 x 1.0 x 50
4
24
5600281
Off Side Ramp Weldment
1
26
5600261
Off Side Ramp Sheave Shaft Weldment
1
27
5600260
Axle Shaft for Stack of 4 Sheaves
1
28
5215015
Ramp Sheave for HDS14
1
29
5215573
Ramp Sheave Aassembly
1
30
5755101
Open End Sheave Spacer
1
31
5755102
Off Side Bottom Sheave Spacer
1
32
5755103
Off Side Top Sheave Spacer
1
33
5716012
UHMW Sheave Spacer
1
36
5600186
Power Side Ramp Weldment
1
37
5215572
Cylinder Flange Arm Assembly
1
38
5215015
Ramp Sheave for HDS14
4
39
5215573
Ramp Sheave Assembly
1
40
5620244
Axle Shaft for Stack of 4 Sheaves
1
41
5600260
Axle Shaft for Stack of 4 Sheaves
1
43
5736821
Cable Retainer Plate
1
44
5502110
Cylinder Assembly
1
45
5716012
UHMW Sheave Spacer
1
46
5755101
Open End Sheave Spacer
1
49
5600720
Cylinder Flange Arm Weldment
1
50
5716006
Cylinder Flange Arm Slide
2
53
5716176
Cylinder Flange Arm Top Slide
1
54
5600284
Crosstube Weldment
1
55
5215013
Crosstube Sheave Assembly
2
56
5575380
Slack Safety Sleeve Roller
2
57
5600044
Slack Safety Pawl
2
58
5600173
Sheave Pin Weldment
2
62
5540275
Retaining Ring 25mm OD
8
63
5502195
Lock Release Air Cylinder
2
64
5530005
Hex Head Capscrew
6
68
5540065
Slack Safety Spring
4
69
5540070
Air Cylinder Spring
2
70
5505625
Air Cylinder Rod End
2
71
5550087
Elbow Fitting -04 Comp to -02 NPT
2
72
5755136
12mm Air Cylinder Spacer
2
73
5755137
25mm Air Cylinder Spacer
2
75
5600287
Short Crosstube Left Weldment
1
77
5600763
Slack Safety Latch Plate Weldment
2
78
5575380
Slack Safety Sleeve Roller
2
79
5716031
Plastic Slide Block
8
80
5215013
Crosstube Sheave Assembly
2

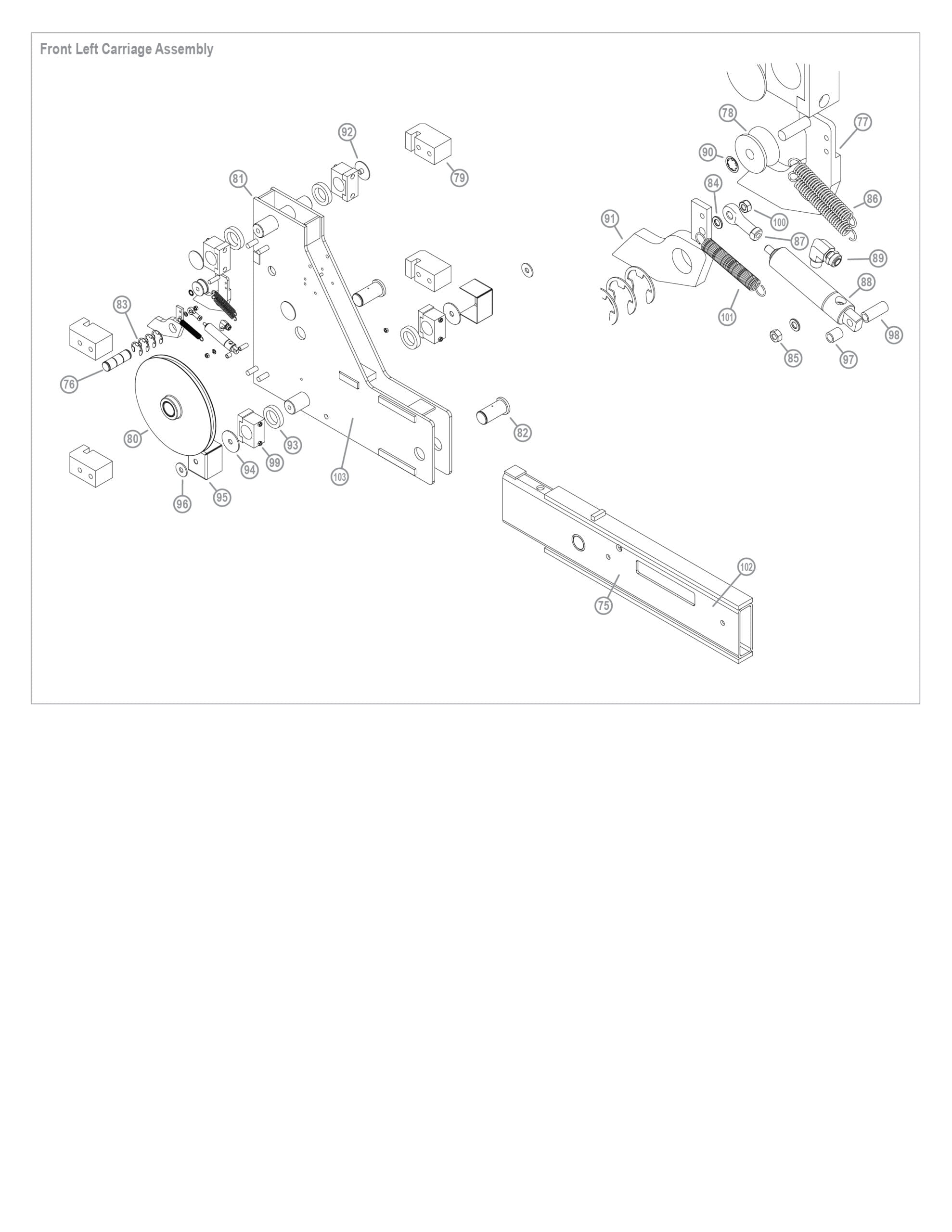

81
5600285
Carriage Weldment (LF)
1
82
5600173
Sheave Pin Weldment
4
83
5540275
Retaining Ring 25mm OD
8
86
5540065
Slack Safety Spring
4
87
5505625
Air Cylinder Rod End
2
88
5502195
Lock Release Air Cylinder
2
89
5550087
Elbow Fitting -04 Comp to -02 NPT
2
93
5716022
Carriage Roller Bearing
8
94
5716023
Roller Cover Bearing
4
96
5545027
Washer, M12 x 37 dia x 3mm
4
97
5755136
12mm Air Cylinder Spacer
2
98
5755137
25mm Air Cylinder Spacer
2
99
5215402
Carriage Slider Assembly
8
101
5540070
Air Cylinder Spring
2
102
5600288
Short Crosstube Right Weldment
1
103
5600286
Right Carriage Weldment
1
104
5215605
Crosstube Assembly
1
105
5215145
Off Side Ramp Assembly
1
106
5600915
Safety Ladder Weldment
2
108
5620237
Post Weldment, Power Side
1
110
5600914
Safety Ladder Weldment
2
111
5535303
Nut, M20 x 2.5
4
112
5545343
Washer, M20 Flat
4
113
5535017
Nut, M20 x 2.5 NL
4
114
5746382
Spacer, Safety Ladder, 15mm LG
2
115
5535013
Nylock Hex Nut M10
4
116
5545341
Flatwasher M10
8
117
5746384
Spacer, Safety Ladder, 23.5mm LG
2
118
5530217
Hex Bolt, M10 x 1.5 x 58
2
119
5600406
Top Plate Weldment
2
120
5505009
Drive Up Ramp Pin
2
121
5700029
Flex Tube Bracket Plate
1
122
5700033
Flex Tube Angle
1
123
5715003
Power Unit Vibration Dampener
1
124
5215096
Lock Release Air Valve Assembly
1
125
5570050
Flex Tube Assembly
1
126
5595065
Cable, Lifting for HDSO-14/14LSX
1
127
5595066
Cable, Lifting for HDSO-14/14LSX
1
128
5595534
Cable, Lifting for HDSO-14/14LSX
1
129
5595535
Cross Chn 7K 193"
1
130
5570795
Tubing 1/4"
24000mm
132
5535011
Nylon Insert Locknut Zinc 22M-2.5
4
135
5745050
Slip Plate Lock Pin
4
136
5575015
1" Ball Caster for 4-Post Alignment
60
137
5600669
Rollback Spacer Weldment
2
138
5601090
Rollback Spacer Weldment, Large
2
139
5600407
Top Plate Weldment
2
140
5530456
Wedge Anchor Bolt
20
141
5716629
Crosstube Cover, Plastic
2
142
5716631
Carriage Closeout Cover, Plastic
2
143
5550025
Grease Fitting M6 x 1
6
144
5550026
GRS Fitting 1/8NPT
4
145
5701732
Cylinder Flange Arm
1
146
5736539
Cable Retainer Block
1
147
5745317
Cylinder Flange Arm Spacer
1
148
5735289
Cylinder Flange Arm Spacer
1
