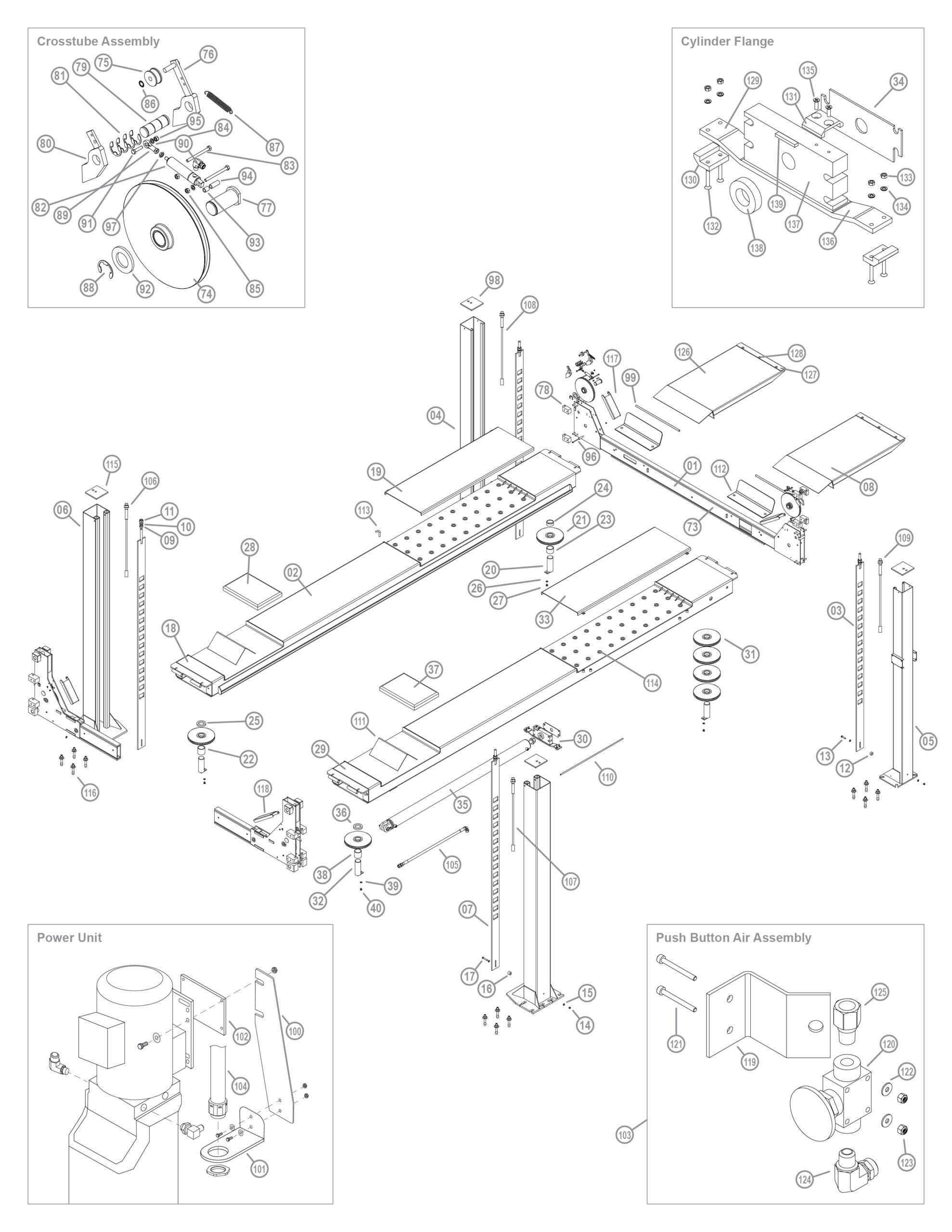

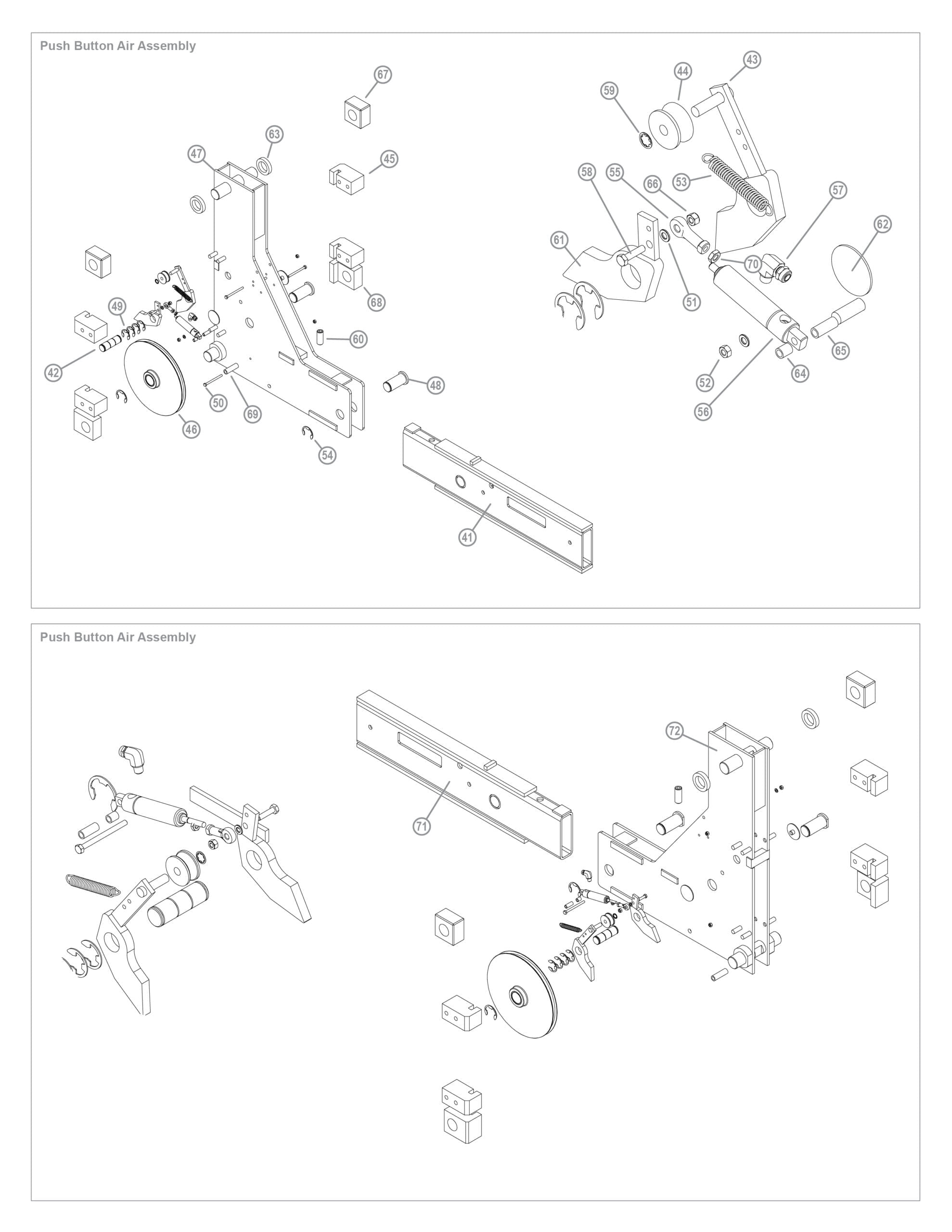

Parts for BendPak HDSO-14AX
Above Ground Alignment Lift – BendPak Lift – HDSO-14AX
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your Rolling Jack BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.
Looking for a specific model breakdown or part? Contact SVI today!
1
5216144
Crosstube Assembly
1
2
5215145
Off Side Ramp Assembly
1
3
5600915
Safety Ladder Weldment
2
5
5620606
Power Side Post Weldment
1
7
5601112
Safety Ladder Weldment
2
8
5215104
Drive Up Ramp Assembly
2
10
5545343
Washer, M20 Flat
4
11
5535017
Nut, M20 x 2.5 NL
4
12
5746382
Spacer, Safety Ladder, 15mm LG
2
13
5530167
Hex Head Capscrew
2
14
5535013
Nylock Hex Nut M10
4
16
5746384
Spacer, Safety Ladder, 23.5mm LG
2
17
5530217
Hex Bolt, M10 x 1.5 x 58
2
18
5600281
Off Side Ramp Weldment
1
20
5600260
Axle Shaft for Stack of 4 Sheaves
2
21
5215015
Ramp Sheave for HDS14
2
22
5755101
Open End Sheave Spacer
1
23
5755102
Off Side Bottom Sheave Spacer
1
24
5755103
Off Side Top Sheave Spacer
1
25
5716012
UHMW Sheave Spacer
1
27
5530281
Hex Bolt M10 x 1.5 x 10
2
29
5600186
Power Side Ramp Weldment
1
30
5216022
Alignment Cylinder Flange Arm Assembly
1
31
5215015
Ramp Sheave for HDS14
5
32
5600260
Axle Shaft for Stack of 4 Sheaves
2
34
5736821
Cable Retainer Plate
1
35
5502110
Cylinder Assembly
1
36
5716012
UHMW Sheave Spacer
1
38
5755101
Open End Sheave Spacer
1
40
5530281
Hex Bolt M10 x 1.5 x 10
2
41
5601817
Short Crosstube Left Weldment
1
43
5600044
Slack Safety Pawl
2
44
5575380
Slack Safety Sleeve Roller
2
45
5716031
Plastic Slide Block
8
46
5215013
Crosstube Sheave Assembly
2
47
5601110
Left Carriage Weldment
1
48
5600173
Sheave Pin Weldment
4
49
5540275
Retaining Ring 25mm OD
8
50
5530694
Hex Bolt, M6 x 1 x 75
6
53
5540065
Slack Safety Spring
2
54
5540002
E-Ring 1.375" OD Truarc X5133-137
4
55
5505625
Air Cylinder Rod End
2
56
5502195
Lock Release Air Cylinder
2
57
5550087
Elbow Fitting -04 Comp to -02 NPT
2
58
5530756
Hex Bolt, M6 x 1.0 x 25mm
2
60
5530090
SSS M20 x 2.5 x 50L
2
63
5716022
Carriage Roller Bearing
4
64
5755136
12mm Air Cylinder Spacer
2
65
5755137
25mm Air Cylinder Spacer
2
67
5716038
Polyethylene Slide Block, Top
4
68
5716039
Polyethylene Slide Block, Bottom
4
69
5755159
Crosstube Spacer 16 dia x 10 dia x 52
2
71
5601818
Short Crosstube Right Weldment
1
72
5601111
Right Carriage Weldment
1
73
5601816
Crosstube Weldment
1
74
5215013
Crosstube Sheave Assembly
2
75
5575380
Slack Safety Sleeve Roller
2
76
5600044
Slack Safety Pawl
2
77
5600173
Sheave Pin Weldment
2
81
5540275
Retaining Ring 25mm OD
8
82
5502195
Lock Release Air Cylinder
2
83
5530005
Hex Head Capscrew
6
87
5540065
Slack Safety Spring
2
88
5540002
E-Ring 1.375" OD Truarc X5133-137
2
89
5505625
Air Cylinder Rod End
2
90
5550087
Elbow Fitting -04 Comp to -02 NPT
2
91
5530756
Hex Bolt, M6 x 1.0 x 25mm
2
92
5545032
Washer, M36 x 66 Flat
2
93
5755136
12mm Air Cylinder Spacer
2
94
5755137
25mm Air Cylinder Spacer
2
96
5755157
Crossbeam Spacer
2
98
5600406
Top Plate Weldment
2
99
5505009
Drive Up Ramp Pin
2
100
5700029
Flex Tube Bracket Plate
1
101
5700033
Flex Tube Angle
1
102
5715003
Power Unit Vibration Dampener
1
103
5215096
Lock Release Air Valve Assembly
1
105
5570871
Hydraulic Hose Assembly
1
106
5595065
Cable, Lifting for HDSO-14/14LSX
1
107
5595066
Cable, Lifting for HDSO-14/14LSX
1
108
5595089
Cable, Lifting for HDSO-14AX
1
109
5595931
Cable, Lifting for HDSO-14AX
1
110
5570795
Tubing 1/4"
24000mm
113
5745050
Slip Plate Lock Pin
4
114
5575015
1" Ball Caster for 4-Post Alignment
60
115
5600407
Top Plate Weldment
2
116
5530456
Wedge Anchor Bolt
20
117
5716629
Crosstube Cover, Plastic
2
118
5716631
Carriage Closeout Cover, Plastic
2
119
5700031
Mounting Bracket
1
120
5590175
Lock Release Air Valve
1
121
5530043
SHCS M3 x 0.5 x 30
2
123
5535020
Nylock Nut M3 x 0.5
2
124
5550087
Elbow Fitting -04 Comp to -02 NPT
1
125
5550486
Nipple Fitting -02 NPT x -04 NPT
1
126
5600138
Drive Up Ramp Weldment
2
127
5716087
Approach Ramp Edge Guard
2
128
5530465
Nut, M6 x 1.0 x 12mm
6
129
5601618
Alignment Cylinder Flange Arm Weldment
1
130
5716006
Cylinder Flange Arm Slide
2
131
5716176
Cylinder Flange Arm Top Slide
1
132
5530247
FHPS M6 x 1 x 40
4
135
5530244
FHPS M6 x 1.0 x 20mm
2
136
5701788
Alignment Cylinder Flange Arm
1
137
5736539
Cable Retainer Block
1
138
5745317
Cylinder Flange Arm Spacer
1
139
5735289
Cylinder Flange Arm Spacer
1
