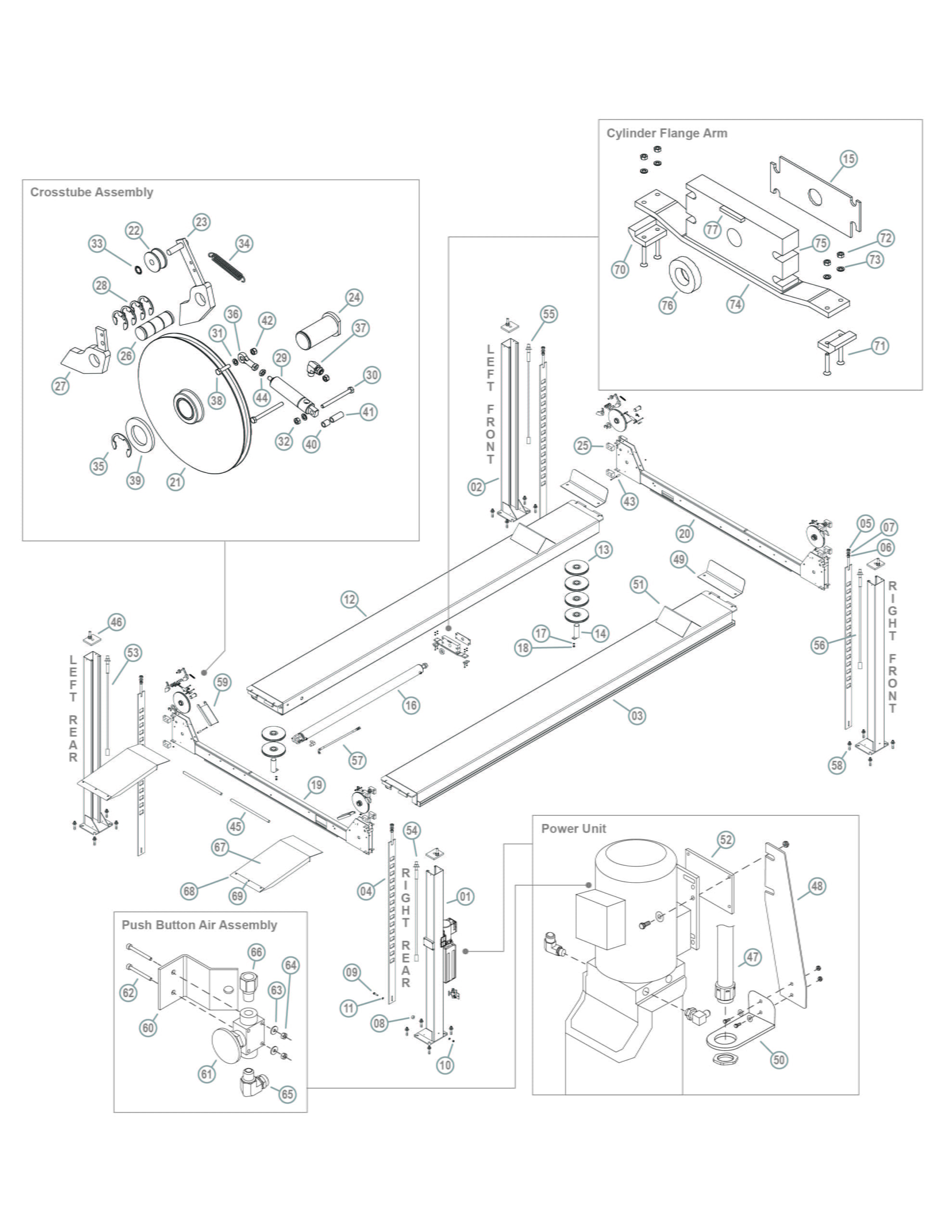

Parts for BendPak HDS-14X

Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HDS-14X

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5620606
Power Side Post Weldment
1

2
5620605
Post Weldment
3

3
5601437
Off-Side Ramp Weldment
1

4
5600915
Safety Ladder Weldment
4

5
5535017
Nut, M20 x 2.5 NL
4

6
5535303
Nut, M20 x 2.5
4

7
5545343
Washer, M20 Flat
4

8
5746382
Spacer, Safety Ladder, 15mm LG
4

9
5530167
Hex Bolt, M10 x 1.5 x 45mm
4

10
5535013
Nut M10 x 1.5
4

11
5545341
Washer, M10 Flat
8

12
5600268
Power Side Ramp Assembly
1

13
5215015
Ramp Sheave for HDS14
6

14
5600260
Shaft for Stack of 4 Sheaves
2

15
5736821
Cable Retainer Plate
1

16
5502110
Cylinder Assembly
1

17
5545341
Washer, M10 Flat
2

18
5530281
Hex Bolt M10 x 1.5 x 10
2

19
5601814
Crosstube Weldment, Large Window
1

20
5601826
Crosstube Weldment, Small Window
1

21
5215013
Sheave
4

22
5575380
Slack Safety Sleeve Roller
4

23
5600044
Slack Cable Weldment for HD12B
4

24
5600173
Sheave Pin Weldment
4

25
5716005
Slider Block
16

26
5600760
Safety Pawl
4

27
5746008
Safety Pin
4

28
5502195
Lock Release Air Cylinder
4

29
5505030
Push-On CLIP 10mm dia SS
4

30
5505625
Female Rod End
4

31
5530005
Ramp Roller Pin HD12
12

32
5530756
Hex Bolt, M6 x 1.0 x 25mm
4

33
5535112
Nut, M6 x 1
4

34
5540002
E-Ring 1.375" OD Truarc X5133-137
4

35
5540065
Spring 13mm dia x 90mm
4

36
5540275
E-Ring 25mm dia OD DIN 6799 250
16

37
5545005
Flat Washer M6
8

38
5545032
Washer, M36 x 66 Flat
4

39
5550087
Elbow Fitting -04 Comp x -02 NPT
4

41
5755137
Air Cylinder Spacer 25mm
4

42
5535357
Ramp Roller Nut
12

43
5755157
Crossbeam Spacer
4

44
5535230
Nut, 1/4-28 JN
4

45
5505009
Drive Up Ramp Pin
2

46
5600406
Top Plate Weldment
4

47
5216139
Flex Tube Kit
1

48
5700029
Flex Tube Bracket Plate
1

49
5700032
Tire Stop
2

50
5700033
Flex Tube Angle
1

51
5700072
Wheel Chock
2

52
5715003
Power Unit Vibration Dampener
1

53
5595065
Cable, Lifting for HDSO-14/14LSX
1

54
5595066
Cable, Lifting for HDSO-14/14LSX
1

55
5595067
Cable, Lifting 397-3/4"
1

56
5595068
Cable, Lifting 461-3/4"
1

57
5570151
Hose Assembly
1

58
5530456
Wedge Anchor 3/4" x 4-3/4"
16

59
5716629
Crosstube Cover, Plastic
4

60
5700031
Mounting Bracket
1

61
BH-7471-2190
5590175
Push Button Air Valve
1

62
5530043
SHCS M3 x 0.5 x 30mm
2

63
5545024
Flatwasher M3
2

64
5535020
Nut, M3 x 0.5 NL
2

65
5550087
Elbow Fitting -04 Comp x -02 NPT
1

66
5550486
FTG NPL -02 NPT X -04 F NPT
1

67
5600138
Drive Up Ramp Weldment
2

68
5716087
Approach Ramp Edge Guard
2

69
5530465
Nut, M6 x 1.0 x 12mm
6

70
5716006
Cylinder Flange Arm Slide
2

71
5530247
FHPS M6 x 1 x 40
4

72
5535112
Nut, M6 x 1
4

73
5545005
Flat Washer M6
4

74
5701732
Cylinder Flange Arm
1

75
5736820
Cable Retainer Block
1

76
5745317
Cylinder Flange Arm Spacer
1

77
5735289
Cylinder Flange Arm Spacer
1
