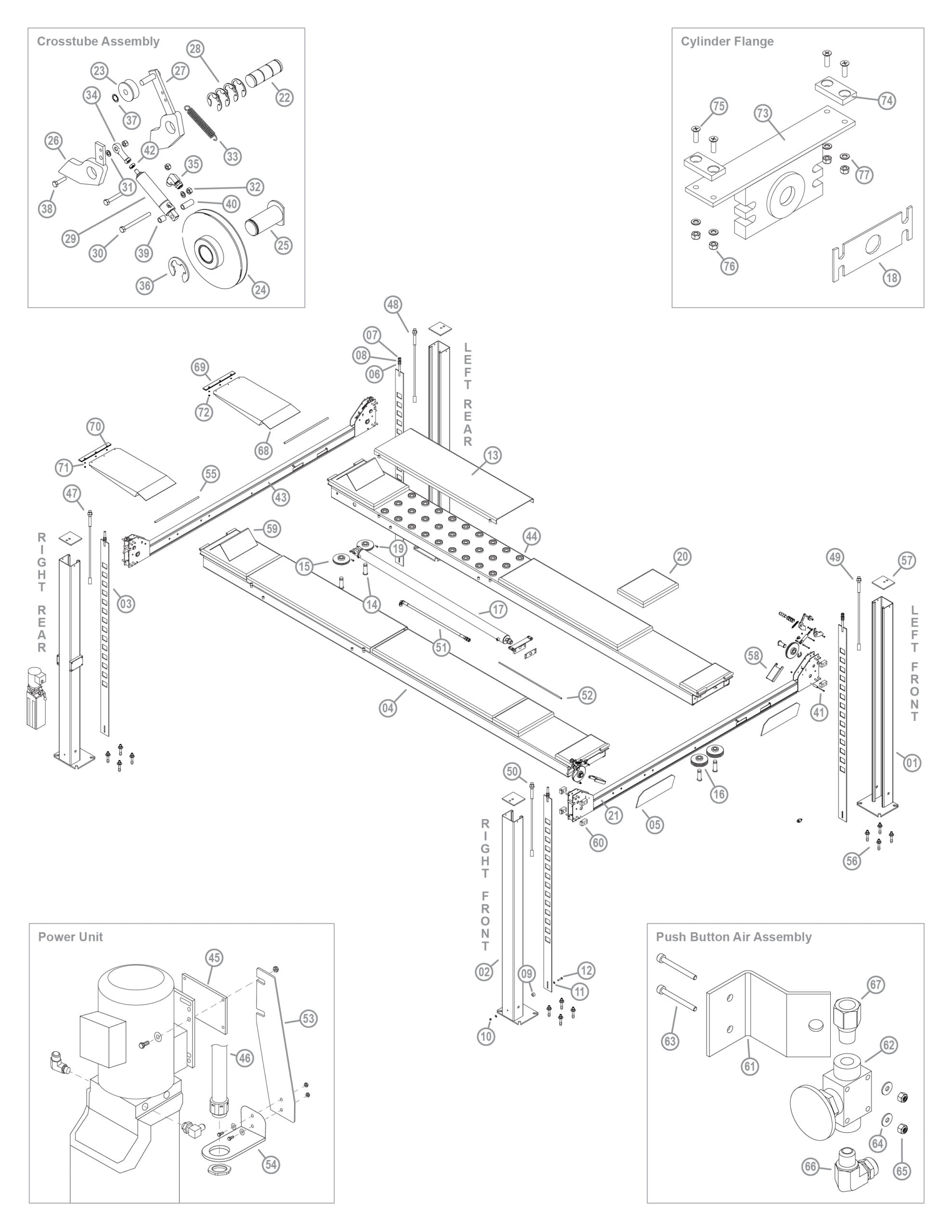

Parts for BendPak HD-9AE

Above Ground Alignment Lift – BendPak Lift – HD-9AE

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your Rolling Jack BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601136
Right Rear Column (Power) HD-9
1

2
5601135
RF,LF, LR Column HD-9
3

3
5600920
Lock Ladder
4

4
5215513
Off Side Ramp Assembly
1

5
5600890
Wheel Stop Plate
2

6
5535021
Hex Nut M16
4

7
5535008
Nylock Hex Nut M16
4

8
5545025
Flatwasher M16
4

9
5746381
Safety Ladder Spacer
4

10
5535013
Nylock Hex Nut M10
4

11
5545341
Flatwasher M10
8

12
5530167
Hex Head Capscrew
4

13
5600593
Slip Plate Weldment
1

14
5600900
Ramp Cable Sheave Shaft
4

15
5215122
Single Cable Sheave
2

16
5215123
Dual Cable Sheave
2

17
5502165
Hydraulic Cylinder for HD12B
1

18
5731309
Cable Retainer Plate
1

19
5530776
SHCS M8 x 1.25 x 20mm
4

20
5700237
Filler Plate
1

21
5601820
Crosstube Weldment (Small Window)
1

22
5746008
Safety Pin
4

23
5575420
Safety Roller Sheave
4

24
5215122
Single Cable Sheave
4

25
5600160
Crossbeam Sheave Shaft
4

26
5600760
Safety Pawl
4

27
5600044
Slack Safety Pawl
4

28
5540275
Retaining Ring 25mm OD
16

29
5502195
Lock Release Air Cylinder
4

30
5530005
Ramp Roller Pin HD12
12

31
5545005
Flat Washer M6
8

32
5535357
Ramp Roller Nut
16

33
5540065
Slack Safety Spring
4

34
5505625
Female Rod End
4

35
5550087
Elbow Fitting -04 Comp to -02 NPT
4

36
5540010
Retaining Ring 32mm OD
4

37
5505030
E-Clip 10mm
4

38
5530756
Hex Bolt, M6 x 1.0 x 25mm
4

39
5755136
12mm Air Cylinder Spacer
4

40
5755137
25mm Air Cylinder Spacer
4

41
5755157
Crossbeam Spacer
4

42
5535230
Nut, 1/4-28 JN
4

43
5601819
Crosstube Weldment (Large Window)
1

44
5575375
Slip Plate Caster Assembly GV-4P-12
54

45
5715003
Power Unit Vibration Dampener
1

46
5216139
Flex Tube Kit
1

47
5595377
Cable, Lifting HD-9AE 3865 mm
1

48
5595378
Cable, Lifting HD-9AE 5350 mm
1

49
5595379
Cable, Lifting HD-9AE 8601 mm
1

50
5595381
Cable, Lifting HD-9AE 10101 mm
1

51
5570022
Hose Assembly, 6.4 dia x 133"
1

52
5570795
Poly-Flo Tubing (17000*mm)
17000mm

53
5700029
Flex Tube Bracket Plate
1

54
5700033
Flex Tube Angle
1

55
5745014
Approach Ramp Pin
4

56
5530456
Wedge Anchor Bolt
16

57
5600405
Column Top Plate
4

58
5716630
Crossbeam Cover
4

59
5700072
Wheel Chock
2

60
5716005
Plastic Slide Block
16

61
5700031
Mounting Bracket
1

62
BH-7471-2190
5590175
Push Button Air Valve
1

63
5530043
SHCS M3 x 0.5 x 30
2

64
5545024
Flatwasher M3
2

65
5535020
Nylock Nut M3 x 0.5
2

66
5550087
Elbow Fitting -04 Comp x -02 NPT
1

67
5550486
FTG NPL -02 NPT X -04 F NPT
1

68
5600194
Approach Ramp Weldment
2

69
5716054
Ramp Edge Guard
2

70
5530093
Hex Bolt M6 x 1 x 20
6

71
5545005
Flatwasher M6
6

72
5535357
Ramp Roller Nut
6

73
5601303
Cylinder Flange Arm
1

74
5715031
Cylinder Cable Block Arm Slide
2

75
5530244
FHPS M6 x 1.0 x 20mm
4

76
5535357
Ramp Roller Nut
4

77
5545005
Flat Washer M6
4
