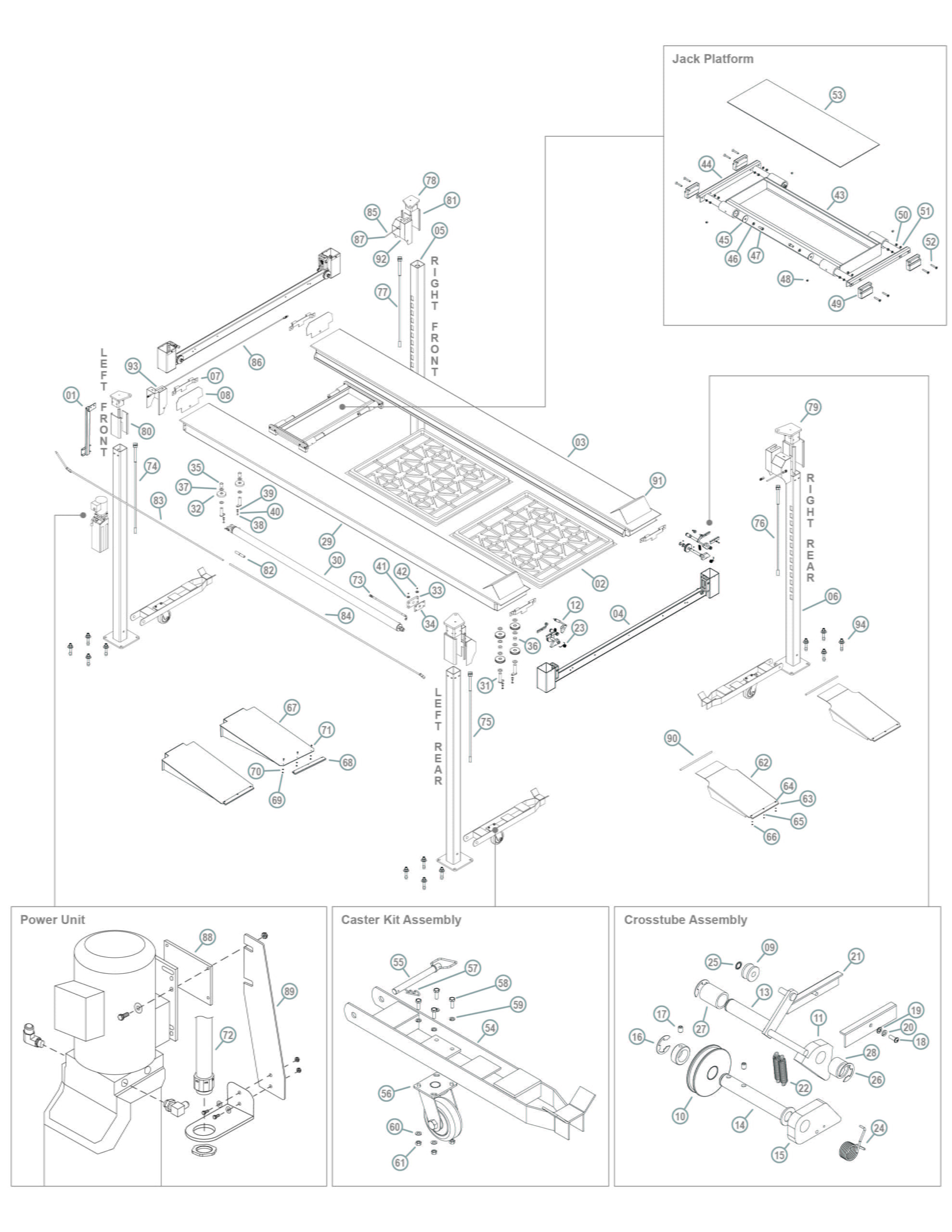

Parts for BendPak GP-9XLT

Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – GP-9XLT

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601467
Power Unit Holder Weldment
1

2
5700380
Polyethylene Drip Tray
2

3
5601325
Offside Runway Weldment
1

4
5601313
Crosstube Weldment
2

5
5601321
Left Post Weldment
2

6
5601322
Right Post Weldment
2

7
5601451
Approach Ramp Mount Weldment
4

8
5735722
Tire Stop Plate
2

9
5575052
Slack Safety Sheave
4

10
5215831
Sheave Assembly
4

11
5601319
Slack Safety Weldment, L.H.
2

12
5601320
Slack Safety Weldment, R.H.
2

13
5746478
Cross tube Pin
4

14
5601463
Cable Pulley Pin Weldment
4

15
5737098
Lower Safety Latch
4

16
5540045
E-Ring, 25mm dia Truarc 5133-100
12

17
5530108
SSS M8 x 1.25 x 12
8

18
5530148
BHPS M6 x 1 x 16
8

19
5545005
Flat Washer, M6
8

20
5545026
Washer, M6
8

21
5731069
Carriage Cover
8

22
5540018
Spring 12.7 dia x 70.6, Slack Safety
8

23
5540038
3 Wire 26.0 dia R.H.
2

24
5540039
3 Wire 26.0 dia L.H.
2

25
5505030
Push-On Clip 10mm dia SS
4

26
5755166
Slack Safety Spacer, Short
4

27
5755167
Slack Safety Spacer, Long
4

28
5701572
Sheave Spacer 14mm THK
4

29
5601326
Power Side Runway Weldment
1

30
5502166
Hydraulic Cylinder 3" x 82" HD-7/9 Series
1

31
5601316
Pulley Pin Weldment
4

32
5215831
Sheave Assembly
6

33
5735694
Cable Pull Block
1

34
5735696
Cable Lock Plate
1

35
5701620
Sheave Spacer, 42mm
2

36
5701619
Sheave Spacer, 15mm
2

37
5545006
Washer, M24 x 44mm
12

38
5530160
BHPS M8 x 1.25 x 20
4

39
5545341
Washer, M10 x 20 dia Flat
4

40
5545202
Washer, M8 x 15 dia
4

41
5716050
Cylinder Guide Slider Block
2

42
5530400
FHPS M6 X 1.0 X 12mm
2

43
5601314
Platform Weldment
1

44
5620496
Extension Arm Weldment
2

45
5545046
Washer, M8 x 38 x 1.5mm
4

46
5545202
Washer, M8
4

47
5530776
SHCS M8 x 1.25 x 20mm
4

48
5530161
SSS M8 x 1.25 x 8
4

49
5716052
Slider Block
4

50
5535357
Ramp Roller Nut
8

51
5545005
Flat Washer M6
8

52
5530358
FHSS M6 x 1 x 40
8

53
5715036
Rubber Pad Liner
1

54
5601312
GP-9 Caster Frame
1

55
5601343
Caster Kit Pin Weldment
4

56
5575056
Swivel Caster
4

57
5505350
Hair Pin, Large
4

58
5530021
Hex Bolt, M10 x 1.5 x 30
16

59
5545200
Washer, M10 x 18 dia SL
16

60
5545341
Washer, M10 x 20 dia Flat
16

61
5535998
Nut, M10 x 1.5
16

62
5601403
Approach Ramp Weldment
2

63
5716054
Ramp Edge Guard
2

64
5530093
Hex Bolt M6 x 1 x 20
6

65
5545005
Flat Washer M6
6

66
5535357
Ramp Roller Nut
6

67
5601344
Aluminum Approach Ramp Weldment
2

68
5716054
Ramp Edge Guard
2

69
5535357
Ramp Roller Nut
6

70
5545005
Flat Washer M6
6

71
5530093
Hex Bolt M6 x 1 x 20
6

72
5216140
Flex Tube Kit
1

73
5570044
Hydraulic Hose Assembly
1

74
5595572
Cable, Lifting - 9293mm
1

75
5595573
Cable, Lifting - 7851mm
1

76
5595574
Cable, Lifting - 4619mm
1

77
5595575
Cable, Lifting - 9293mm
1

78
5601323
Left Top Plate Weldment
2

79
5601324
Right Top Plate Weldment
2

80
5716075
Carriage Slide Block, Inside
4

81
5716076
Post Slide Block, Outside
4

82
5601318
Safety Connect Sleeve Weldment
1

83
5601354
Safety Handle Rod Weldment
1

84
5620633
Safety Weldment
1

85
5755076
Adjust Safety Bar, 216mm
2

86
5755074
Adjust Safety Bar, 2089mm
2

87
5505066
Female Rod End M8 x 36
8

88
5715003
Power Unit Vibration Dampener
1

89
5700375
Flex Tube Bracket
1

90
5745036
Drive Up Ramp Pin
2

91
5700072
Wheel Chock
2

92
5701652
Safety Cover R.H.
2

93
5701653
Safety Cover L.H.
2

94
5530456
Anchor Bolt 3/4" x 4-3/4"
16
