Parts for Ben Pearson LMT 6

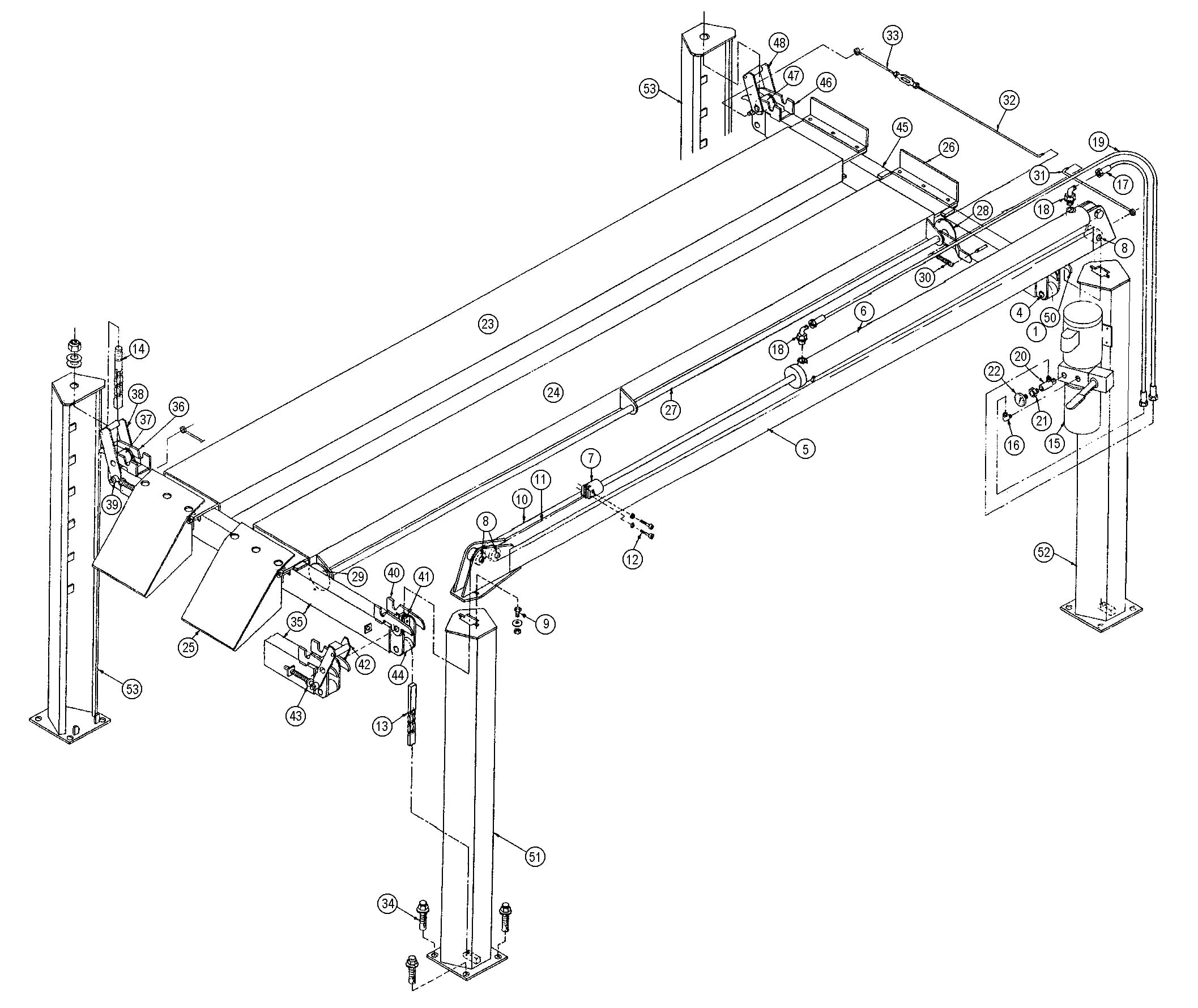

Above Ground / Surface Mount 4-Post Lifts – Ben Pearson – LMT 6

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7114-14
80619
1
Chain Retainer
View
2*
BH-7114-19
80790
1
Slack Chain Structure
View
3*
BH-7114-12
80797
1
Rod Structure Tension
View
4
BH-7230-30
80028
1
2-3/4" Chain Roller 3/4" Bore
View
5
BH-7114-20
80599
1
Upper Horizontal Tube Structure
View
6
BH-7114-21
80607
1
Hydraulic Cylinder 66” Stroke
View
*
BH-7114-22
80608
1
Cylinder Seal Kit
View
7
BH-7114-23
80606
1
Cylinder End Connector
View
8
BH-7230-30
80028
1
2-3/4" Chain Roller 3/4" Bore
View
9
BH-7110-78
80453
4
Hex Screw
View
10
BH-7114-24
80638
1
Leaf Chain, Short
View
11
BH-7114-25
80637
1
Leaf Chain, Long
View
12
BH-7100-98
80063
4
Cap Screw
View
--
BH-7114-26
80635
2
Cross Chain Assy w/Adj Stud
View
13
BH-7114-27
80636
1
Chain
View
13
BH-7101-51
80139
2
Connecting Link
View
14
BH-7101-49
80023
1
Special Stud
View
15
BH-7006-01
1
Power Unit 1 PH, 2 HP
View
16
BH-7101-64
80133
1
90° Male Elbow
View
17
BH-7100-93
80126
1
Short Hose Assy 1/2 ID
View
18
BH-7101-59
80131
2
90° Male Elbow
View
19
BH-7101-60
80125
1
Long Hose Assy 1/2 ID
View
20
BH-7101-63
80132
1
Male Branch Tee
View
21
BH-7101-62
CP-2878
1
Reducer Bushing
View
22
BH-7101-61
80124
1
Dry Pressure Gauge
View
23
BH-7114-28
80622
1
Track Structure LH
View
24
BH-7114-29
80623
1
Track Structure RH
View
25
BH-7100-55
80631
2
Ramp Structure
View
26
BH-7100-52
80629
2
Track Stop Angle
View
26
BH-7100-53
80630
2
Angle Retainer
View
27
BH-7114-30
80633
1
Trip Release Tube
View
28
BH-7114-31
80533
1
Trip Release Handle Structure
View
29
BH-7114-32
80537
1
Trip Release Pivot Structure
View
30
BH-7101-75
CP-1587
1
Spring
View
31
BH-7114-33
80640
2
Trip Linkage Rod Structure, Short
View
32
BH-7114-34
80639
2
Trip Linkage Rod, Long
View
33
BH-7114-35
80105
2
Turnbuckle Assy
View
33
BH-7114-36
80099
1
Rod End Structure
View
33
BH-7114-37
80096
1
Turnbuckle
View
34
BH-7075-03L
80062
16
3/4 x 5-1/2 Wedge Anchor
--
BH-7114-08
80610
1
Rear Cross Tube Assy #s 35-44
View
35
BH-7114-09
80612
1
Rear Cross Tube Structure
View
36
BH-7114-10
80616
1
Catch Structure
View
37
BH-7230-30
80028
1
2-3/4" Chain Roller 3/4" Bore
View
38
BH-7114-11
80792
1
Slack Chain Structure
View
39
BH-7114-12
80797
1
Rod Structure Tension
View
40
BH-7114-13
80617
1
Catch Structure
View
41
BH-7114-14
80619
1
Chain Retainer
View
42
BH-7114-15
80789
1
Slack Chain Structure
View
43
BH-7114-12
80787
1
Rod Structure Tension
View
44
BH-7230-30
80028
1
2-3/4" Chain Roller 3/4" Bore
View
--
BH-7114-16
80611
1
Front Cross Tube Assy #’s 45 - 50 & 1 - 4
View
45
BH-7114-17
80613
1
Front Cross Tube Structure
View
46
BH-7114-13
80617
1
Catch Structure
View
47
BH-7230-30
80028
1
2-3/4" Chain Roller 3/4" Bore
View
48
BH-7114-18
80791
1
Slack Chain Structure
View
49*
BH-7114-12
80797
1
Rod Structure Tension
View
50
BH-7114-10
80616
1
Catch Structure
View
51
BH-7114-05
80591
1
Post Structure Main
View
52
BH-7114-06
80592
1
Post Structure Main Pwr. Unit Mount
View
53
BH-7114-07
80593
2
Post Structure Offside
View
*
BH-7114-38
80050
1
Tire Chock Structure
View

* Not Pictured
