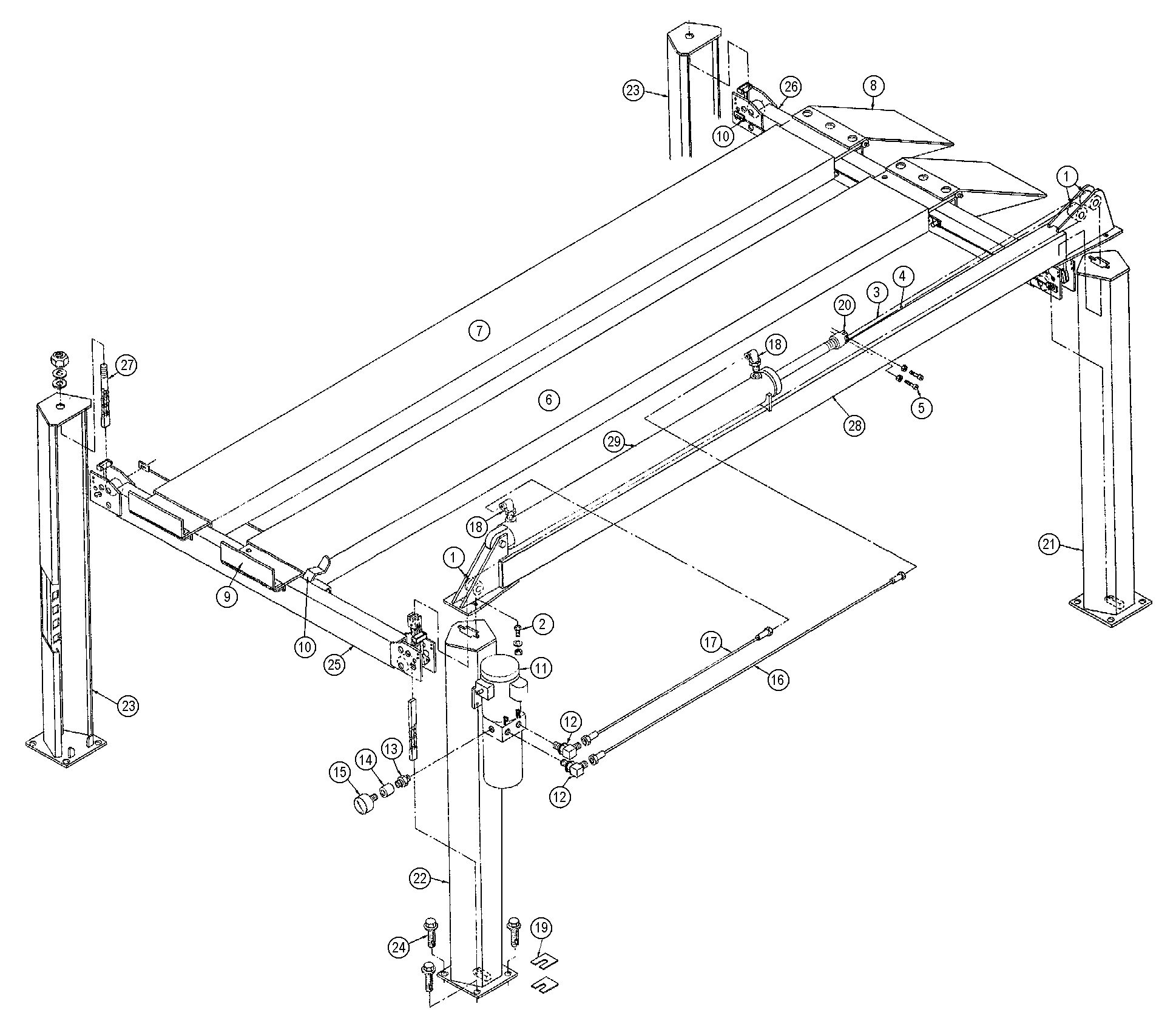

Parts for Ben Pearson LMT 12

Above Ground / Surface Mount 4-Post Lifts – Ben Pearson – LMT 12

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7230-30
80028
3
2-3/4" Chain Roller 3/4"
View
2
BH-7110-78
80453
4
Hex Screw
View
3
BH-7111-82
81117
1
Leaf Chain Short LMT 12
View
4
BH-7111-83
81118
1
Leaf Chain Long LMT 12
View
5
BH-7100-98
80063
2
Cap Screw
View
6
BH-7100-59
81111
1
LH Track Structure LMT 12
View
7
BH-7100-58
80102
1
RH Track Structure LMT 12
View
8
BH-7100-54
81340
2
Ramp Assy
View
8
BH-7100-55
80631
2
Ramp Structure
View
8
BH-7100-56
80069
2
Rod (Ramp to Pivot)
View
8
BH-7100-57
80627
2
Ramp Pivot Structure
View
9
BH-7100-52
80629
2
Track Stop Angle
View
9
BH-7100-53
80630
2
Angle Retainer
View
10
See Breakdown
1
Handle Pivot Tube Linkage
11
BH-7006-01
1
Power Unit 1PH, 2 HP
View
12
BH-7110-63
82056
2
90° Male Elbow
View
13
BH-7111-71
61496
1
Hex Nipple
View
14
BH-7111-65
82066
1
Coupling
View
15
BH-7101-61
80124
1
Dry Pressure Gauge
View
16
BH-7101-60
80125
1
Hose Assy 1/2 ID Long
View
17
BH-7100-93
80126
1
Hose Assy 1/2 ID Short
View
18
BH-7101-59
80131
2
90° Male Elbow
View
19
BH-7512-92
80589
1
Shim Kit 150 pcs, 3 Sizes
View
20
BH-7101-25
80079
1
Cylinder End Connnector
View
21
BH-7101-58
81051
1
Post Structure Main
View
22
BH-7101-57
81052
1
Post Structure Main Pwr. Unit Mount
View
23
BH-7110-23
81053
2
Post Structure Offside
View
24
BH-7075-03L
80062
16
3/4 x 5-1/2 Wedge Anchor
25
BH-7101-56
81120
1
Front Cross Tube Assy LMT 12
View
26
BH-7100-99
81119
1
Rear Cross Tube Assy LMT 12
View
27
BH-7111-81
81721
2
Cross Chain Assy LMT 12
View
27
BH-7101-80
81722
1
Chain
View
27
BH-7101-49
80023
1
Chain Retainer Bolt
View
27
BH-7101-51
80139
1
Connectng Link
View
28
BH-7100-95
80001
1
Upper Horizontal Tube LMT 12
View
29
BH-7100-68
80078
1
Hydraulic Cylinder
View
29
BH-7100-83A
80026CK
1
Seal Kit LMT 12 & LMT 9 Serial # <22316
View
29
BH-7100-73A
80078CK
1
Seal Kit LMT 12 & LMT 9 Serial # >22316
View
*
BH-7114-49
80980
1
Free Wheeler Device Assy
View
*
BH-7112-73
80335
2
Narrow Side Assy
View
*
BH-7114-50
83088
1
Muffler Guard Kit
View

* Not Pictured

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
