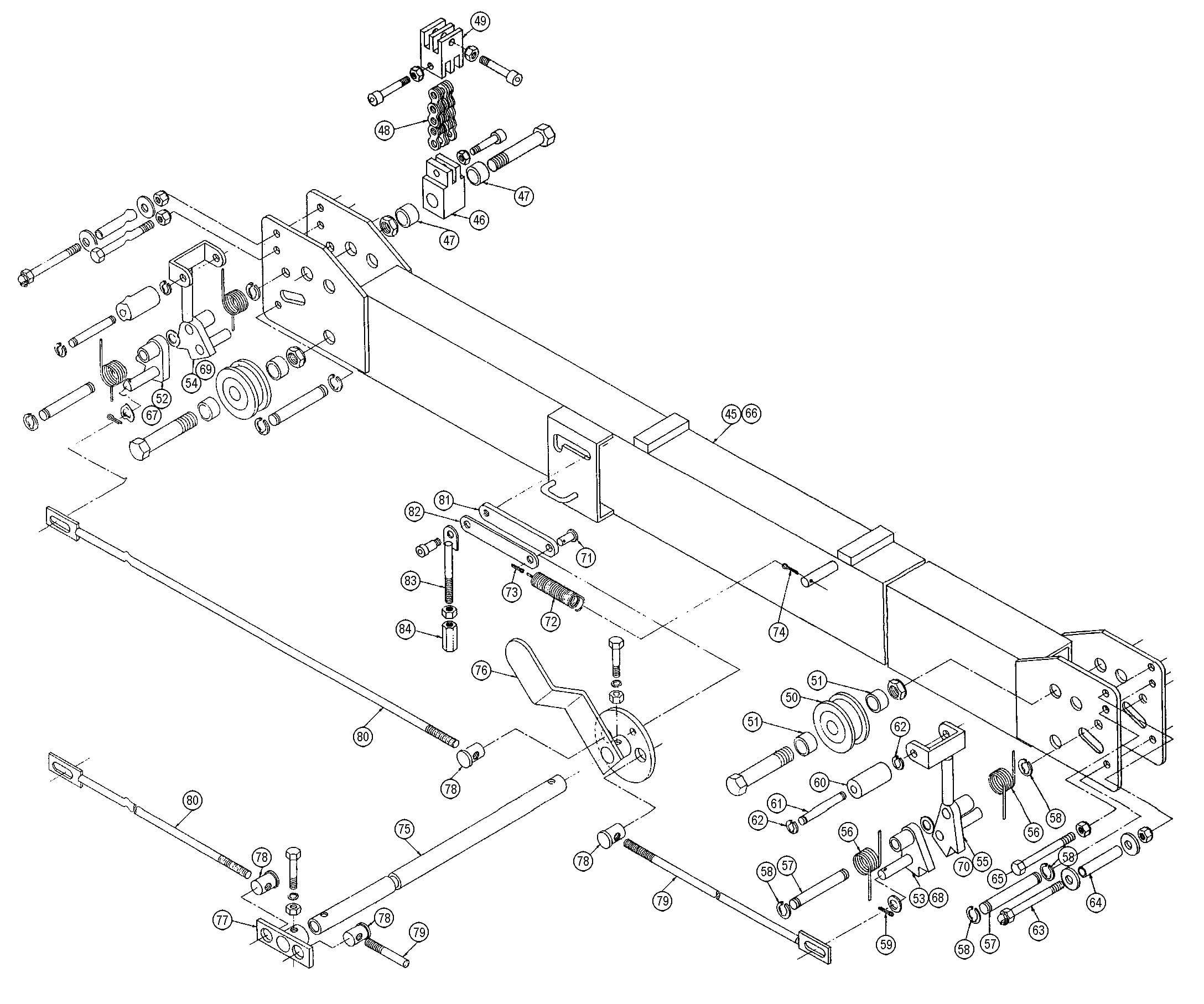

Parts for Ben Pearson FAR 12 Cross Tube

Above Ground / Surface Mount 4-Post Lifts – Ben Pearson – FAR 12

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

--
BH-7111-79
83178
1
Front Cross Tube Assy (#’s 45-65)
View
45
BH-7111-88
83179
1
Front Cross Tube Structure
View
46
BH-7101-70
81083
1
Lower Chain Retainer
View
47
BH-7101-69
81084
2
Spacer
View
48
BH-7101-68
81085
1
Chain Extension
View
49
BH-7101-45
81086
1
Upper Chain Retainer
View
50
BH-7230-30
80025
2
2-3/4" Chain Roller 3/4" Bore
View
51
BH-7102-42
81067
4
Spacer
View
52
BH-7110-12
81068
1
LH Latch Catch
View
53
BH-7110-11
81069
1
RH Latch Catch
View
54
BH-7110-17
81074
1
Latch Structure Slack Chain LH
View
55
BH-7110-24
81075
1
Latch Structure Slack Chain RH
View
56
BH-7110-13
81072
4
Torsion Spring
View
57
BH-7100-89
81073
4
Shaft 5/8”
View
58
BH-7100-88
100276
8
Retaining Ring
View
59
F-CP-125-0750
100175
2
Cotter Pin
View
60
BH-7102-38
81079
2
Roller
View
61
BH-7102-39
81080
2
Shaft 3/8”
View
62
BH-7100-86
80683
4
Retaining Ring 3/8”
View
63
BH-7110-18
81479
2
Hex Screw w/Grease Fitting
View
64
BH-7102-31
81176
2
Tube Spacer
View
65
F-HC-0375-16-4000
81081
2
Hex Screw
View
--
BH-7111-80
83176
1
Rear Cross Tube Assy - See Front Tube Layout
View
46
BH-7101-70
81083
1
Lower Chain Retainer
View
47
BH-7101-69
81084
2
Spacer
View
48
BH-7101-68
81085
1
Chain Extension
View
49
BH-7101-45
80186
1
Upper Chain Retainer
View
50
BH-7230-30
80028
2
2-3/4" Chain Roller 3/4" Bore
View
51
BH-7102-42
81067
4
Spacer
View
56
BH-7110-17
81072
4
Torsion Spring
View
57
BH-7100-89
81073
4
Shaft 5/8”
View
58
BH-7100-88
100276
8
Retaining Ring 5/8”
View
59
F-CP-125-0750
100175
2
Cotter Pin
View
60
BH-7102-38
81079
2
Roller
View
61
BH-7102-39
81080
2
Shaft 3/8”
View
62
BH-7100-86
80683
4
Retaining Ring 3/8”
View
63
BH-7110-18
81479
2
Hex Screw w/Grease Fitting
View
64
BH-7102-31
81176
2
Tube Spacer
View
65
F-HC-0375-16-4000
81081
2
Hex Screw
View
66*
BH-7111-90
83177
1
Rear Cross Tube Structure
View
67*
BH-7110-11
81069
1
RH Latch Catch
View
68*
BH-7110-12
81068
1
LH Latch Catch
View
69*
BH-7110-24
81075
1
RH Slack Chain
View
70*
BH-7110-17
81074
1
LH Slack Chain
View
71
BH-7101-19
81103
1
Pin
View
72
BH-7110-14
100154
1
Spring
View
73
F-CP-125-0750
100175
1
Cotter Pin 3/4”
View
74
F-CP-125-1000
100190
1
Cotter Pin 1”
View
75
BH-7101-74
81112
1
Tube Structure Pivot
View
76
BH-7101-54
81088
1
Handle Assy
View
77
BH-7101-72
81092
1
Pivot Structure Trip Release
View
78
BH-7110-20
81095
4
Pivot Pin
View
79
BH-7111-87
83239
2
Adjusting Rod Straight Long
View
80
BH-7111-92
83241
2
Adjusting Rod Straight Short
View
81
BH-7101-20
81102
1
Bar Tapped
View
82
BH-7101-22
81101
1
Bar
View
83
BH-7101-23
81251
1
Rod Structure 3/8”
View
84
BH-7105-09
81253
1
Nut
View

* Not Pictured Correctly
