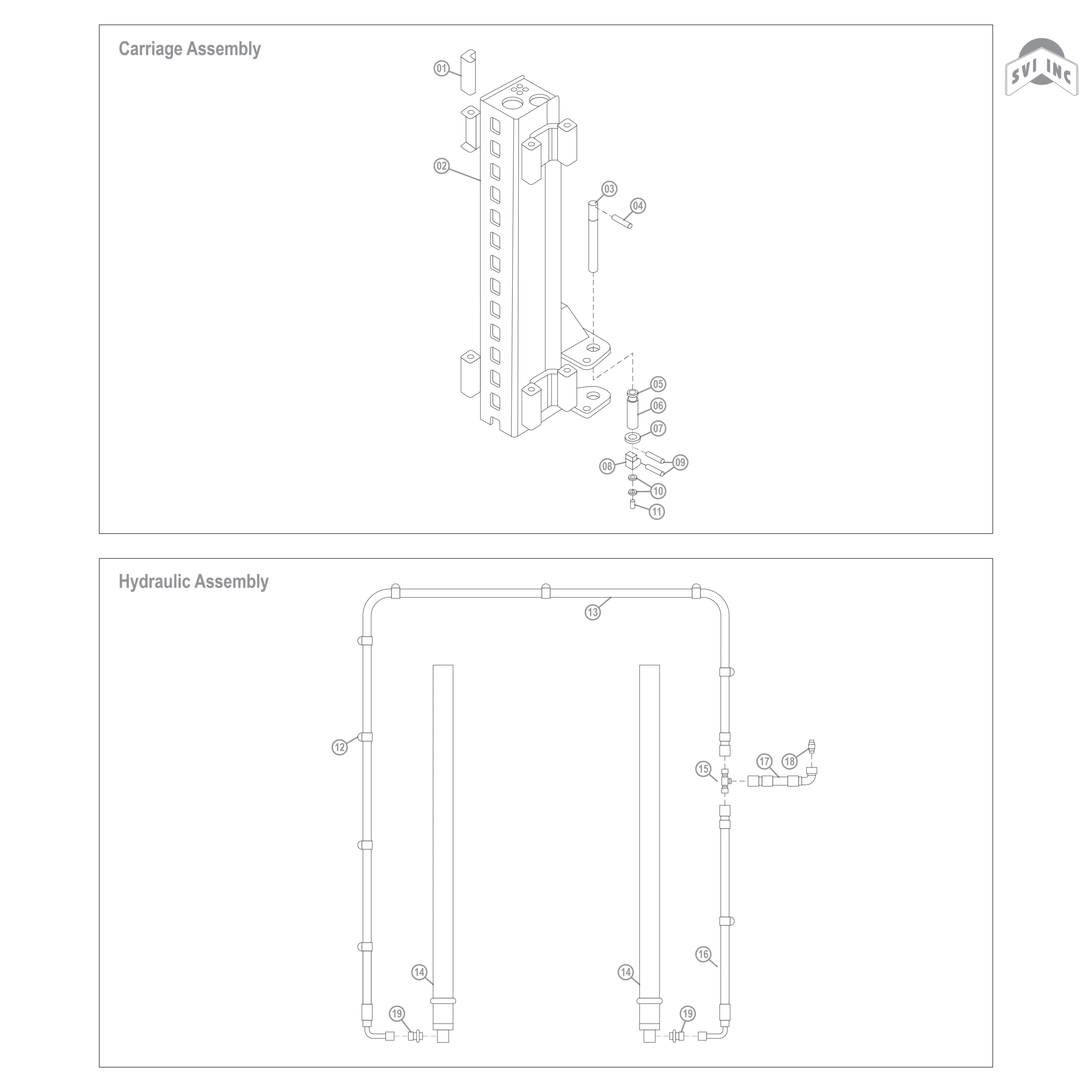

Parts for Ben Pearson 9000SA Series (Hydraulics & Carriage)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7106-07
91564
16
Block – Bearing
View
2
Call for Details
91513
2
Carriage Structure
View
3
BH-7116-39
91581
4
Shaft – Arm Restraint
View
4
BH-7116-43
103018
4
Roll Pin (1/4" x 2-1/2")
View
5
BH-7116-44
103019
4
Snap Ring (1")
View
6
BH-7116-41
103017
4
Spring – Actuating Arm Restraint
View
7
BH-7101-50
100143
4
Flat Washer – SAE (1")
View
8
BH-7116-40
91582
4
Gear – Locking
View
9
BH-7116-42
103009
8
Roll Pin (3/16" x 1-1/2")
View
10
BH-7116-48
100088
6
Flat Washer – SAE (5/16")
View
11
BH-7116-47
101027
4
Socket Head Cap Screw (5/16-18 x 3/4")
View
12
BH-7111-77
61412
9
Clamp – Hose
View
13
Call for Details
92500
1
Hydraulic Hose
View
14
BH-7110-29
91586
2
Cylinder
View
15
Call for Details
105078
1
Tee – Union (9/16 JIC)
View
16
Call for Details
92501
1
Hydraulic Hose
View
17
Call for Details
92480
1
Hydraulic Hose
View
18
BH-7111-69
60544
1
Adapter – ORB to JIC (9/16 ORB x 9/16 JIC)
View
19
Call for Details
100037
2
Connector – Straight NPT
View

Hydraulic Hose Extension (EH1)

Hydraulic Hose Extension (EH2)
