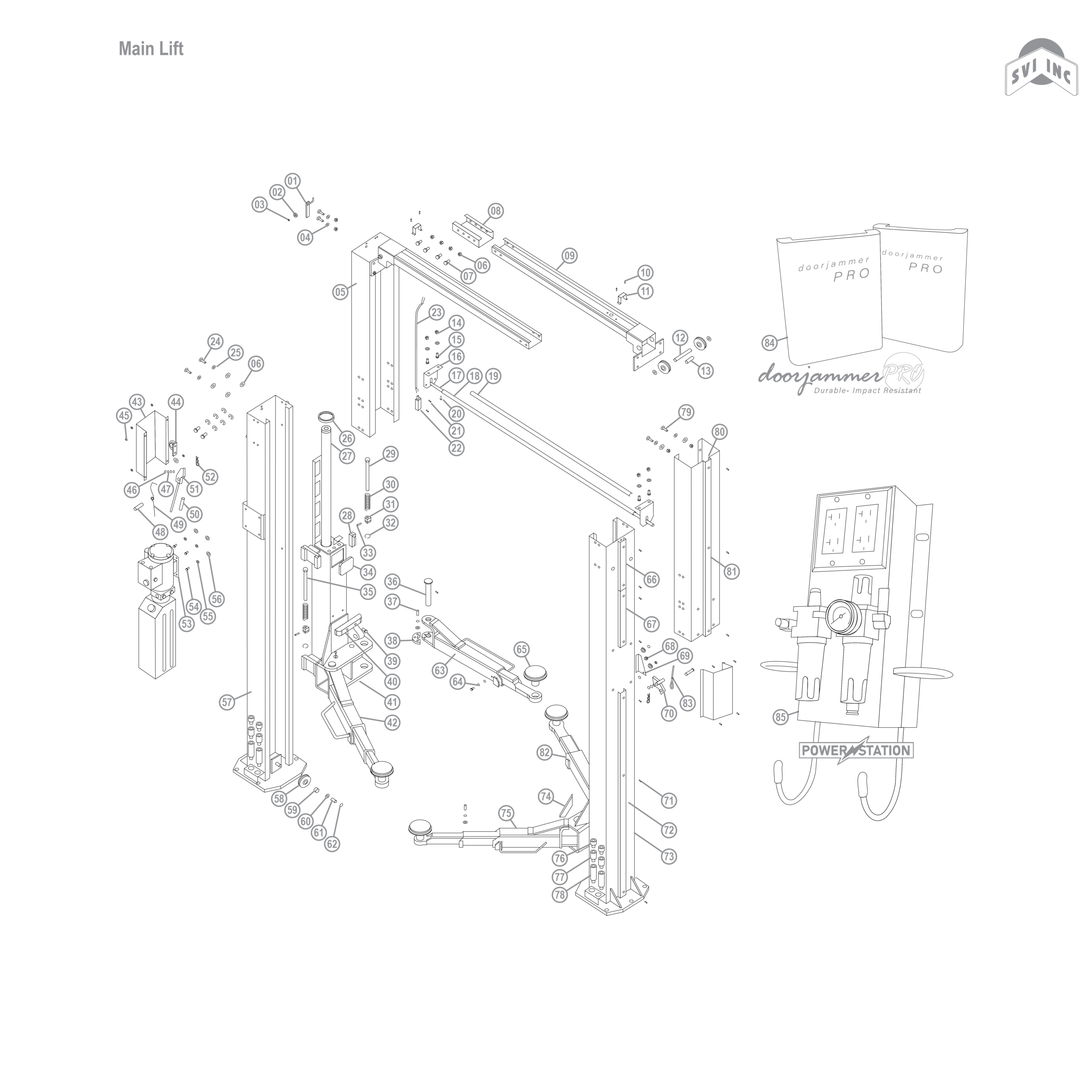

Parts for Atlas OH9000 Series (Main Lift)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
206010
1
Bracket – Safety Pulley

2
206009
5
Pulley – Plastic

3
209010
5
Snap Ring

4
209033
4
Washer

5
206008
2
Column – Extension

5
206008A
1
Column – Extension

6
209056
28
Nut – Nylok

7
206017
8
Bolt – Hex

8
206016
1
Bracket – Connecting

9
206018
2
Beam – Top with Bracket

10
206028
4
Bolt – Cup Head

11
206029
2
Retainer

12
206021
2
Pin – For Pulley

13
206022
2
Tube – Top Pulley

14
206023
12
Nut – Nylok

15
206041
4
Bolt – Hex

16
206042
2
Bracket – Control Bar Support

17
206025C
2
Pin – Connecting for Control Bar

18
206025
1
Bar – Control

19
206025A
1
Cushion – Foam

20
201005
2
Pin – Split

21
206011
2
Bolt – Cup Head

22
206013
1
Limit Switch

23
206015A
1
Cable – Wire

23
206015B
1
Cable – Wire

24
209126
20
Bolt – Hex

25
209022
58
Washer

26
209111
2
Ring – Protective for Cylinder

27
217056
2
Hydraulic Cylinder

28
206044
16
Block – Slider

29
206046A
2
Bar – Arm Lock

30
206050A
4
Spring

31
217044
4
Lock – Arm

32
206032
4
Snap Ring

33
206036
4
Pin – Hair

34
209016
2
Cover – Carriage Plastic

35
206046B
2
Bar – Arm Lock

36
217047
4
Pin – Arm

37
206048
12
Bolt – Socket

38
206049
4
Gear – Moon

39
206046
4
Screw – Self-Tapping

40
206045
2
Rubber – Protective

41
206052A
2
Carriage

42
206075
1
Lifting Arm – Front Right (Drop-In)

43
206081
2
Cover – Safety

44
206004A
1
Bracket – Safety Pulley

45
209009
8
Bolt – Cup Head

46
206023A
4
Nut – Hex

47
206006
24
Washer

48
206002
2
Pin – Safety

49
209007
2
Spring – Safety

50
206003
1
Cushion – Handle Protective Plastic

51
206004
1
Lock – Power Side Safety

52
209012
2
Pin – Hair

53
209002
1
Power Unit – Manual

54
209003
8
Bolt – Hex

55
209004
4
Ring – Rubber

56
209005
8
Nut – Nylok

57
206001
1
Column – Power Side Inner

58
206020
6
Pulley

59
209057A
6
Bushing – Bronze for Pulley

60
206059
2
Washer

61
206058
2
Bolt – Hex

62
206019
6
Snap Ring

63
206076
1
Lifting Arm – Rear Right (Drop-In)

64
209039
18
Washer – Lock

65
680030
4
Support – Rubber Pad Frame

66
206080-3
2
Cover – Protective C

67
206080-2
2
Cover – Protective B

68
206008A
4
Bolt – Hex

69
206008B
1
Bracket – Safety Pulley

70
206026
1
Lock – Offside Safety

71
206079
20
Bolt – Cup Head

72
206080-1
2
Cover – Protective A

73
206030
1
Column – Offside Inner

74
206072
4
Rubber – Protective Set

75
206077
1
Lifting Arm – Front Left (Drop-In)

76
209051
4
Adapter – Stackable (1.5")

77
209052
4
Adapter – Stackable (3")

78
209053
4
Adapter – Stackable (6")

79
206024
8
Bolt – Hex

80
206010A
1
Bracket – Safety Pulley

81
206080-4
2
Cover – Protective D

82
206078
1
Lifting Arm – Rear Left (Drop-In)

83
206065
1
Cable – Safety

83
206065A
1
Cable – Safety

84
Doorjammer Pro (12")

84
Doorjammer Pro (24")

85
Power Station (2-Post)
