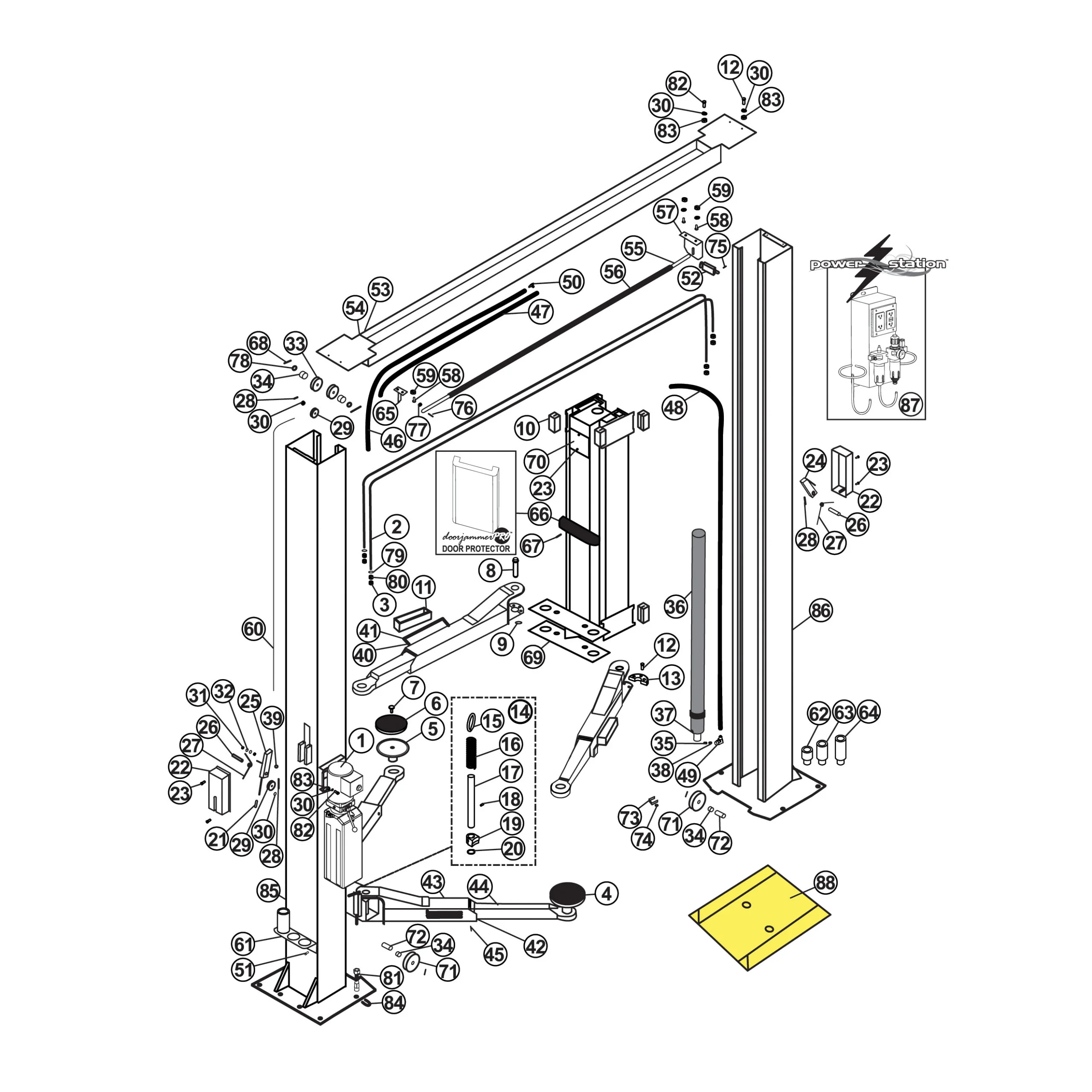

Parts for Atlas Lift OH-10X

Above Ground / Surface Mount 2-Post Lifts – Atlas – OH-10X (Updated ATTD Style)

Repair parts for Atlas Lifts Model OH-10X are available from SVI.

SVI is the go-to supplier for repair parts for Atlas Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units and parts, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Atlas lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Atlas Lift OH-10X:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
0302020
1
Hydraulic Power Unit

2
Z33A500200
2
Equalizer Steel Cable

3
0204032
2
Nut M16

4
Z23N330000
4
Adapter Base and Pad Assembly

5
Z23N331000
4
Adapter Base Only

6
Z31B330001
4
Round Rubber Pad

7
0202032
4
Screw M6X16

8
Z11G500100
4
Arm Pin

9
0212023
4
Retaining Ring D38

10
Z11G210001
16
Slider Block

11
Z11H310002
4
Tool Box for Lift Arm

12
0201050
16
Screw M10X35

13
Z23A310001
4
Arm Restraint Main Gear

14
Request Details
4
Arm Restraint Engage Gear / Shaft KIT

15
Z23A200006
2
Arm Restraint Release Ring

16
Z23A200005
2
Spring

17
Z11G200004
2
Arm Restraint Pin

18
0213052
2
Roll Pin 6X40

19
Z23A200003
2
Arm Restraint Engage Gear

20
0212004
2
Retaining Ring D25

21
0606024
1
Handle Cover

22
Z31A110003
1
Lock Latch Cover with Hole - Power Side

22
Z31A110003A
1
Lock Latch Cover - Offside

23
0206036
6
Screw M6X8

24
Z31A122000
1
Safety Lock Latch - Offside

25
Z31A112000
1
Safety Lock Latch - Power Side

26
Z31A110001
2
Shaft

27
Z31A110002
2
Spring

28
0213044
1
Split Pin 2X20

29
Z31A110004
3
Lock Release Sheave / Pulley

30
0205011
13
Washer D10

31
0203023
2
Nut M12

32
0205013
2
Washer D12

33
Z31A110005
4
Cable Sheave / Pulley

34
0210112
6
Bushing

35
7530-Y-3
2
Spring

36
Z23AY20000
2
Hydraulic Cylinder

37
Z23AY20000x
--
Seal Kit for Hydraulic Cylinder

38
6246-Y1.8
2
Flow Restrictor

39
0606024
2
Cable Relief

40
0202104
8
Screw M8X18

41
Z11H310001
4
Welded Handle

42
Z11G310000
4
Long Arm Assembly

43
Z11G311000
4
Long Arm Outer Frame

44
Z11G312000
4
Long Arm Inner Arm Extension

45
0206061
4
Screw M8X12

46
WW4330
1
Hydraulic Hose to PU 170-1/2” (4330mm) Long

47
ZW5350
1
Hydraulic Hose 210-5/8” (5350mm) Long

48
ZW5500
1
Hydraulic Hose 216-1/2” (5500mm) Long

49
0303123
2
Union

50
0303021
1
Tee Union 1/4

51
0206034
4
Screw M8X10

52
0505018
1
Limit Switch

53
Z33A400000
1
Overhead Beam Assembly

54
Z33A410000
1
Beam Weldment

55
Z23A400001AM
1
Overhead Stop Bar

56
Z23A400002
1
Overhead Stop Bar Cushion

57
2L-1-07
1
Overhead Stop Bar Support

58
0206032
4
Screw M6X16

59
0203035
4
Nut M6

60
Z33A500300
1
Safety Lock Release Cable

61
Z33A601101
2
Support

62
XSZ-7-5-1
4
Nesting Height Extension 2” (50mm)

63
XSZ-7-5-2
4
Nesting Height Extension 3” (75mm)

64
XSZ-7-5-3
4
Nesting Height Extension 6” (150mm)

65
SYJ30-17-02M1
1
Overhead Stop Bar T Bracket

66
Z23B711001
1
Door Protector - Rubber

66
DoorJammerPRO™ Car Door Protectors 12” Pair

66
DoorJammerPRO™ Car Door Protectors 24” Pair

67
0202045
2
Screw M8X20

68
0213035
10
Split Pin 4X30

69
Z33A210000
2
Carriage Assembly

69
Z33A211000
1
Carriage Weldment

70
Z31A210002
1
Carriage Cover

71
Z11B110004
2
Lower Pulley

72
Z33A110001
2
Shaft

73
Z33A110002
2
Cover

74
0206040
4
Screw M6X12

75
0206018
2
Screw M4X30

76
0201037
1
Screw M8X40

77
0203029
2
Nut M8

78
Z11G170101
6
Washer

79
0205020
2
Washer D16

80
0203025
2
Nut M16

81
BH-7075-03
0215084
12
Anchor Bolt 3/4” X 5-1/2”

82
0201062
6
Screw M10X20

83
0208007
10
Locking Washer D10

84
1
Shim Assortment 150 Pieces; 3 Sizes

85
Z33A110000
1
Column - Power Side

85
Z33A111000
1
Column Weldment - Power Side

86
Z33A120000
1
Column - Offside

86
Z33A121000
1
Column Weldment - Offside

87
1
Power Station Air / Electric Utility Box

88
1
Single Wheel Spotter Dish 10-3/4” x 15” Wide

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
