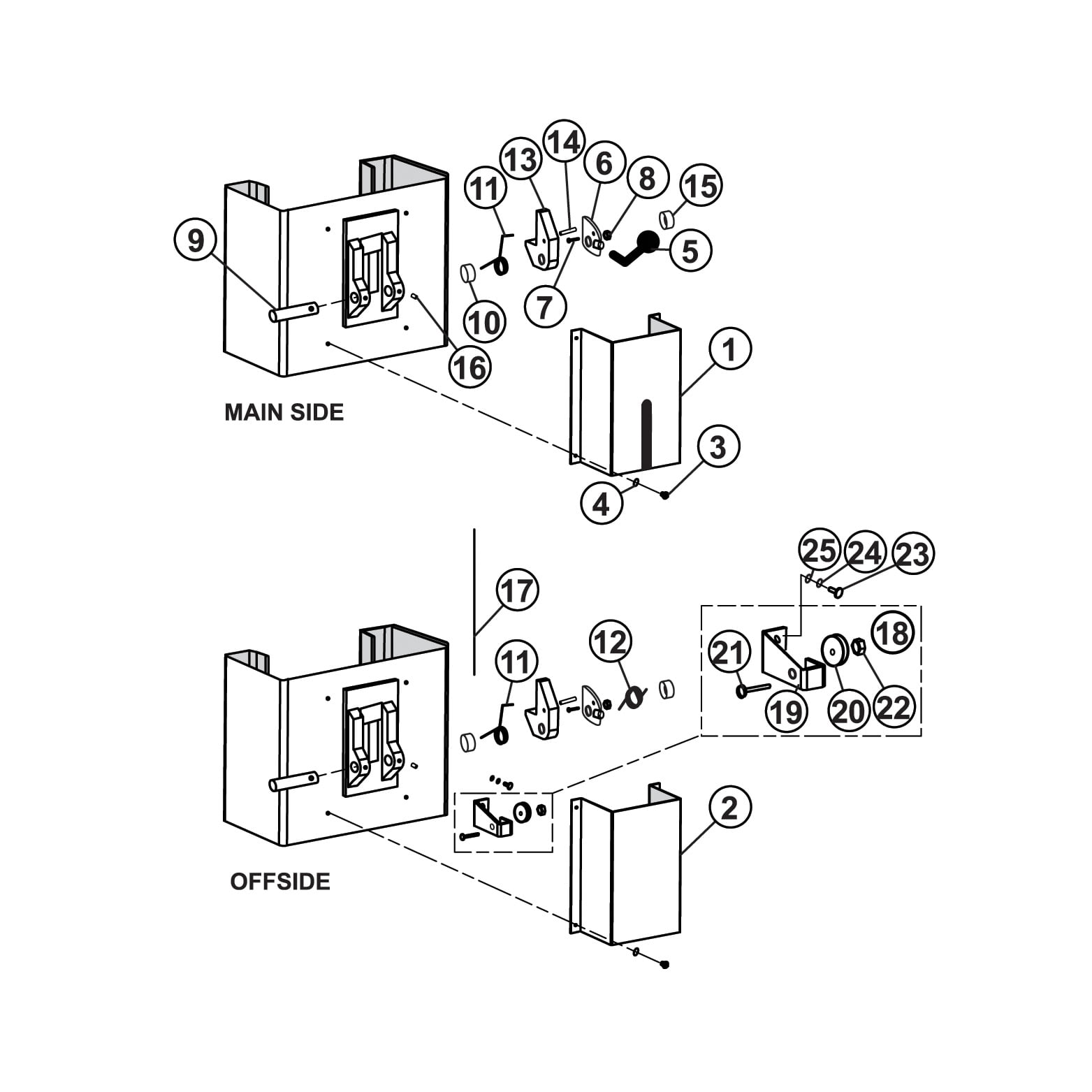

Parts for Atlas Lift APEX 12 Lock Detail

Above Ground / Surface Mount 2-Post Lifts – Atlas – Apex 12

Repair parts for Atlas Lifts Model Apex-12 are available from SVI.

SVI is the go-to supplier for repair parts for Atlas Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units and parts, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Atlas lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Atlas Lift APEX12:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Z23G122100
1
Latch Cover - Power Side

2
Z23G122200
1
Latch Cover - Offside

3
0206036
8
Screw 6x8

4
0205006
8
Washer D6

5
Z23G140200
1
Latch Release Lever

6
Z23A110200
2
Cam Plate

7
0201174
2
Screw M8X25

8
0204024
2
Nut M6

9
Z23G140301
2
Latch Shaft

10
Z23G140304
2
Spacer

11
Z23G140303
2
Return Spring # 2

12
Z23G140302
1
Return Spring # 1

13
Z23G140101
2
Lock Latch

14
0213052
2
Roll Pin 6x40

15
Z23G140305
2
Spacer

16
0209028
2
Screw M10X16

17
Z23G520200
1
Latch Release Cable

18
Z23G131000
1
Latch Release Roller and Bracket Assembly

19
Z23G131001
1
Roller Bracket

20
Z23G131002
1
Latch Release Cable Roller

21
0201122
1
Screw M6X35

22
0204003
1
Self Locking Nut M6

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
