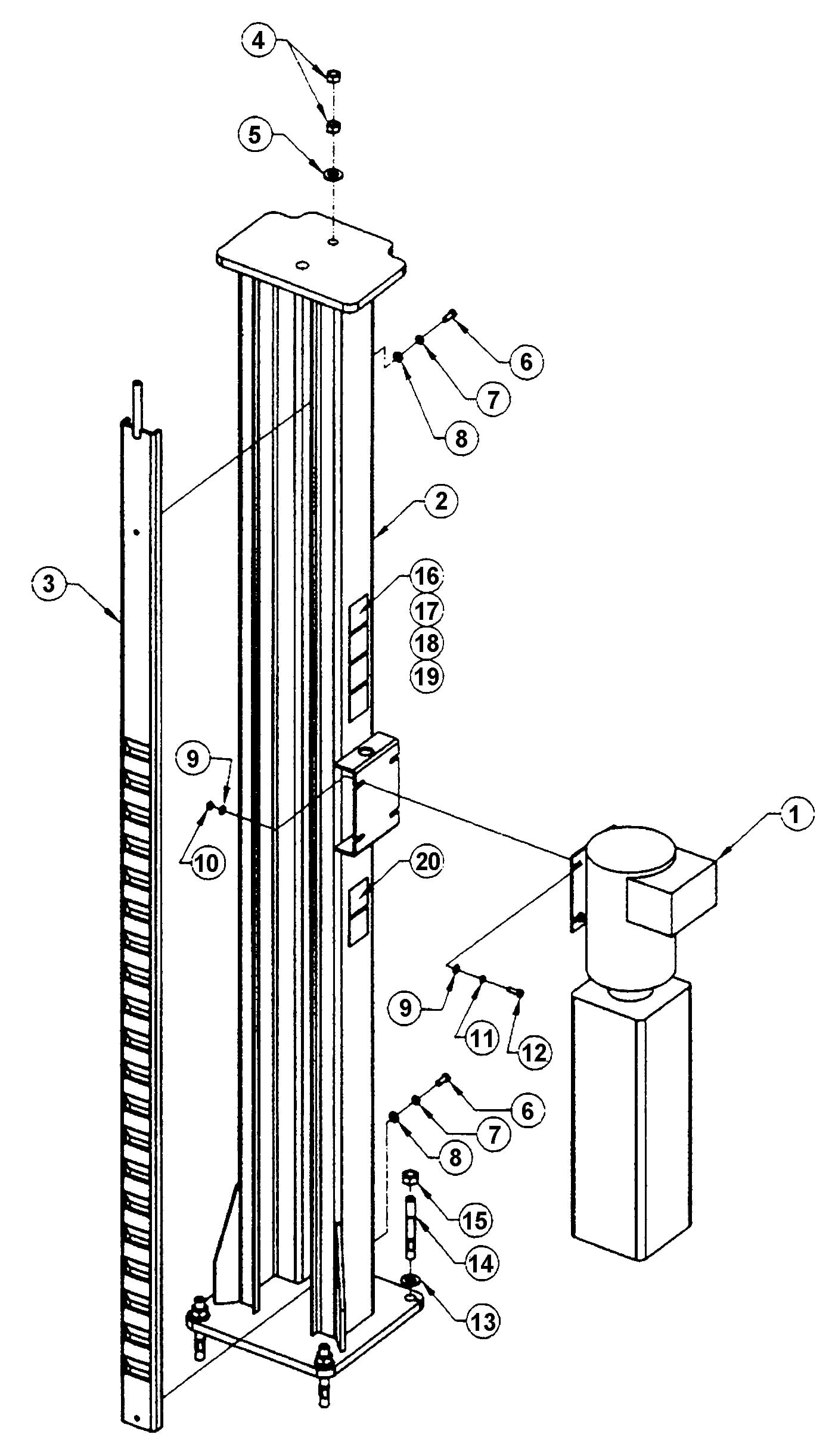

Parts for Accu Turn AC18405AF Tower Assembly

Above Ground / Surface Mount 4-Post Lifts – Accu-Turn – AC18405AF

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7804-55
6-1695
1
Power Pack, 230V/1PH
View
2
BH-7800-20
4-0636
1
Power Post Weldment
View
3
BH-7797-35
3-0580
1
Safety Rack Weldment
View
4
F-HN-0625-11
6-0673
2
Hex Nut, 5/8"-11, Gr. 8
View
5
F-FW-0750-USS
6-0738
1
Flat Washer, 3/4"
View
6
F-HC-0375-16-1000
6-0668
2
Hex Hd. Bolt, 3/8"-16 x 1" Gr. 8
View
7
F-LW-0375
6-0058
2
Lock Washer, 3/8"
View
8
F-FW-0375-USS
6-0062
2
Flat Washer, 3/8"
View
9
BH-7798-12
6-0295
4
Flat Washer, 5/16"
View
10
F-HN-0312-18
6-0294
8
Hex Nut, 5/16"-18, Gr. 8
View
11
F-LW-0312
6-0674
4
Lock Washer, 5/16"
View
12
Request Details
6-0293
4
Hex Hd. Bolt, 5/16" x 1", Gr. 8
13
F-FW-0750-USS
6-0738
4
Flat Washer, 3/4"
View
14
BH-7798-77
6-1379
4
Wedge Anchor, 3/4" x 5-1/2"
View
15
F-HN-0375-10
6-0737
4
Hex Nut, 3/4"-10
16
BH-7805-97
6-0592
1
Caution Decal
View
17
BH-7805-115
6-0351
1
Safety Instructions Decal
18
BH-7805-96
6-0595
1
Warning Decal
View
19
BH-7805-116
6-1637
1
Attention Decal
20
BH-7805-117
6-1655
1
Serial Tag
