Air Ejector Mufflers

Mufflers / Noise Control Products – ALWITCO / Allied Witan Company – Air Ejector Mufflers

Featuring collimator inserts for concentrated air flow

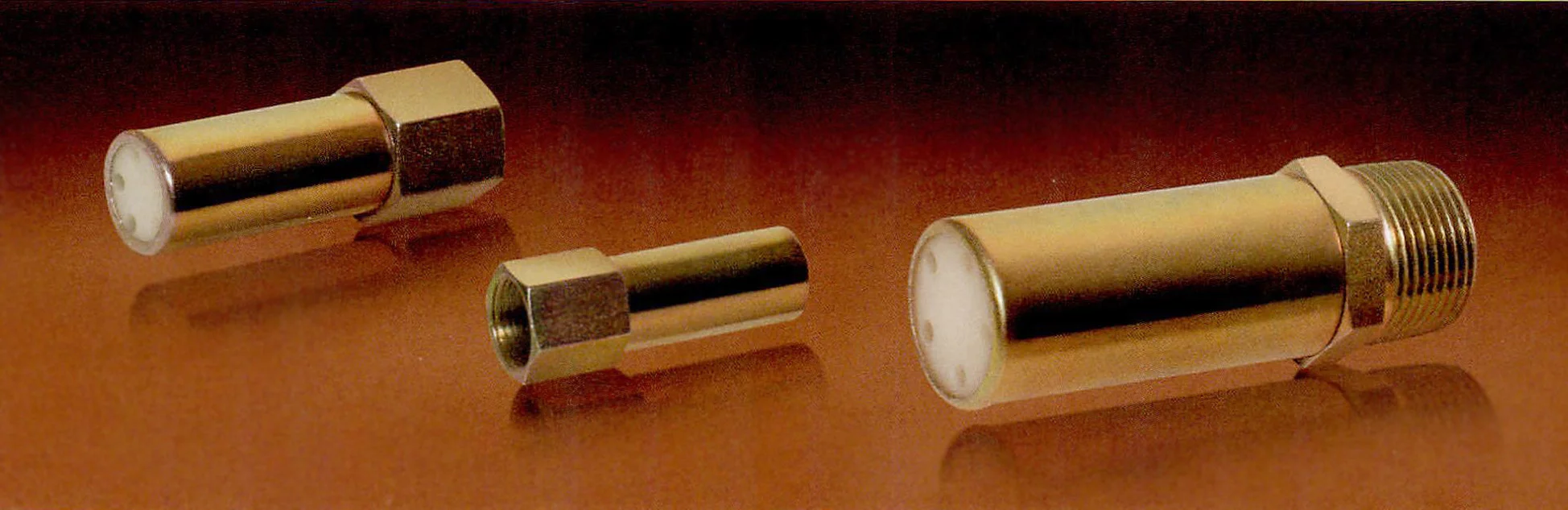

Quickly and easily connected to any compressed air source, the Air Ejector Muffler concentrates the air stream in a narrow beam over a longer distance, delivering maximum force at the exact required point.

The Air Ejector Muffler is supplied as a complete unit with a cylindrical housing and can be directly attached to compressed air lines properly positioned for parts ejection or packaging requirements, among other uses. Ordinarily furnished with a standard plastic collimator insert, this model also can be supplied, when specified, with a special heat-resistant metal collimator insert for use in locations where extremely high ambient temperatures may be present.

Separate collimator inserts also are available as a low cost solution for applications where it is necessary to bore hose directly into a die and insert the collimator to provide exact air thrust.

SVI is proud to be a distributor of ALWITCO / Allied Witan mufflers and noise control products.

Add to
Quote
Add to
Order
SVI Part #
Description
Connection
Model Type
Hex
Length
Weight
Flow SCFM

Air Ejector Muffler
1/8" Male NPT
A18
0.43
1.37
0.02
22

Air Ejector Muffler
1/4" Male NPT
A28
0.56
1.75
0.04
34

Air Ejector Muffler
3/8" Male NPT
A38
0.69
2.2
0.06
45

Air Ejector Muffler
1/2" Male NPT
A48
0.87
2.75
0.11
68

Air Ejector Muffler
3/4" Male NPT
A68
1.06
3.15
0.21
75

Air Ejector Muffler
1" Male NPT
A88
1.31
3.87
0.36
101

Air Ejector Muffler
1/8" Female NPS
A18
0.43
1.37
0.02
22

Air Ejector Muffler
1/4" Female NPS
A28
0.56
1.75
0.04
34

Air Ejector Muffler
3/8" Female NPS
A38
0.69
2.2
0.06
45

Air Ejector Muffler
1/2" Female NPS
A48
0.87
2.75
0.14
68

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
