Automotive Lifts (New Installs) – SVI International – 2P-1012

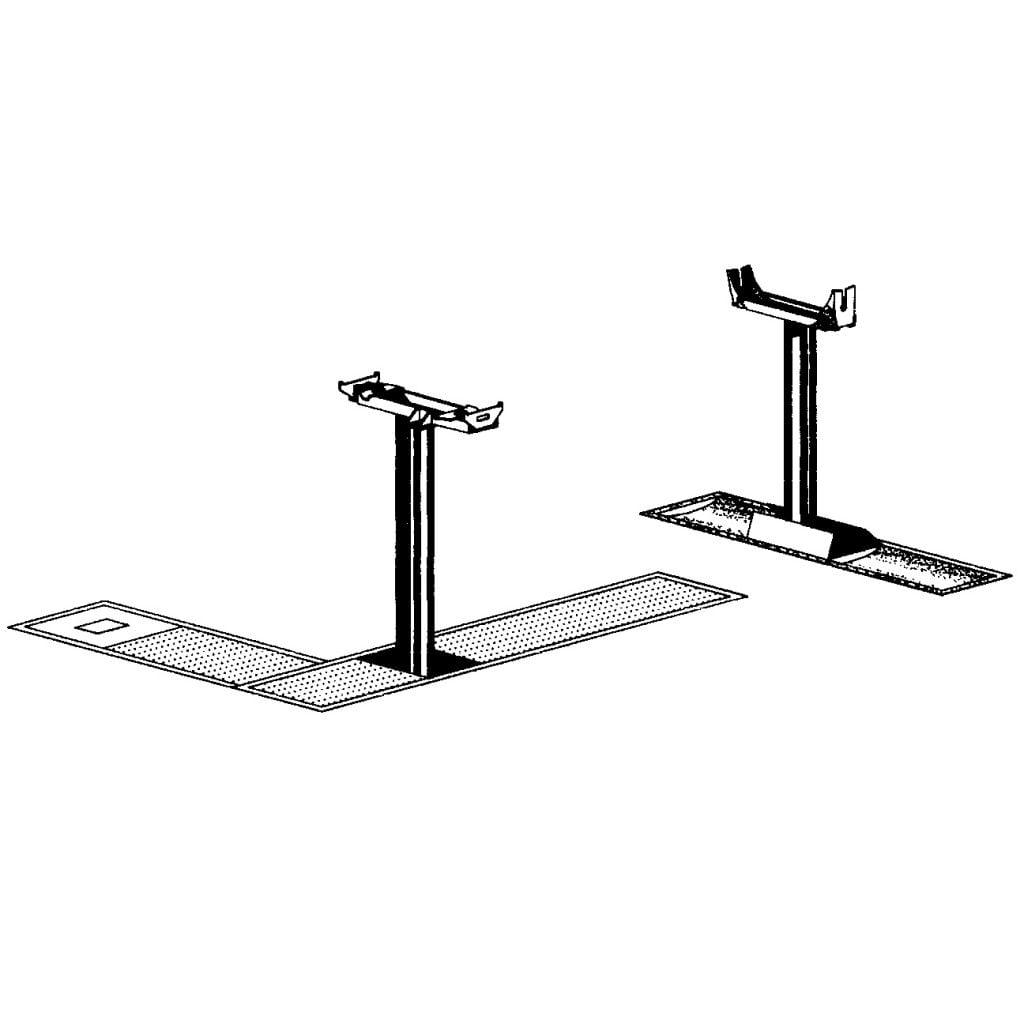

2P-105 Fore-and-Aft Bus and Truck Lift
43,000 lb Capacity @250 PSI (18,000 lb Front and 25,000 lb. Rear)
60,000 lb Capacity @350 PSI (25,000 lb Front and 35,000 lb. Rear)
Special Note: Requires a power unit sold separately. Ask for details.
Single Moveable Front and Single Stationary Rear
- Axle Engaging
- Adjustable Front Cylinder for various wheelbase lengths
- Air/Hydraulic Oil Operated
- Post Diameters: 10-5/8” Front & 12-5/8″ Rear
- Displacement: 63 gallons
- Raised vehicle contact height above floor: 67” Front & 69-3/4” Rear Based on Standard Adapters
- Multiple lip seal seal design for increased performance
APPLICATIONS:
- Utility Companies
- Transit Authorities
- Municipal Garages or wherever heavy-duty vehicle lifting is required
2P-1012 Standard Equipment
12 foot front frame (non-recessed), manual waist height release automatic lift locks, manual ratchet drive front post adjustment, quick adapter spotting devices, floor level dead-man style control valves, (note: power unit is not supplied) and non-fiberglass components. Standard front adapters adjust from 40-1/2” to 57-1/2” in width and standard rear adapters are adjustable from 24” to 49”.
Your Easy Upgrade Options:
FRONT FRAME UPGRADES:
Additional front frame length for accommodating longer vehicle wheelbase lengths.
SVI Upgrade Number / Description:
SV-9667-013-L 13’ Front Frame
SV-9667-014-L 14’ Front Frame
SV-9667-015-L 15’ Front Frame
SV-9667-016-L 16’ Front Frame
SV-9667-017-L 17’ Front Frame
SV-9667-018-L 18’ Front Frame
Longer front frame lengths available per request.
AIR LOCK UPGRADE:
Converts standard manual release locks to an air operated remote release multi-position lock assembly. This means your lift will lock in positions throughout the stroke rather than just at full stroke as with manual style locks. To upgrade order SV-56F/06C-L.
POWER SPOT UPGRADE:
Converts adjustment of front cylinder position from a manual ratchet system to an easy to operate hydraulic drive system. This means easy work for the lift operator when changing the lift to accommodate different wheelbase vehicles. To upgrade, order SV-32-L.
FIBERGLASS UPGRADE:
Fiberglass coat your cylinder components for added protection.
SVI Upgrade Number / Description
SV-9667-32FFG-L Add Fiberglass Coating to the Front Cylinder Assembly
SV-9673-012FG-L Add Fiberglass Coating to the Rear Cylinder Assembly
