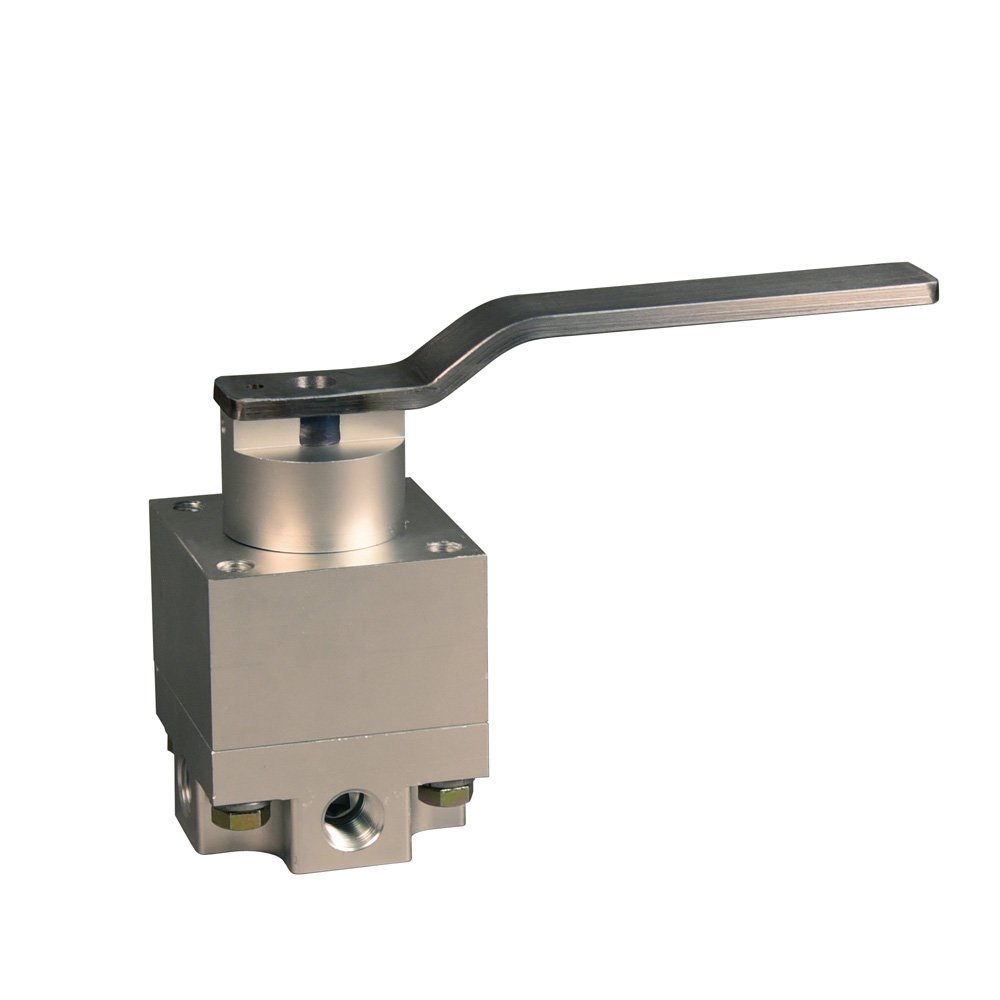

Posi-Trol Valve

Posi-Trol Valve

Description Details:

• Spring Centered
• Closed Center
• Horizontal
• 4-Port
• 3/8″ NPSF
• 3000 psi
• Manually Operated

Use SVI Posi-Trol™ Valves to easily control fluid direction with virtually no leakage. The flow through rotary design provides excellent capability to withstand the most demanding hydraulic or pneumatic design functions.

Posi-Trol™ Valves are intended for use where precision metering control and high performance is a must.

Back in April of 2013, Parker Hannifin acquired Snap-tite and later the Snap-tite valve used in the automotive lift industry was discontinued or superseded. Since there was now no suitable valve with the right port positions for the application, SVI started designing it’s own line of valves. The end result is SVI Posi-tgrol ™. These valves are available to the fluid power and automotive lift industry professionals. The BH-9765-05 a/k/a PT-4330HUCS is a stock ite. This valve is also used on Rotary lifts to control directional travel of moveable cylinders in heavy duty vehicle lift systems equipped with a hydraulic drive assist. Posi-Trol™ valves by SVI can be used or specified by anyone in the fluid power industry for a myriad of applications. The PT-4330HUCS valve also functions as a beautifully made “Direct Fit” SVI OEM replacement for the Snap-tite valve once used by Rotary Lift under part number FA3191.

Competes Directly with: Barksdale, Enerpac, Parker, SPX, Snap-tite

Uses: Accumulator Circuits, Mobile Equipment, Test Stands, Oil Field, Marine, Machine Tools, Manufacturing Control, Hydraulic Motor Control, and more!
