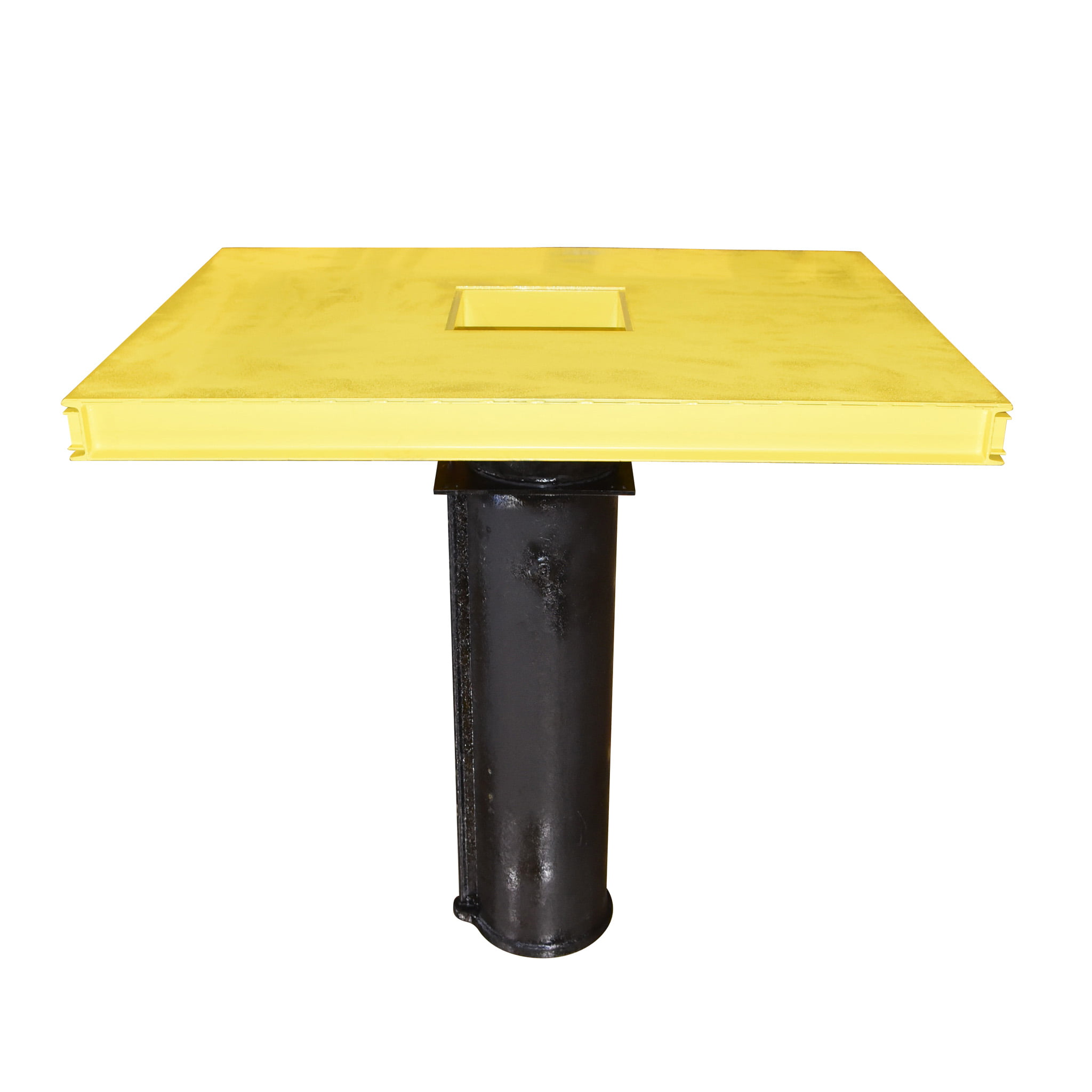

LESM Large Equipment Lift

Specialty Hydraulic Cylinder Lifting Solution

FEATURES:

• Hydraulic Cylinder Assembly is 12-5/8″ Diameter x 48″ Stroke
• 78″ x 60″ Platform Superstructure
• Options Available
• SVI lifts are made-to-order in DeKalb, Illinois USA and are very much customizable to your lifting needs

SVI International, Inc. is a leading producer of both high capacity, large diameter, single-acting hydraulic cylinders and custom fabricated steel products for various industries. With an engineering data bank that extends back to 1928, we offer a wide array of capabilities and design styles. Furthermore, cylinders are available in many stroke lengths and four different diameters to suit your capacity or force requirements.

SVI’s American-Made Single-Acting Hydraulic Cylinders are used in a wide range of applications for moving, positioning, lifting and lowering heavy loads. Many Options Available. SVI is your answer!

SPECIALTY CUSTOM APPLICATION EXAMPLE:

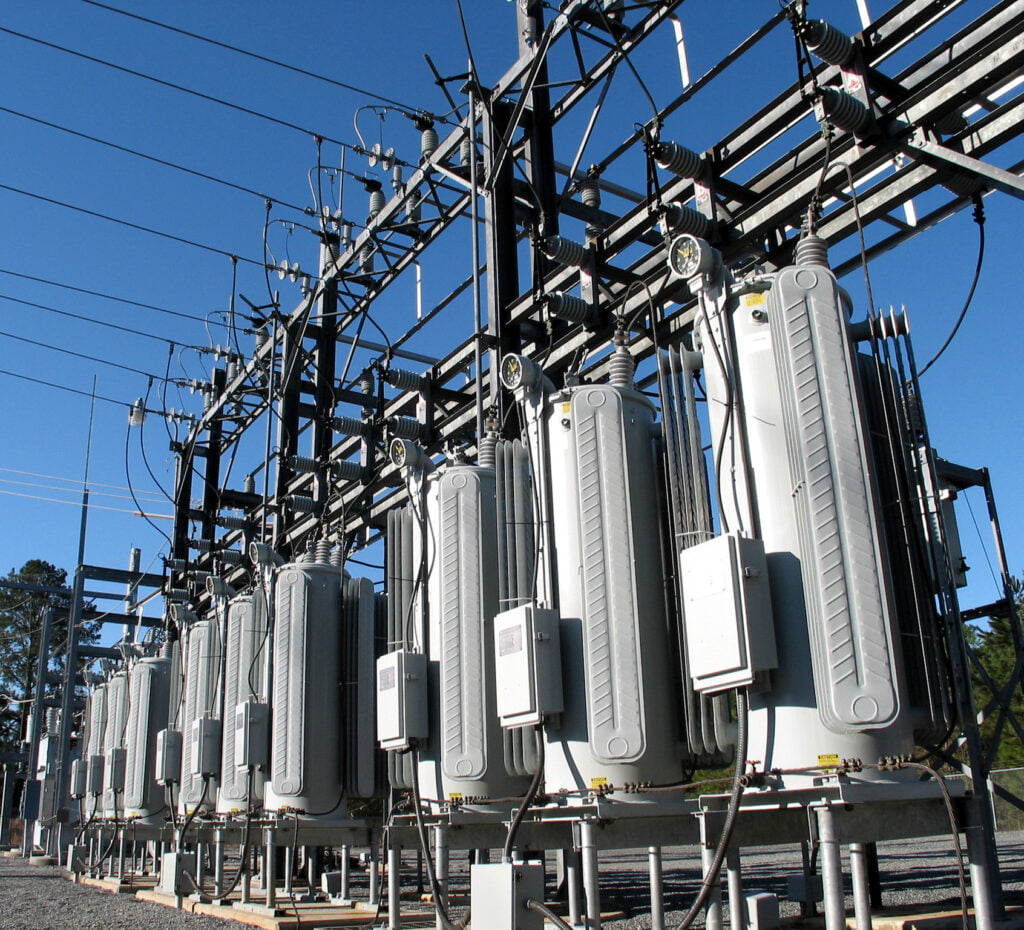

The Model LESM-1248-6072-F-NS Lift was used as a solution for lifting Voltage Regulators. Hydraulic cylinders are used in a wide range of applications for moving, positioning, lifting and lowering heavy loads. When East River Electric Power Coop in Madison, South Dakota was constructing their new electric power voltage regulator service facility, they needed two specially-constructed high capacity, low pressure single-acting hydraulic cylinders to perform regulator maintenance.

These voltage regulators are tall and without having enough hook height on the jib cranes that will lift the regulator covers off, pit lifts were installed to lower the regulator down approximately 48”. Once a regulator is lowered down into the pit, the jib crane can safely lift off the cover so the regulator could be raised back up to floor level by the hydraulic cylinder.

The regulator is then removed from the 60” x 72” lifting platform and taken to a station for re-conditioning. Once re-conditioned, the regulator is returned to the
hydraulic lift and lowered down so the cover can be repositioned back over the regulator with the jib crane. The entire regulator and cover are then raised and
the regulator is transported back out in the field and placed back into service.

Specialty Fabrication for Your Custom Application Needs:

SVI’s fabrication shop is well-suited to handle your one-off, two-off, or further requirements. Beyond ones and twos, short-to-medium-size jobs are also a perfect fit for our custom manufacturing shop. Companies depend on us regularly for specialty and custom-fabricated items as well as repeat jobs.

All SVI cylinders can be purchased with a choice of optional fiberglass coating or in your choice of five standard finish colors. Custom colors are available for an additional charge. For harsher applications, optional industrial hard chrome is available for the plunger surface to prolong life and prevent corrosion.

Put the SVI team to work for you the next time you need fabricated steel products. We can provide quick turnaround time on pricing and reasonable lead times help to fit the busy schedule of today’s fast pace.

When custom specialty lift solutions are needed, SVI is your answer.
Contact SVI Today!
