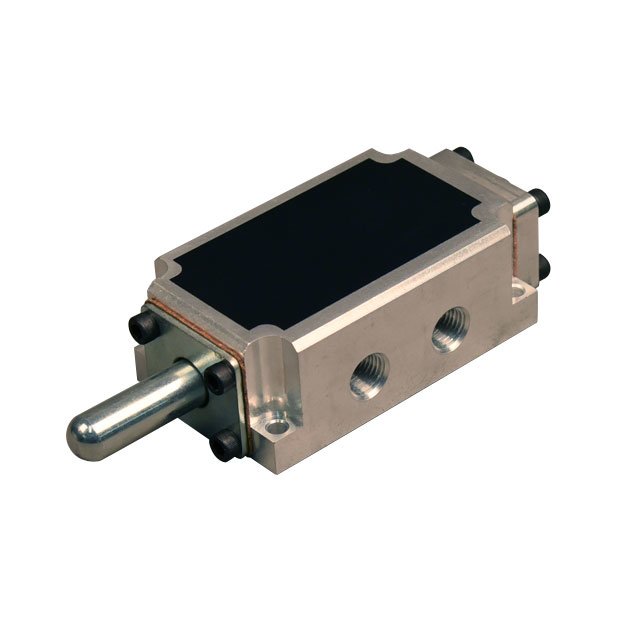

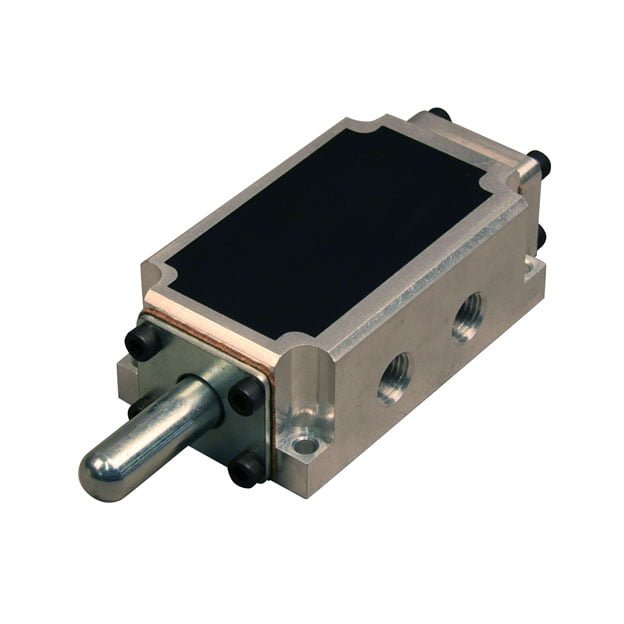

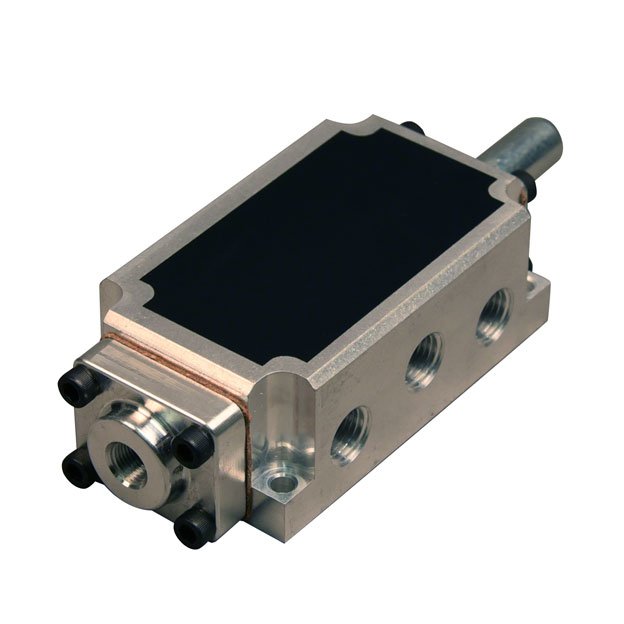

Control Valve Pilot Return Spring Assist

Control Valve Pilot Return Spring Assist

Description Details:

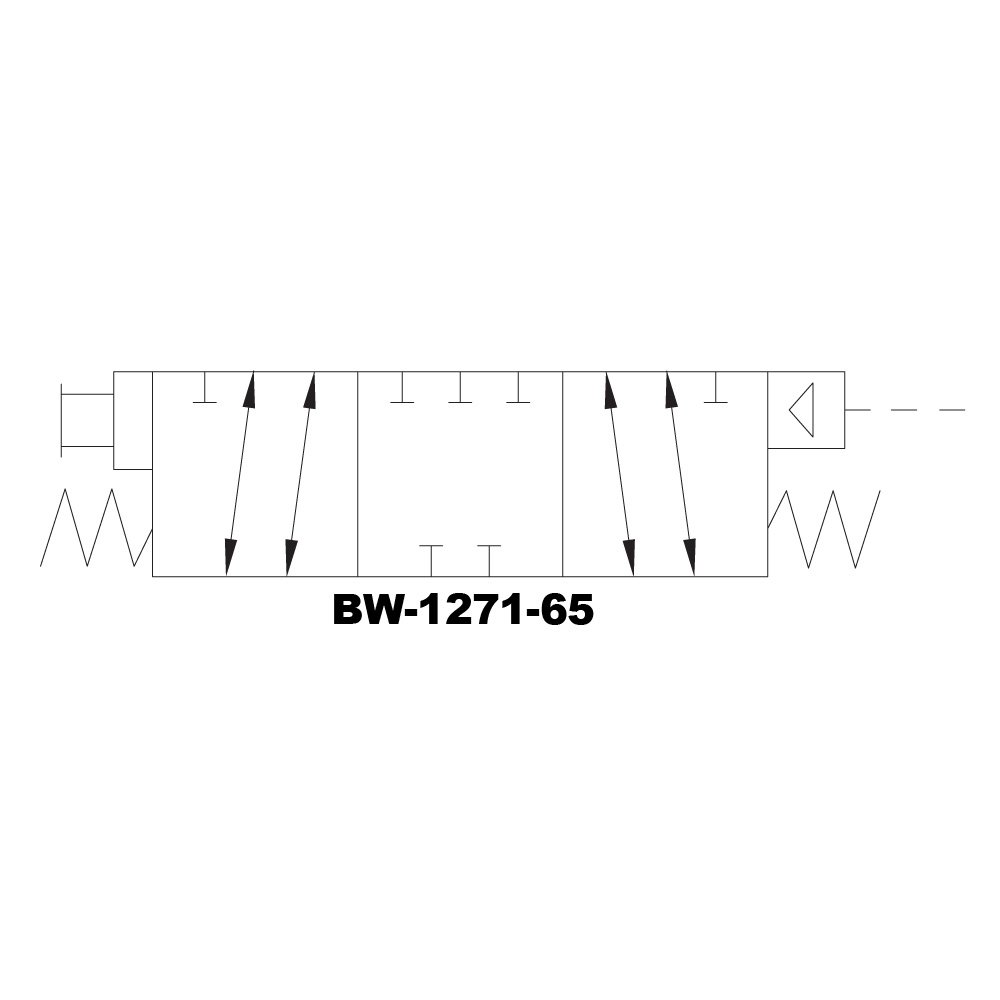

• 4 Way, 5 Port, 2 Position
• Manually Actuated
• 1/2″ Diameter Ball-End Push Rod
• Spring Return with Air Assist

For Tire Changer Models:

• Hofmann Monty 2700
• FMC 7600, 7700 and 8800 Center-Post Tire Changers (Note: Most FMC 8800 models had 3 air connections to the valve, but some early models had 4 air connections. The new valve does not require the 4th connection (at the back of the valve) and that hose should be capped or plugged.)
• Some Coats®*

Special Note: Standard seals are Nitrile. All BW-1200 Series Valves can be made available with Viton or Hydrogenated Nitrile Seals.

For more information and other Pneumatic Directional Control Valves, check out our BW-1200 Valve Brochure.

Resourceful engineering, SVI is your answer! If there is any part or parts for a tire changer you would like us to stock for you, just let us know.
