4 Way Valve Internal Spring Green O-Rings

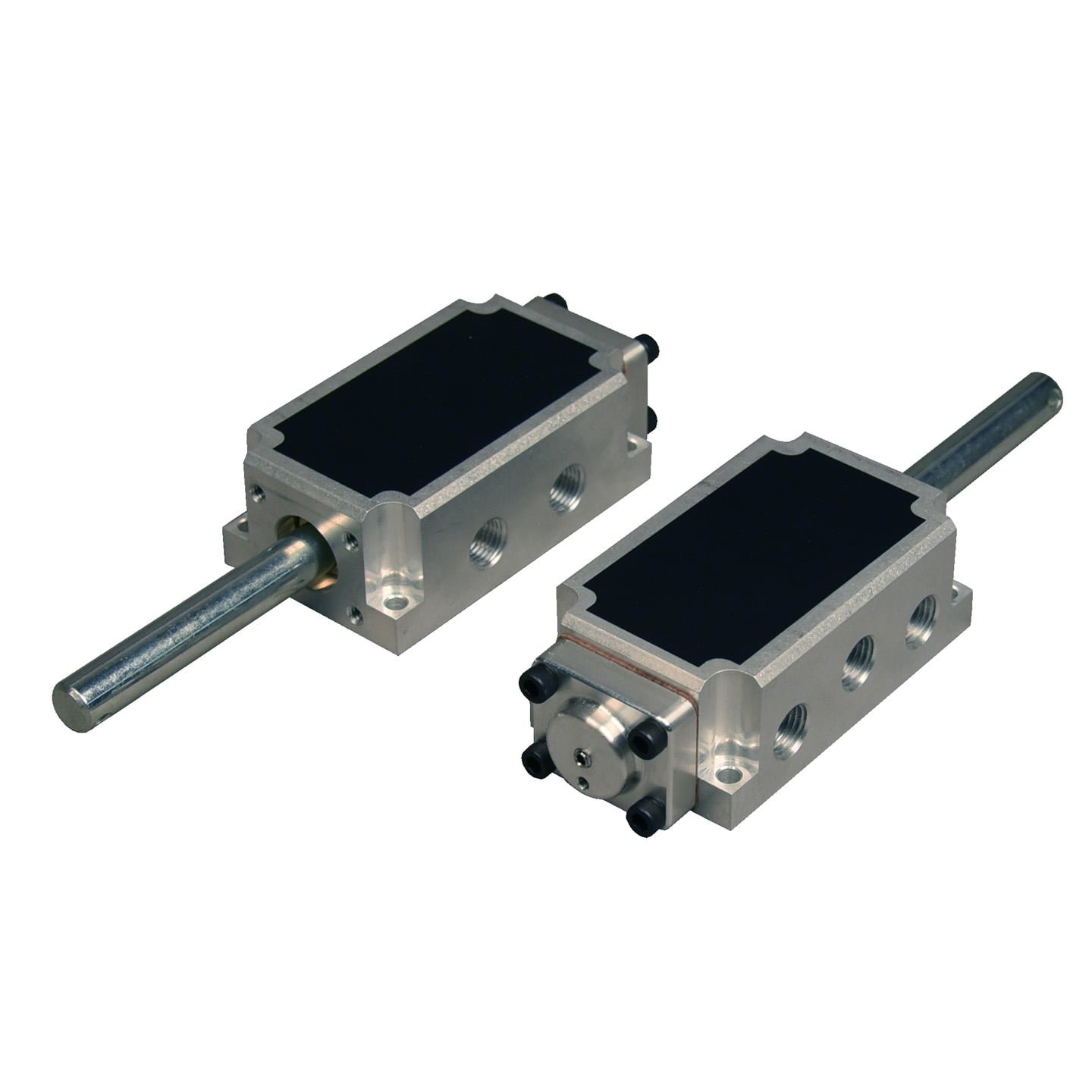

4-Way Valve with Internal Spring, Green Hydrogenated O-Rings

Description Details:

• 4 Way, 5 Port, 3 Position
• Closed Port Spring Return Center Position
• Manually Actuated
• 1/2″ Diameter Position Rod with Clearance Hose for 3/16″ Roll Pin
• Green Hydrogenated O-Rings

For Coats®* Tire Changer Models:

• 5030A, 5030E, 5035A, 5035E, 5040A, 5040E, 5050A, 5050E, 5060A, 5060E, 5060AX, 5060EX, 5065A, 5065AX, 5065E, 5065EX
• 6050A, 6050AX, 6050E, 6050EX, 6060AX, 6065A, 6065AX, 6065E, 6065EX
• 7050AX, 7050EX, 7055AX, 7060AX, 7065AX, 7065EX, 7660AX, 7665AX

Green Hydrogenated O-Rings are less vulnerable to damage by heat, ozone, and oxygen. They have a higher temperature resistance and also have a good resistance to all sorts of oils typically used or specified for use in tire changers.

Special Note:  This valve has Green Hydrogenated Nitrile Seals. All BW-1200 Series Valves are available with Standard Nitrile, Green Hydrogenated Nitrile, or Viton O-Rings.

For more information and other Pneumatic Directional Control Valves, check out our BW-1200 Valve Brochure.

Resourceful engineering, SVI is your answer! If there are any parts for a tire changer you would like us to stock for you, just let us know.
