Lift Cable for Many 4-Post Models

SVI Part #: BH-7501-06

FOR: Rotary Lift
Request a quote
Add to order

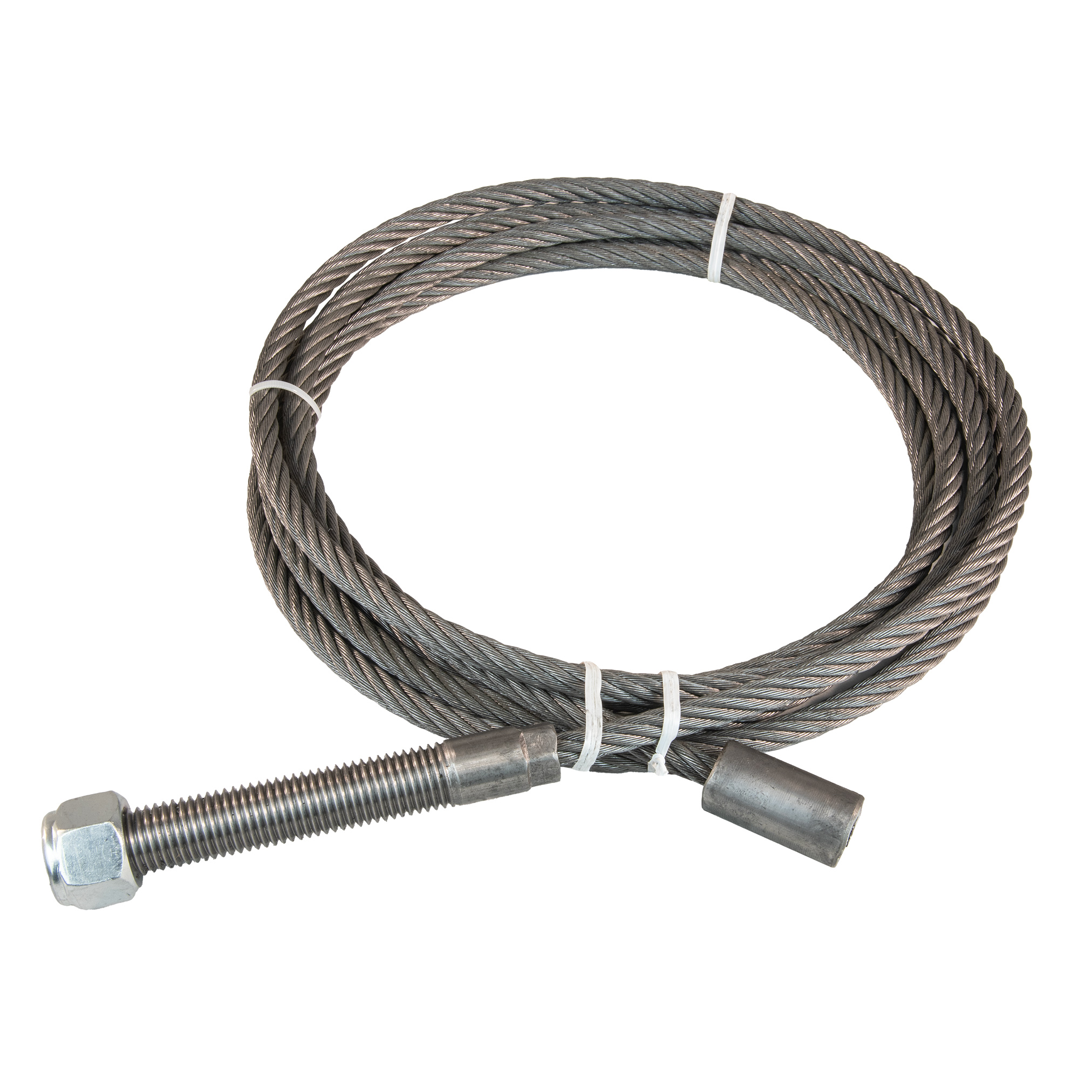

Right Rear Cable for Many Rotary 4-Post Lift Models including AR / ARO Series, SM / SMO, CWA120, QL4P and QLHV Series

Description Details:

  • Fits Models: Rotary 4-Post Lift Models AR120-EL1 (Extended Length 1′), AR120-L, AR120-S, AR122-S, AR233-L, ARO122-EL2, ARO122-L, ARO122-S, CWA120, QL4P, QL4P100, QL4P101, QL4P-EL2, QLHV, QLHV-EL2, SM101 (Pre 100 Series), SM120, SM120-EL1, SM120-L, SM120-S, SM121, SM121-EL2, SM121-L, SM122-EL2, SM122-L, SM122-S, SM88, SMO122-EL2, SMO122-L, SMO122-S
  • Overall Length: 15’ 5-1/2” (185.5 in / 4711.70 mm) Long
  • Cable Diameter: 7/16” (11.11 mm)
  • Cable Material: Galvanized Steel

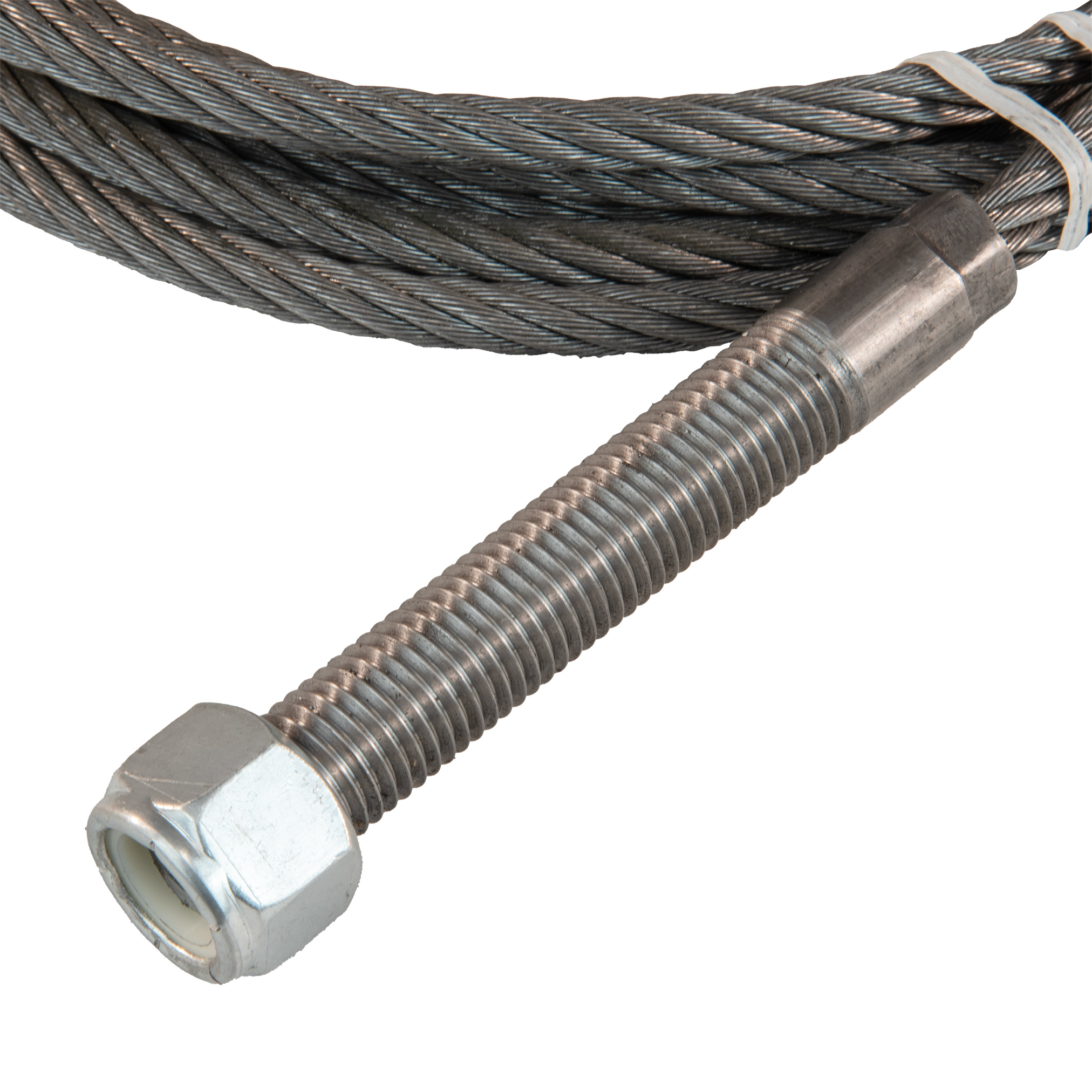

  • Cable End #1: (1) Threaded Stud 7/8”-9

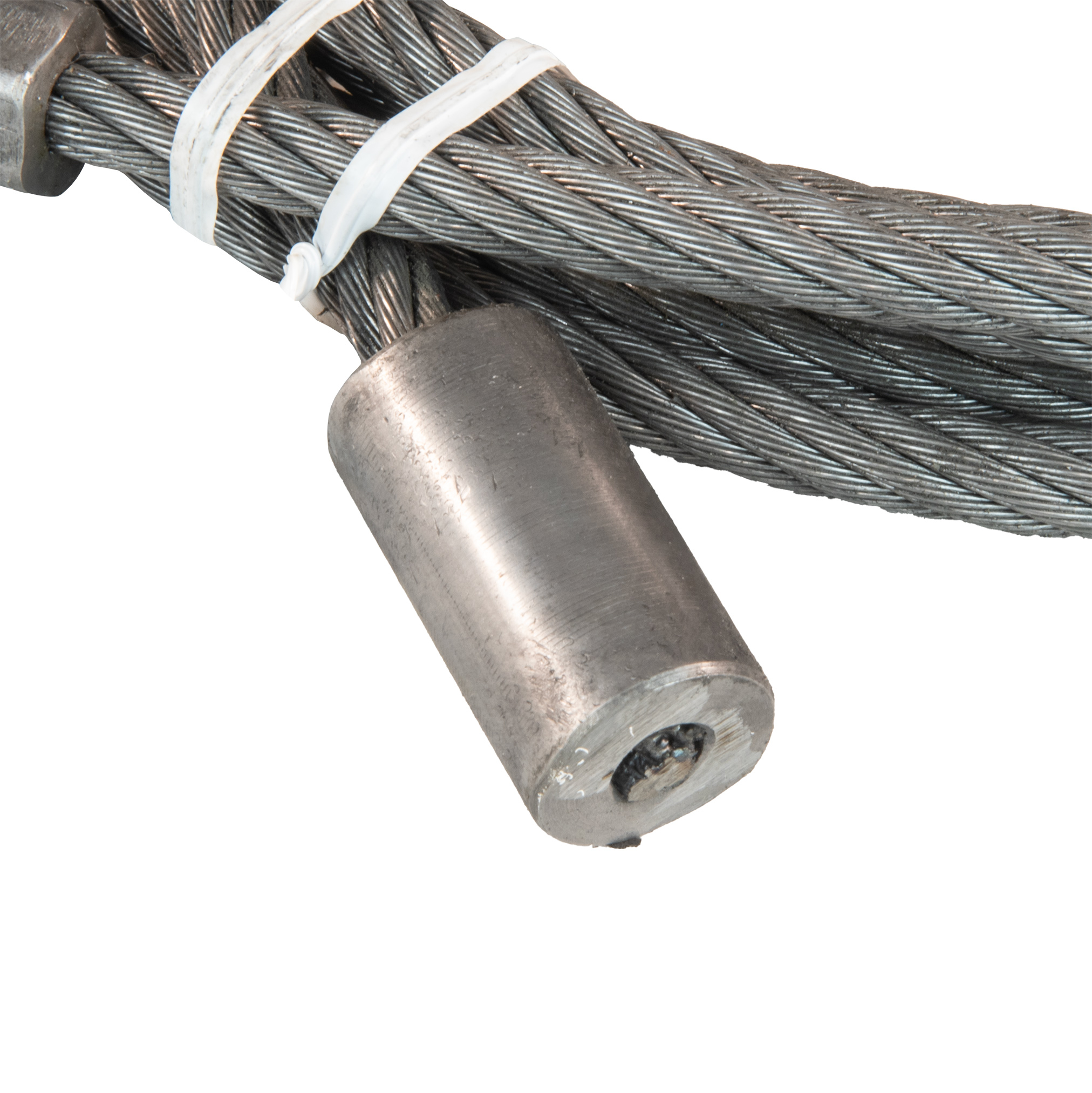

    Cable End #2: (1) Button Stop 1”
  • Fastener Included

Special Notes: This is the Right Rear (RR) Cable Assembly. For the Left Rear (LR) Cable see BH-7501-05  (Ref # FC544).

For the AR120-S, AR122-S, SM120-S, SM122-S, SM88 Left Front (LF) Cable see BH-7501-31A  (Ref # FC5618) and for the Right Front (RF) Cable see BH-7501-31  (Ref # FC5617).
For the AR120-L, SM120, SM120-L, SM121, SM121L, SM122-L, AR233-L, QL4P, QL4P100, QL4P101, QLHV, CWA120 Left Front (LF) Cable see BH-7501-07  (Ref # FC546) and for the Right Front (RF) Cable see BH-7501-08  (Ref # FC547).
For the AR120-EL1, SM120-EL1 Left Front (LF) Cable see BH-7501-49  (Ref # FC5647-2) and for the Right Front (RF) Cable see BH-7501-48  (Ref # FC5647-1).
For the ARO122-S, SMO122-S Left Front (LF) Cable see BH-7544-58  (Ref # FC5919-4) and for the Right Front (RF) Cable see BH-7544-57  (Ref # FC5919-3).
For the ARO122-L, SMO122-L Left Front (LF) Cable see BH-7544-60  (Ref # FC5898-4) and for the Right Front (RF) Cable see BH-7544-59  (Ref # FC5898-3).
For the ARO122-EL2, SMO122-EL2 Left Front (LF) Cable see BH-7544-62  (Ref # FC5906-4) and for the Right Front (RF) Cable see BH-7544-61  (Ref # FC5906-3).
For the QL4P-EL2, QLHV-EL2, SM121-EL2, SM122-EL2 Left Front (LF) Cable see BH-7530-25  (Ref # FC5551-11) and for the Right Front (RF) Cable see BH-7530-26  (Ref # FC5551-12).
For the SM101 (Pre 100 Series) Left Front (LF) Cable see BH-7529-75  (Ref # FC547-1) and for the Right Front (RF) Cable see BH-7501-96  (Ref # FC546-1).

When measuring a worn cable, please consider deformation from stretching and use over time. It is always recommended that when replacing one cable, all cables should be replaced. Also consider sheaves, pulleys, shafts, pins, spacers, etc. It is also a good time to carefully inspect all other components including locking or safety devices. Never override safety devices or overlook safety in general.

Content Listing:

  • (1) Wire Rope Cable Assembly
  • Fastener Included

Alternative nomenclature or also known as:

  • Wire Rope Lifting Cable
  • Wire Rope Cable Assembly

Uses: Auto Lifts, Car Lifts, Light Truck Lifts, Vehicle Lifts, Van Lifts, Bus Lifts

SVI is a premier, well-known expert supplier, and your best quality and cost option for replacement parts for Rotary Lifts. SVI is your answer!

Standard and Custom cables available. In-Stock Cables or repair parts ship same-day.

Safety First: Replace Auto Lift Cables at First Sign of Wear

All wire rope cables generally wear both from the inside and outside. Inside wear is much less significant and is caused as the cables are pulled across the cable pulleys or sheaves. This wear is caused by what is termed nicking and can appear on internal strands with an almost scalloped look. External wear on cables is much more apparent and is essentially abrasive wear. Abrasive wear is the result of metal being slowly worn away or removed over time. This appears on the crowns of each wire with a flattening of the wire appearance. As the wires flatten, material is being lost. Since the strength of the cable continues to lessen, the cable becomes weaker. Additionally, almost everyone at some point has seen frayed rope. This is a condition where unraveling, worn, or separated strands become evident. If this is observed to be happening on any wire rope cable assembly, immediately cease use of the equipment with this type of worn cable and replace the cable as well as the sheaves or pulleys immediately.

As a rule, if you own an auto lift or anything that uses wire rope cables, you should at a minimum conduct monthly visual inspection of the cables and sheaves or pulleys. This is especially important if your cable-driven equipment is frequently used. If you are starting to witness the small round strands comprising each cable assembly starting to flatten and then even flatter, it is time to consider replacing the affected cables. Most cables on auto lifts or even any equipment including winches are easy to replace and the costs are relatively minimal. If you do not wish to replace the cable assembly yourself, there are many companies that specialize in auto lift installation and service that can help you.

If you cannot locate an auto lift repair shop, Contact SVI and we will attempt to help you find someone in your area to properly replace your cables.
