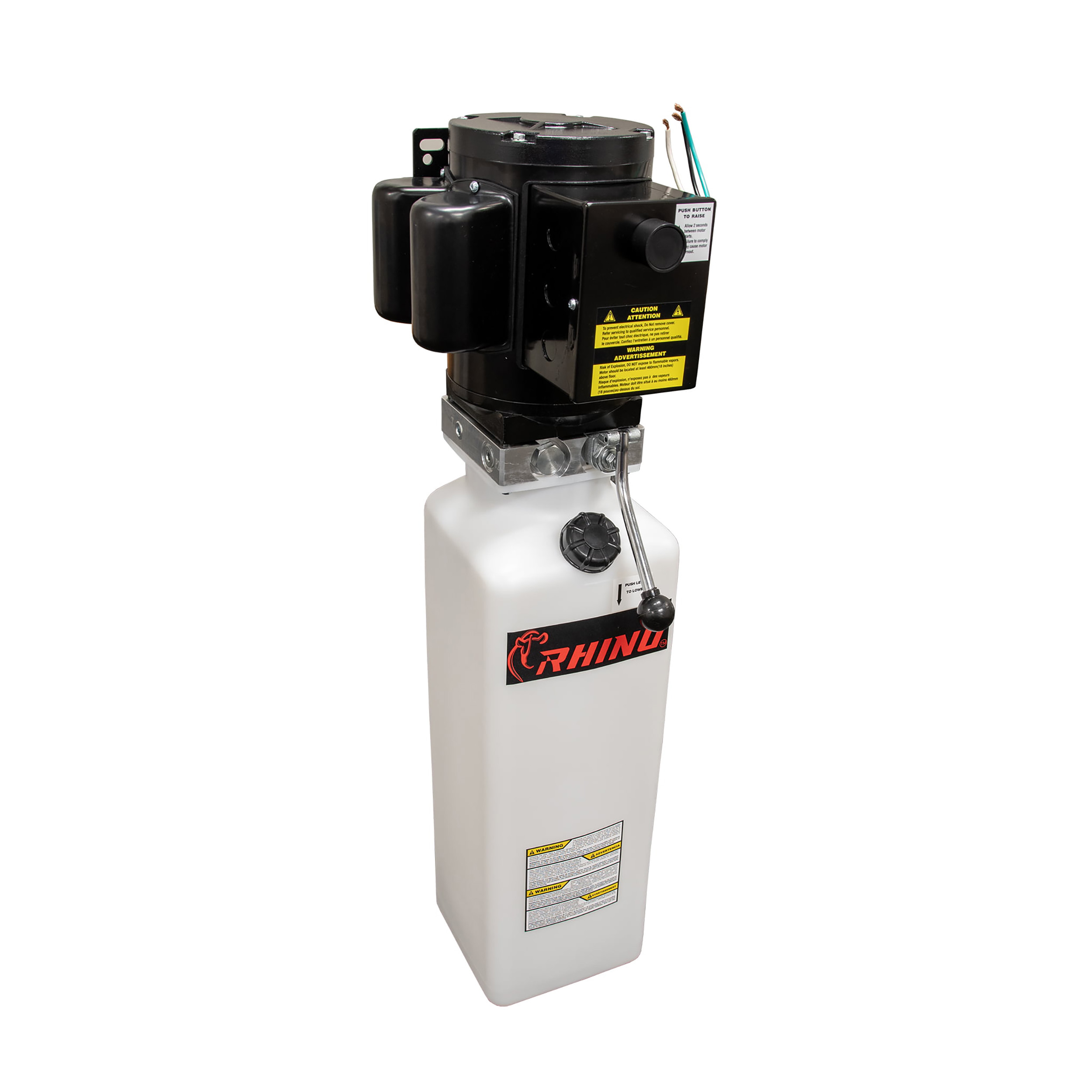

2HP 230V AC Hydraulic power unit with power up and gravity down functions for above ground vehicle lifts. A push of a button raises the lift and a manually operated lowering control valve is used to lower the lift. This unit features an installer adjustable pressure relief valve and 3.6 GAL opaque tank.
Optional Reservoir Available: BH-7008-84 (6.2 Gallon Tank)
- Lowering Valve: Manual operated
- Buffer Valve: Z1-4
- Pressure Relief Valve: Adjustable and factory preset to 2850PSI
- Check Valve: M20x1.5
- Motor: 208-230V, 1PH, 50/60HZ, 2930/3520rpm
- Gear Pump: 2.1cc/r 2gpm
- Suction Filter: 100 mesh
- Tank: 3.6 gallon, Usable, Opaque, Plastic
SVI is one of the largest and most respected supplier of repair parts for use on Rhino Power Units. If you do not see what you need we will certainly help you. Contact SVI today. For repair parts for Rhino Power Units, SVI is your answer!
