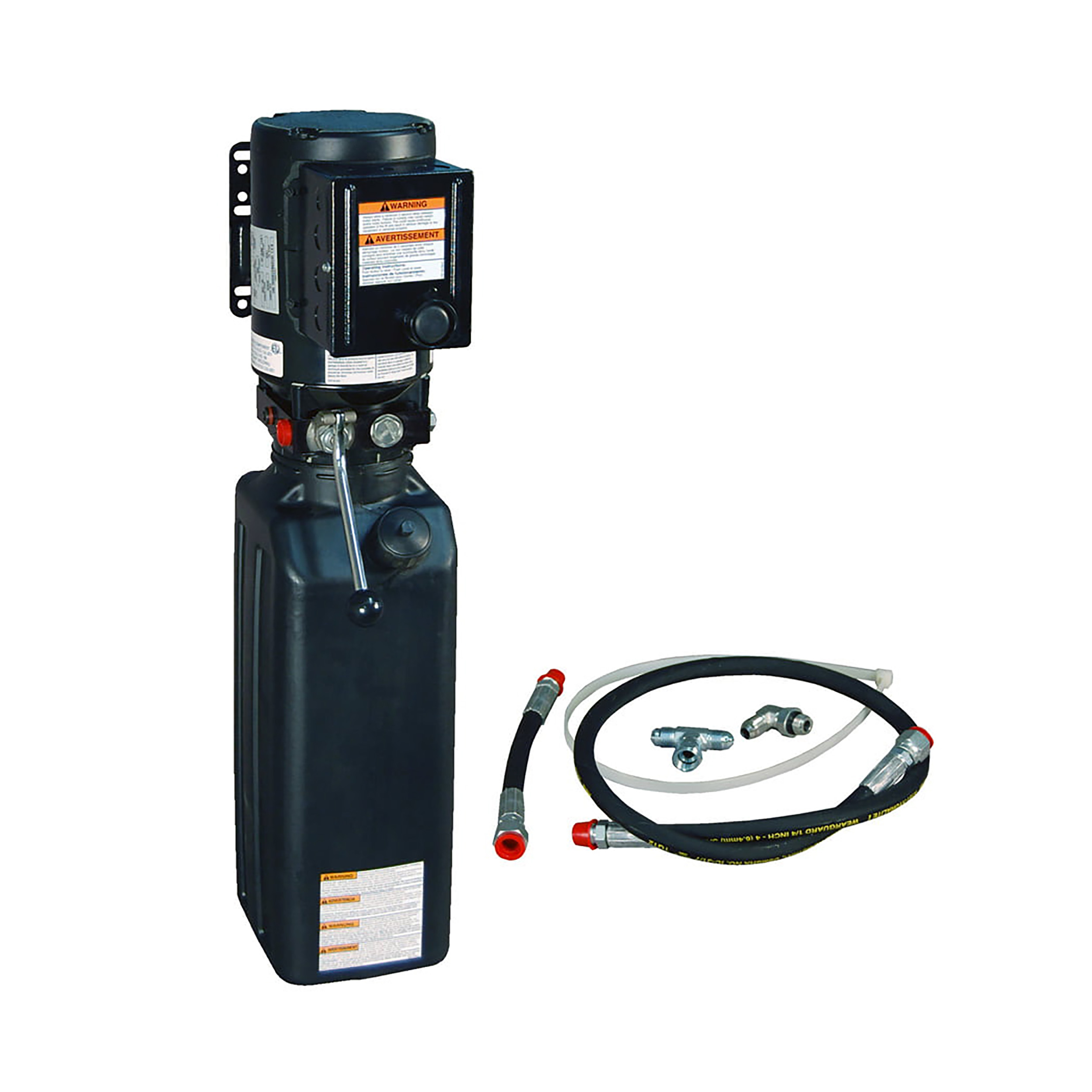

Power Unit 2hp, 1ph, 3450RPM 1.6CC/Rev
3480 PSI / 240 bar, 4.0 Gallon Reservoir
SPX Stone power units are a compact hydraulic power source utilizing an electric motor with the capability to generate high pressure ratings. The units are built specially for SVI and the industry it serves to provide a wide range of customer-specified pressure relief valve settings. The ability to properly select the required pressure relief allows industry professionals to confidently match the right power unit to the application. SVI performs this service routinely every day to ensure power units are shipped on a same-day basis with the correct pressure relief setting required for the job.
See our BH-7006-01-24 brochure for more specifications and information.
- Frame: 56 FR
- Max Amps: 230 VAC 18
- Pump: 1.5 GPM @ 3480 PSI*
- Maximum Run Time: 75 Seconds
- Pressure / Return Port Size: 9/16” SAE
- Auxiliary Return Port: 3/8” NPT
Optional: BH-7000-00 Easy Adaptation Kit, sold separately.
SVI is the #1 Source for Auto Lift Power Units!
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.

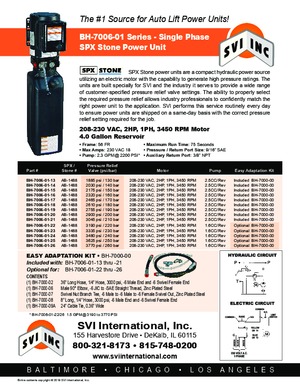

BH-7006-01 Series Power Unit Brochure
Power Units and Parts for Surface Mount Lifts
Auto Lift Power Unit Selection Brochures
