1/4" F Coupler & M Plug "M"

SVI Part #: AS-0711

Ref# 711

FOR: Milton

1/4″ NPT M-Style Coupler and Plug

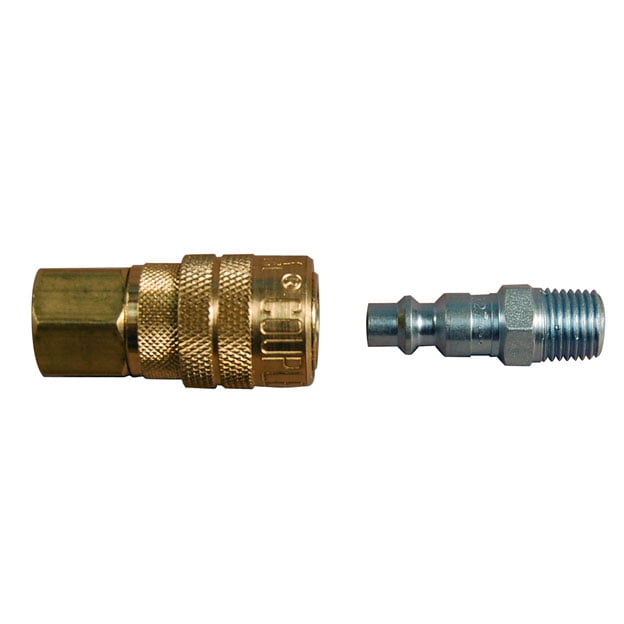

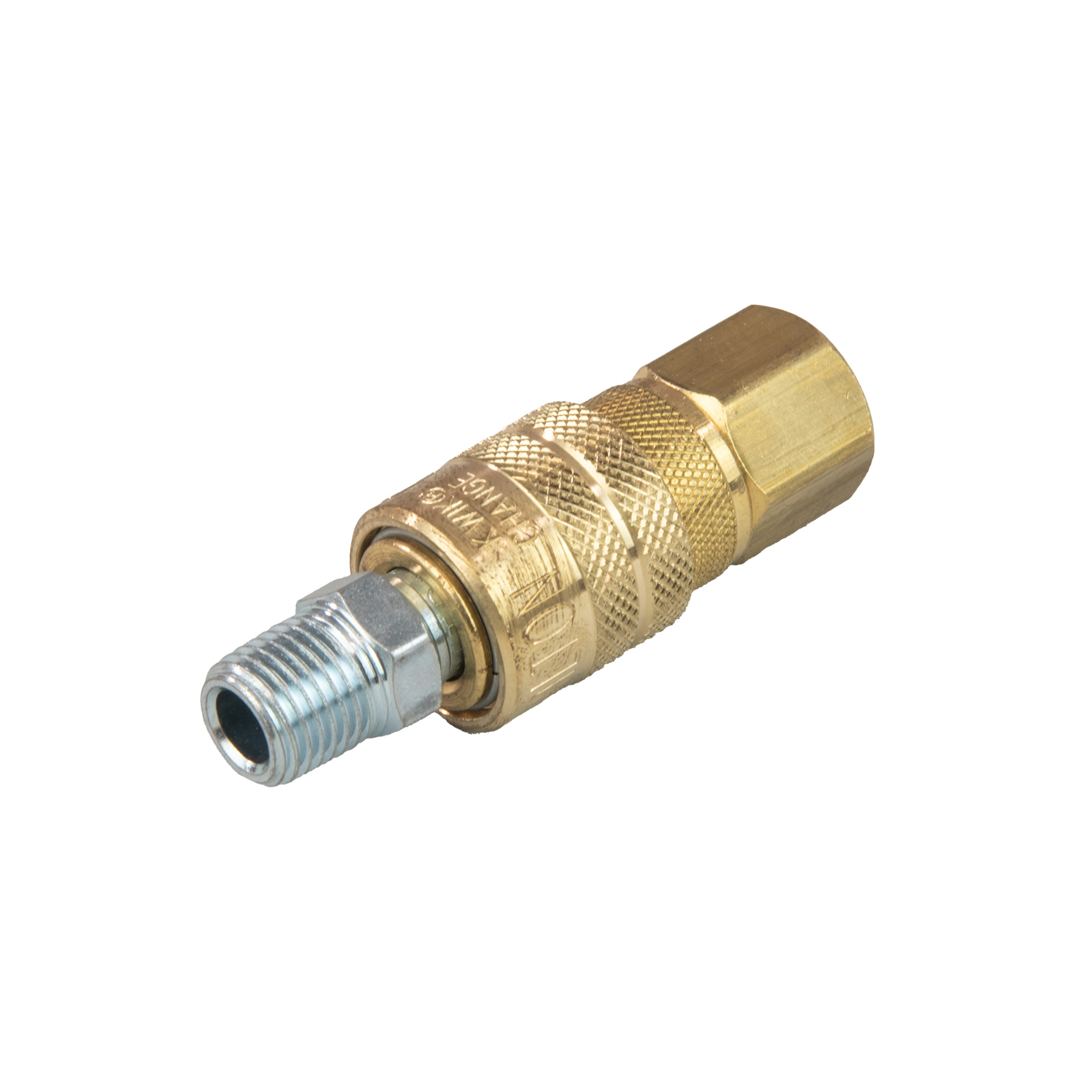

This Quick Change Coupler Assembly consists of (1) AS-0715 (Milton 715) 1/4″ FNPT Coupler and (1) AS-0727 (Milton 727) 1/4″ MNPT Plug. M-Style bodies are brass with brass sleeves. All M-Style plugs are case-hardened steel. Made up of a brass body, brass sleeve coupler and steel plug. With a 1/4″ basic flow size and air flow of 40 SCFM, this coupler and plug combination has a maximum pressure of 300 PSI and a Buna-N seal.

Maximum air flow of 40 standard cubic feet per minute
Maximum inlet pressure of 300 pounds per square inch
Maximum temperature of 250 degrees Fahrenheit
Air flow of 40 standard cubic feet per minute

M-Style quick change couplers and plugs will interchange with all Manufacturers who comply with the dimensional requirements of MIL SPEC MIL-C-4109.

As a Milton dealer for decades, SVI specializes in providing bulk pricing programs to Quick Lube franchisees, Tire Shop chain stores and others. To arrange for SVI to be your one-stop cost-saving shop, contact SVI today to develop your special program.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
