Inflator Gage

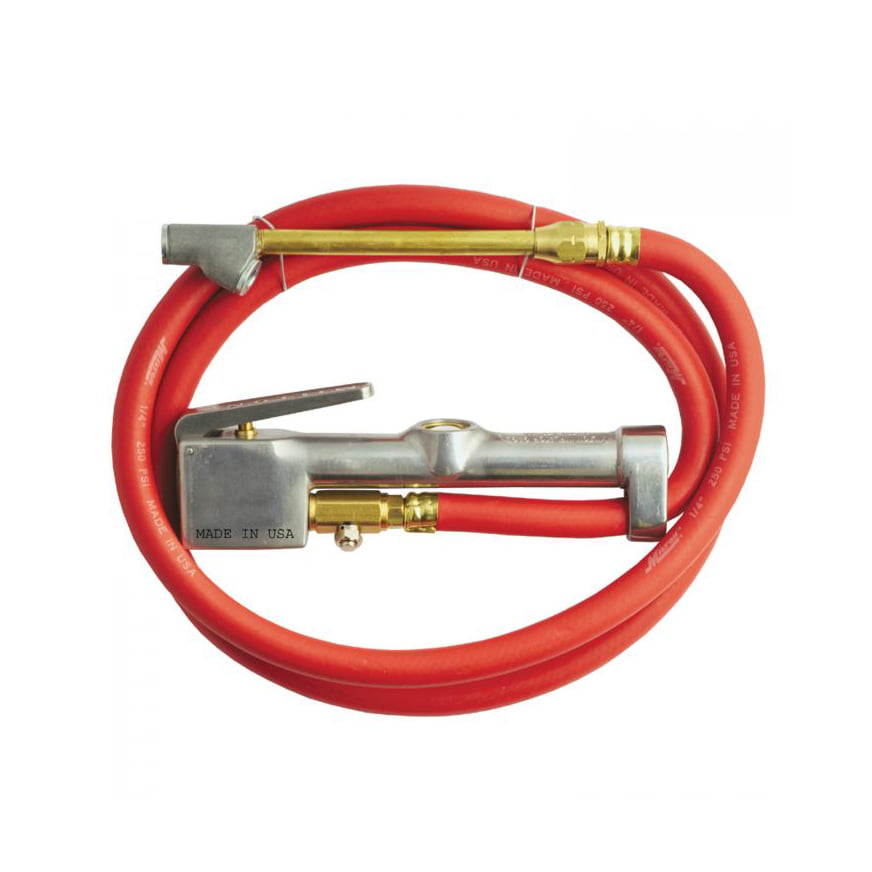

Milton Dual Head Straight Chuck Inflator Gauge

• Heavy Duty Construction
• Inflator Gauge with Viewing Window
• Includes a Deflator Valve
• Includes a 5 Foot Long Hose
• Pressure Range of 10 to 160 PSI in 2 lb increments
• ¼ NPT Inlet
• Full Swivel Chuck Head

This heavy duty dual head straight chuck inflator gauge provides for long life even under extreme use and conditions. Perfect for high pressure applications, this inflator gauge offers a pressure range of 10-160 PSI. The dual heads allow for easy access into inner duals. Equipped with a magnified viewing window, this tire inflator gauge has a full swivel chuck and deflator valve. Gauge and valve cartridges are both replaceable. 1/4″ NPT air inlet. Meets OSHA regulation 1910.177.

As a Milton dealer for decades, SVI specializes in providing bulk pricing programs to Quick Lube franchisees, Tire Shop chain stores and others. To arrange for SVI to be your one-stop cost-saving shop, contact SVI today to develop your special program.

INSTRUCTIONS FOR USE:

• If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tire’s Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure it’s not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.
• Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.
